Home >> Lexus >> 2004 >> ES 330 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> Throttle Body ASSY (3MZ-FE) >> Components

Throttle Body ASSY (3MZ-FE): Components

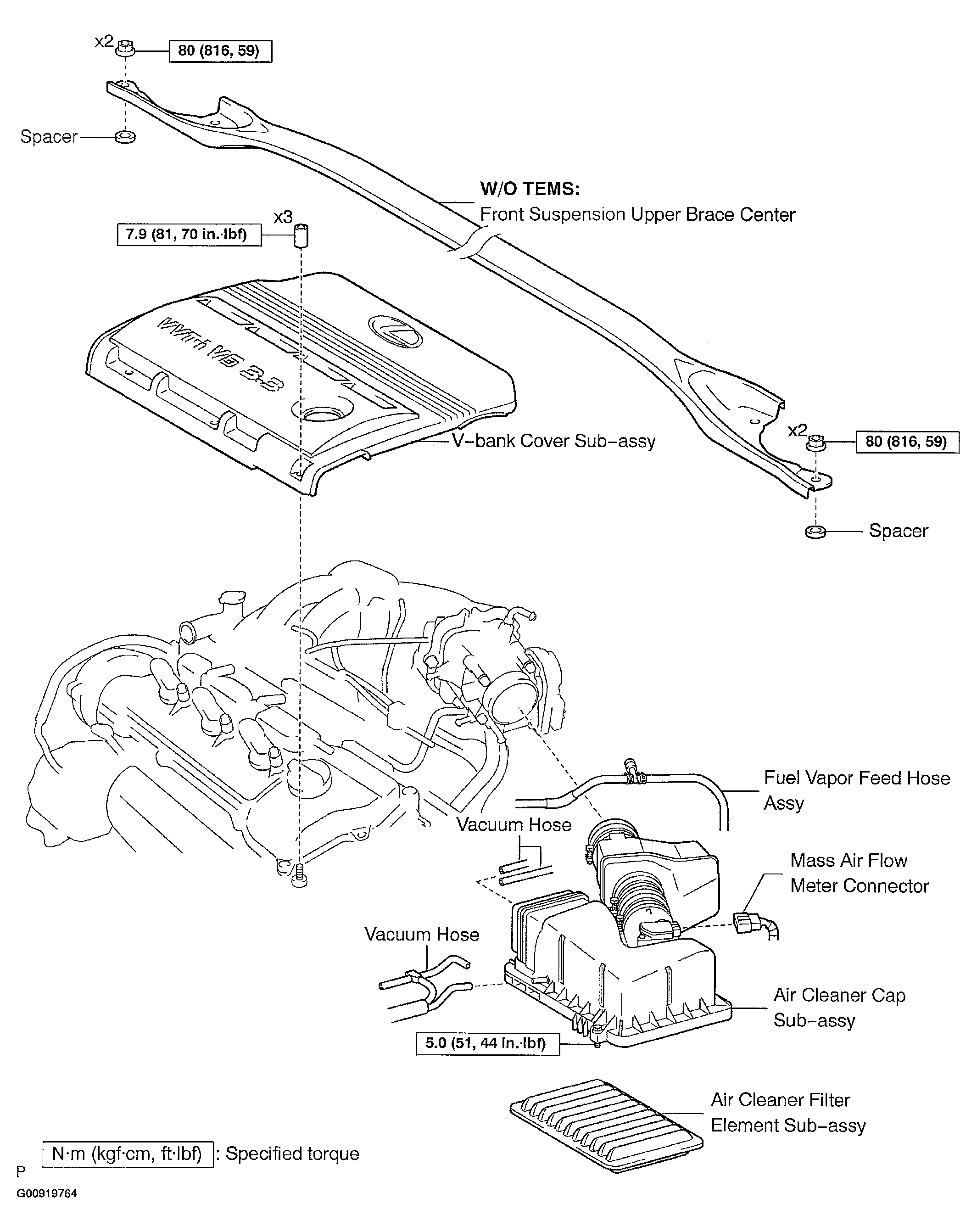

Fig 1: Identifying Throttle Body Assy (3MZ-FE) Components (1 Of 2)
G00919764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

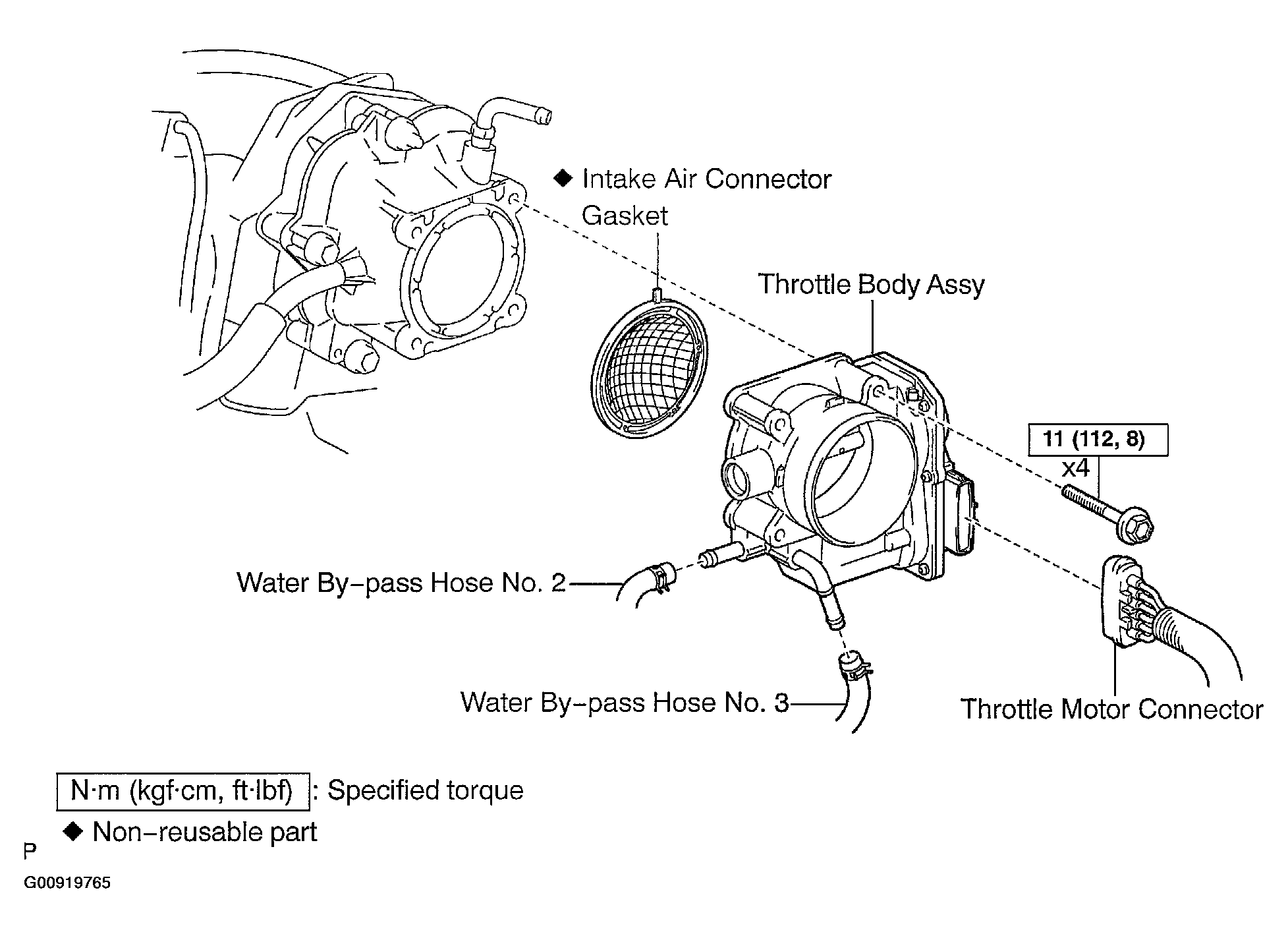

Fig 2: Identifying Throttle Body Assy (3MZ-FE) Components (2 Of 2)
G00919765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
