Section 170 (Transfer Case): Components

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

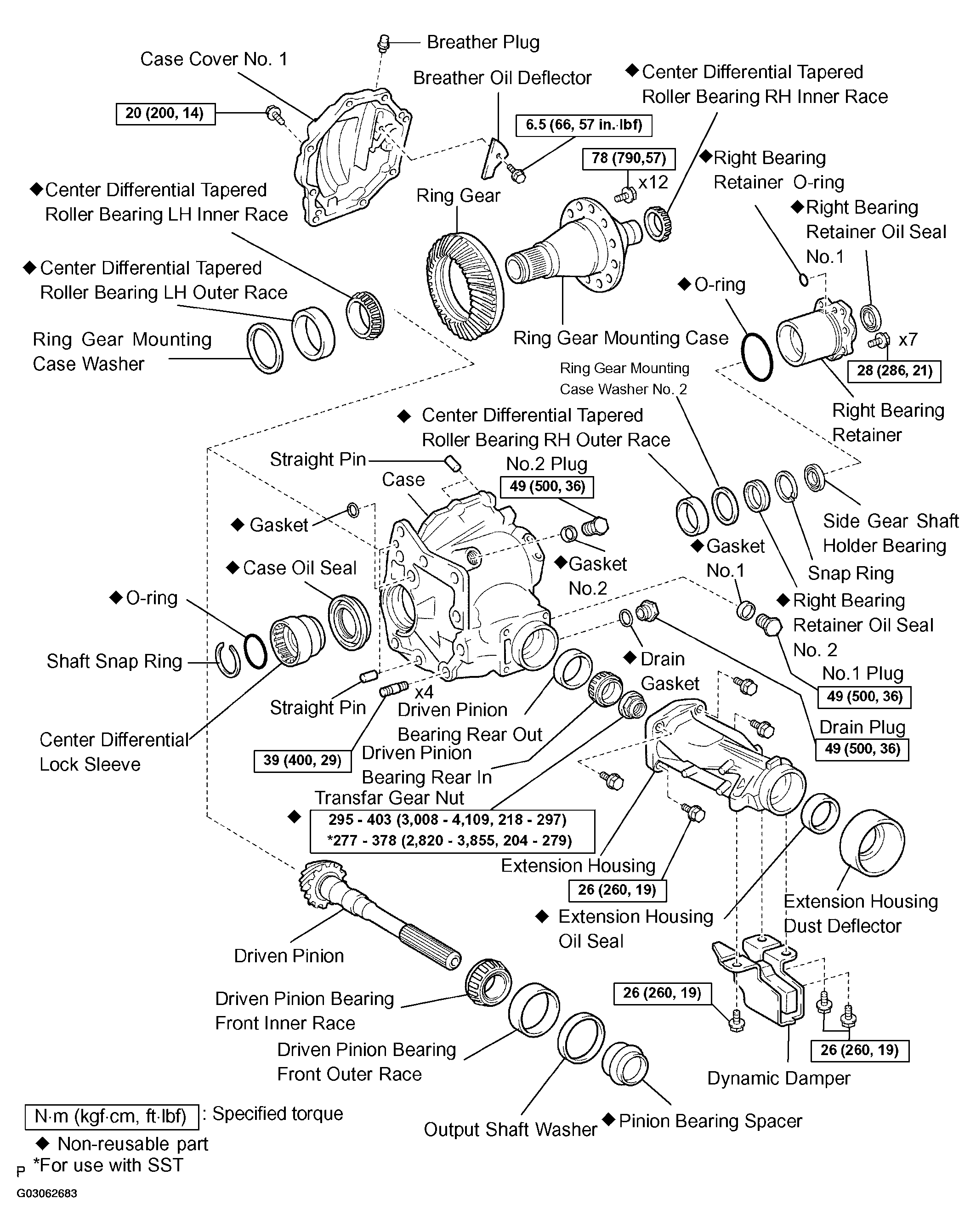

Fig 1: Exploded View Of Transfer (4WD) Components
G03062683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
