How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure.

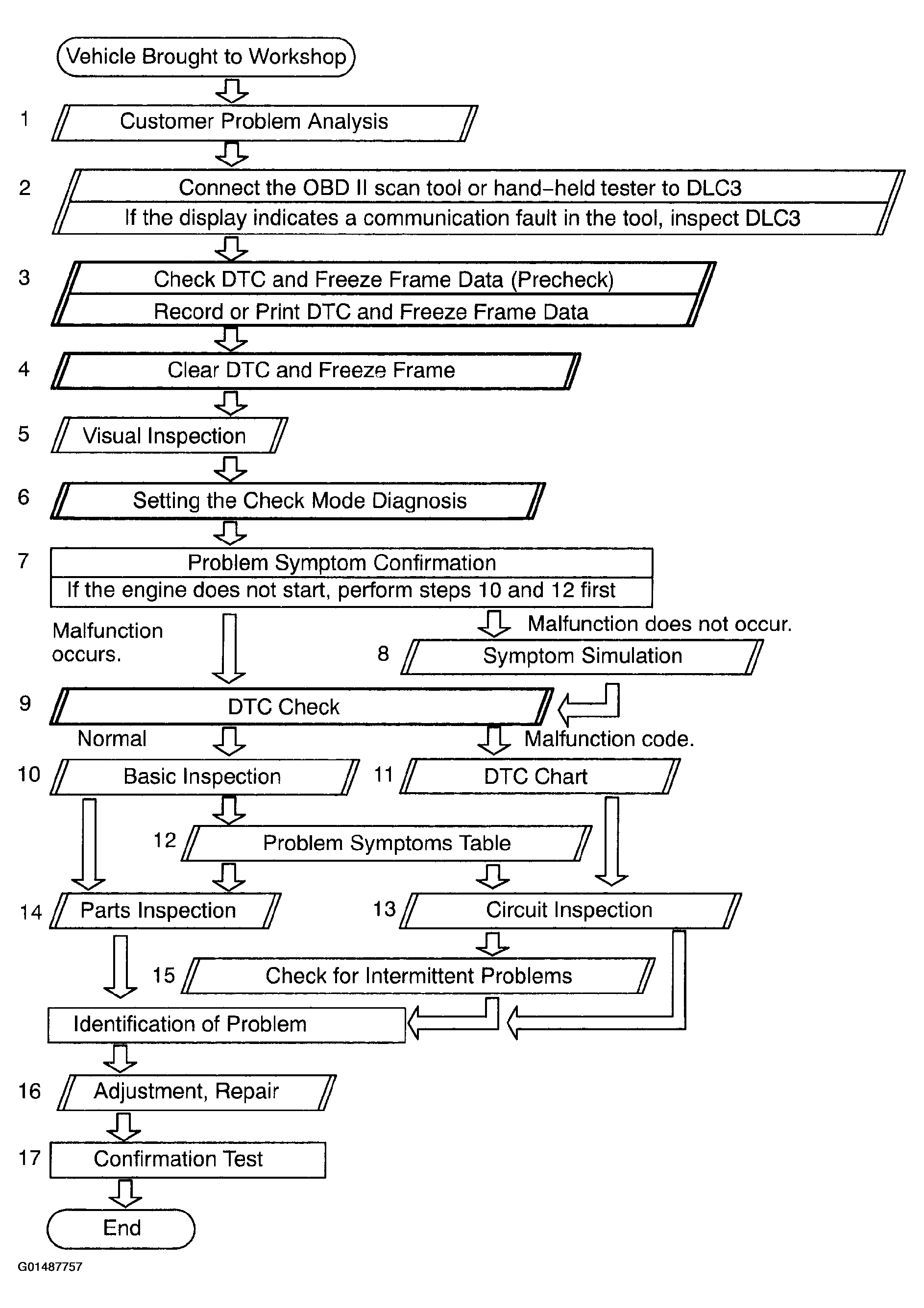

Fig 1: Troubleshooting Flow Chart

G01487757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
