Outside Rear View Mirror: Installation

INSTALL OUTSIDE REAR VIEW MIRROR
Install the outside rear view mirror with the 3 bolts, then connect the connector.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
INSTALL TWEETER SPEAKER
1. Connect the claw and set the tweeter speaker to the door.
2. Connect the connector.
INSTALL DOOR FRAME GARNISH
Install the door frame garnish with the nut.

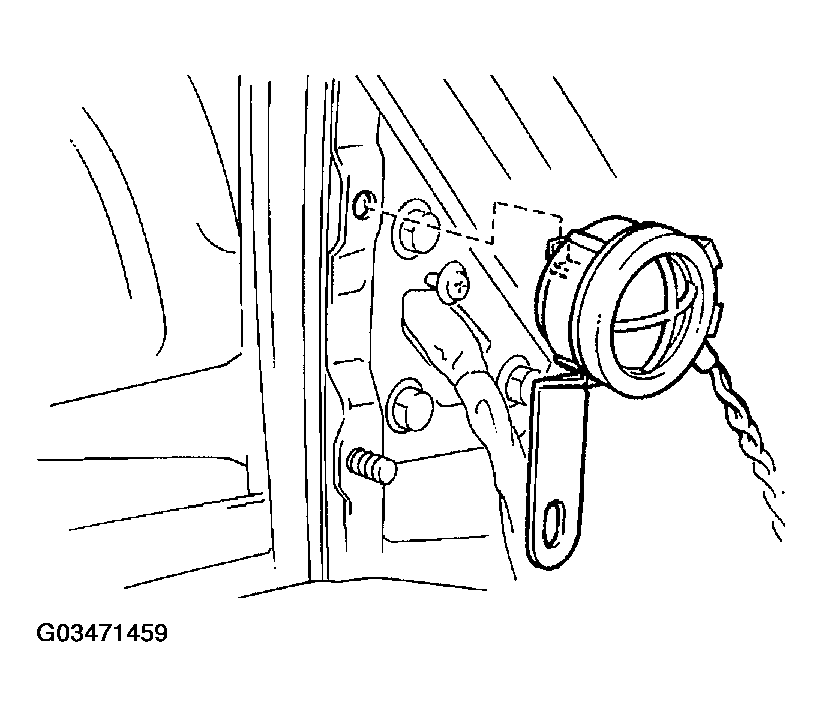

Fig 1: Installing Speaker
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DOOR TRIM
1. Connect the connectors.
2. Install the 2 cables to the door inside handle.

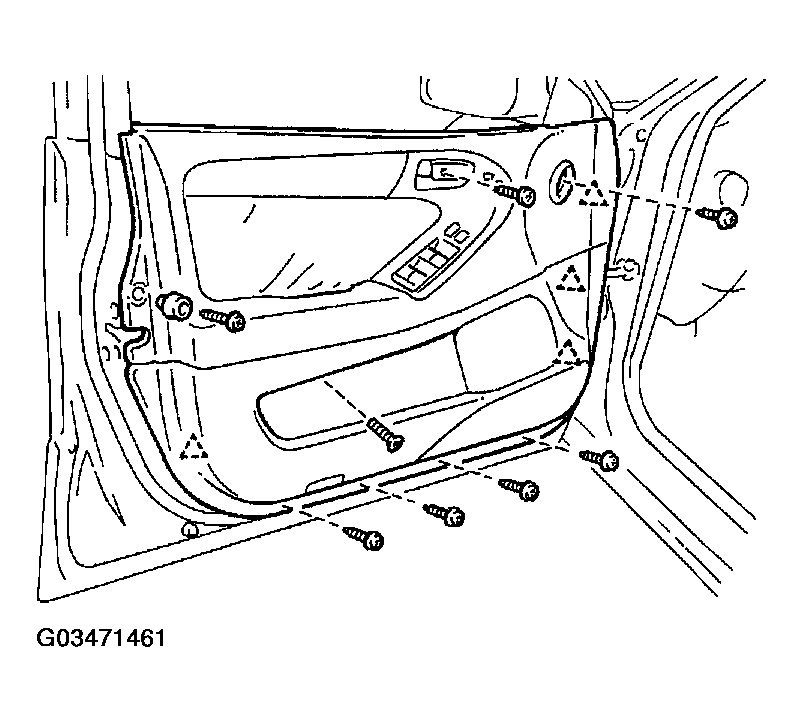

  Fig 2: Installing Door Trim
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the door trim with the 8 screws.
INSTALL DOOR INSIDE HANDLE BEZEL COVER

Fig 3: Installing Door Inside Handle Bezel Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
