Home >> Lexus >> 2004 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine (3UZ-FE) - Diagnostics >> How To Proceed With Troubleshooting

How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure.

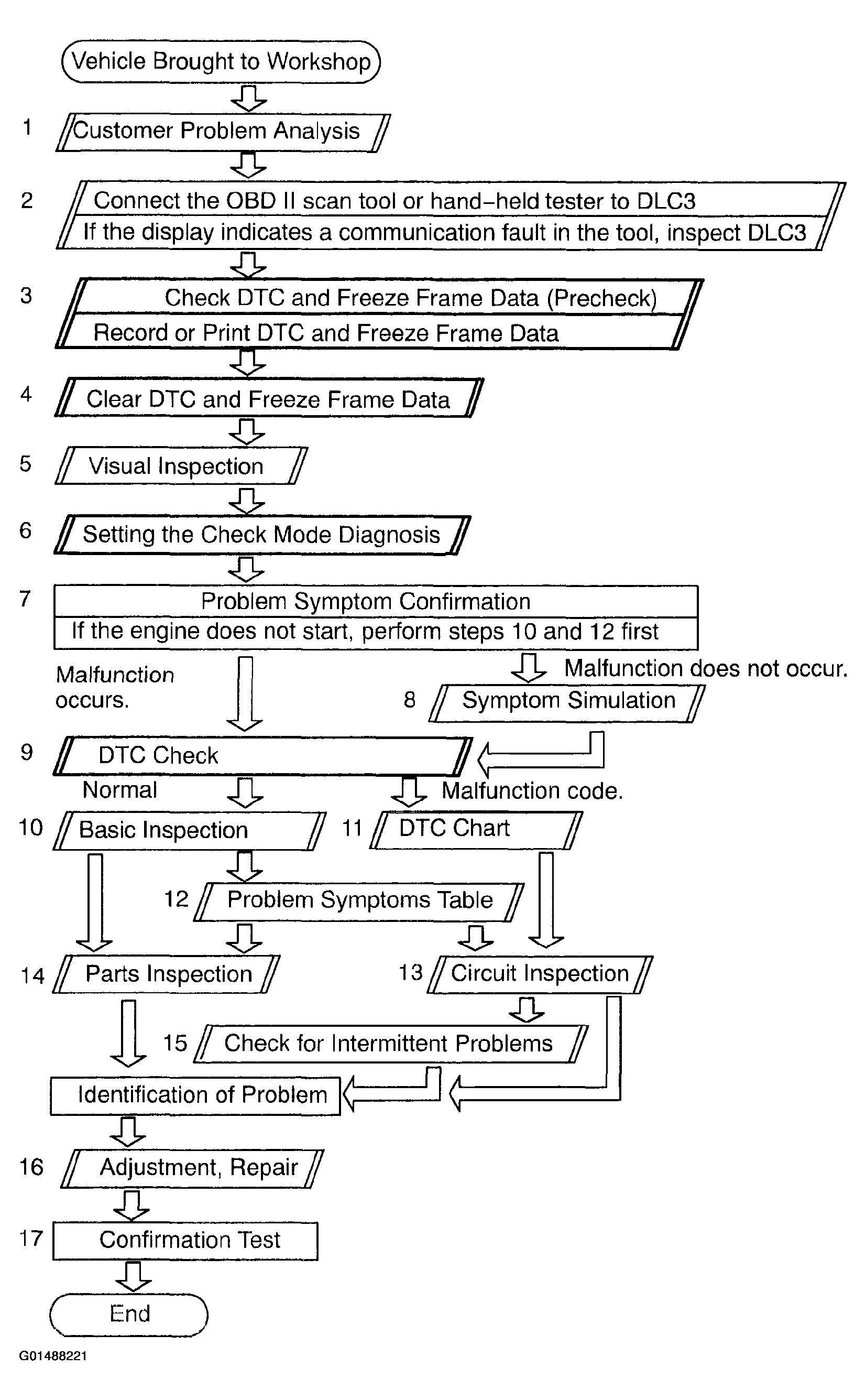

Fig 1: Troubleshooting Procedure Chart

G01488221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
