Home >> Lexus >> 2004 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Mirror Control System >> Location

Power Mirror Control System: Location

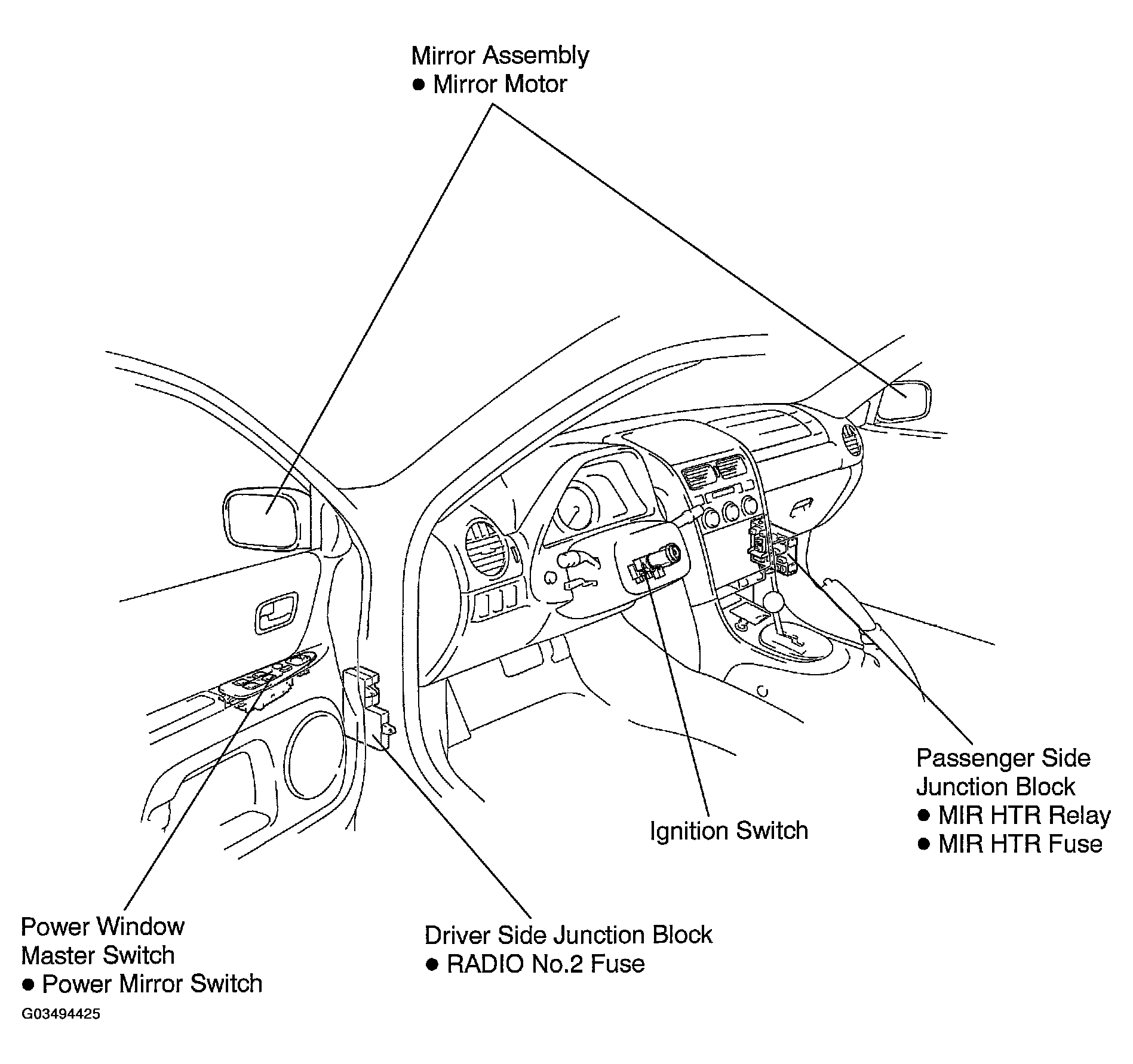

Fig 1: Locating Power Mirror Control System Components
G03494425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
