Combination Meter: Circuit

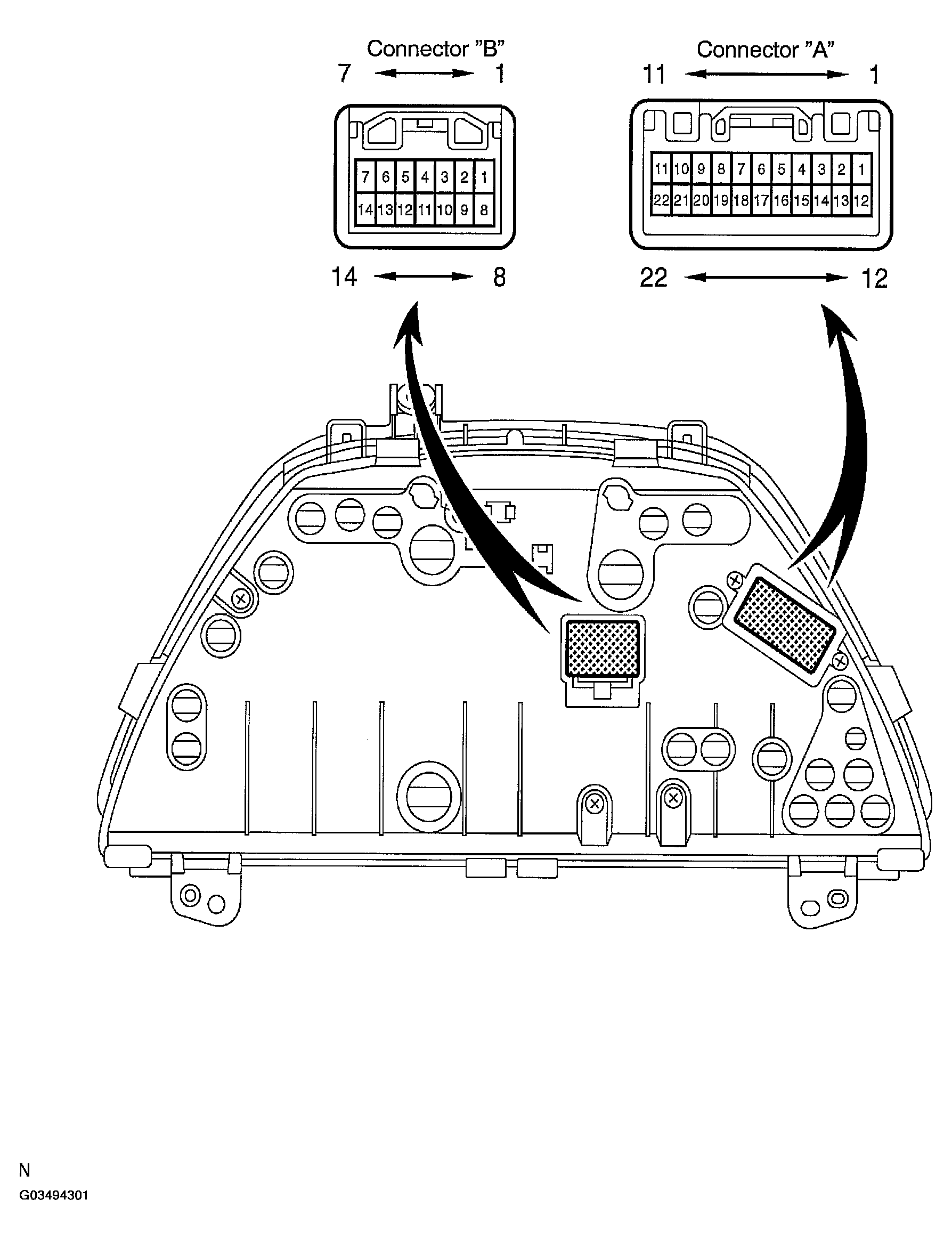

Fig 1: Identifying Combination Meter Circuit (1 Of 3)
G03494301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

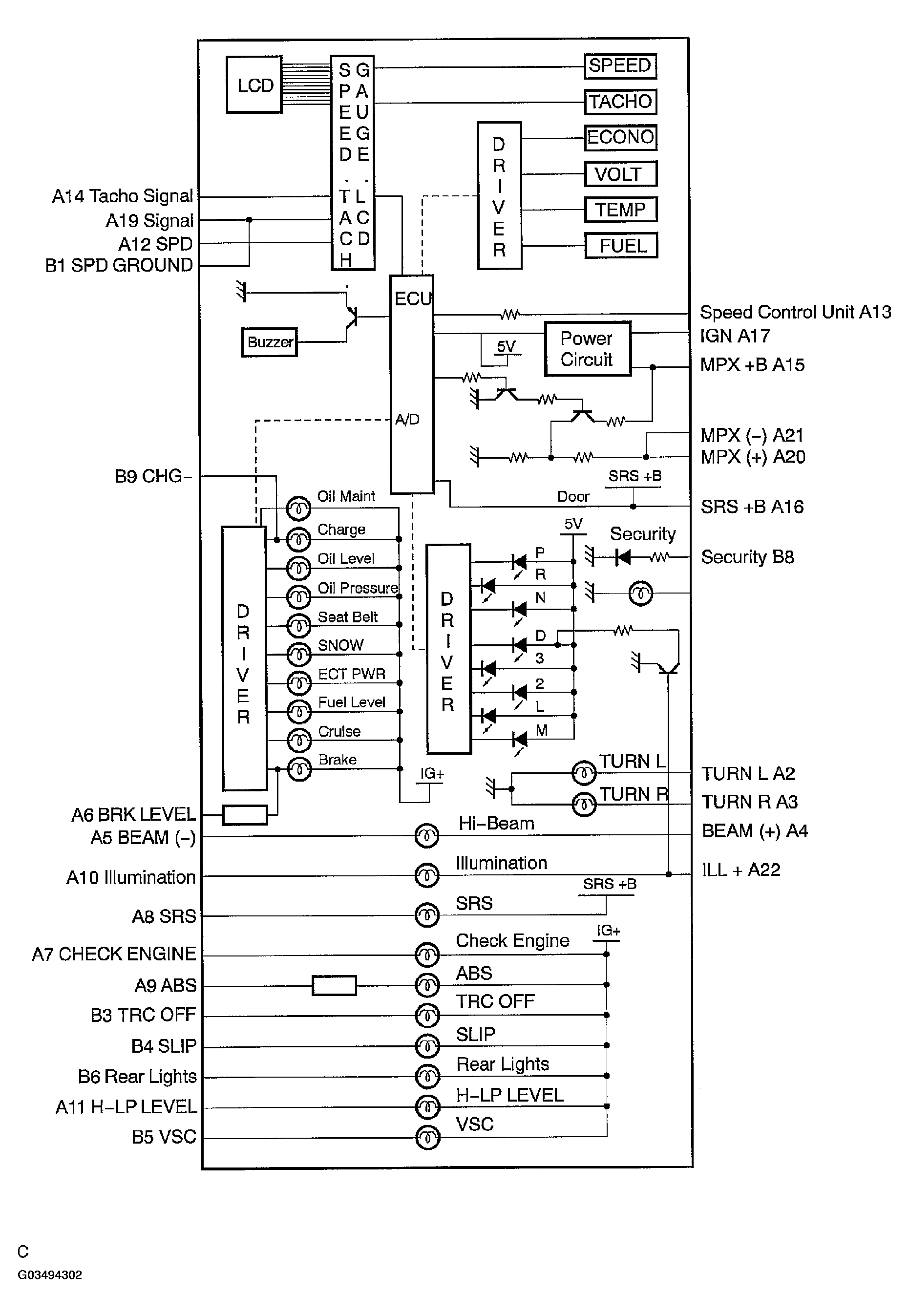

Fig 2: Identifying Combination Meter Circuit (2 Of 3)
G03494302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

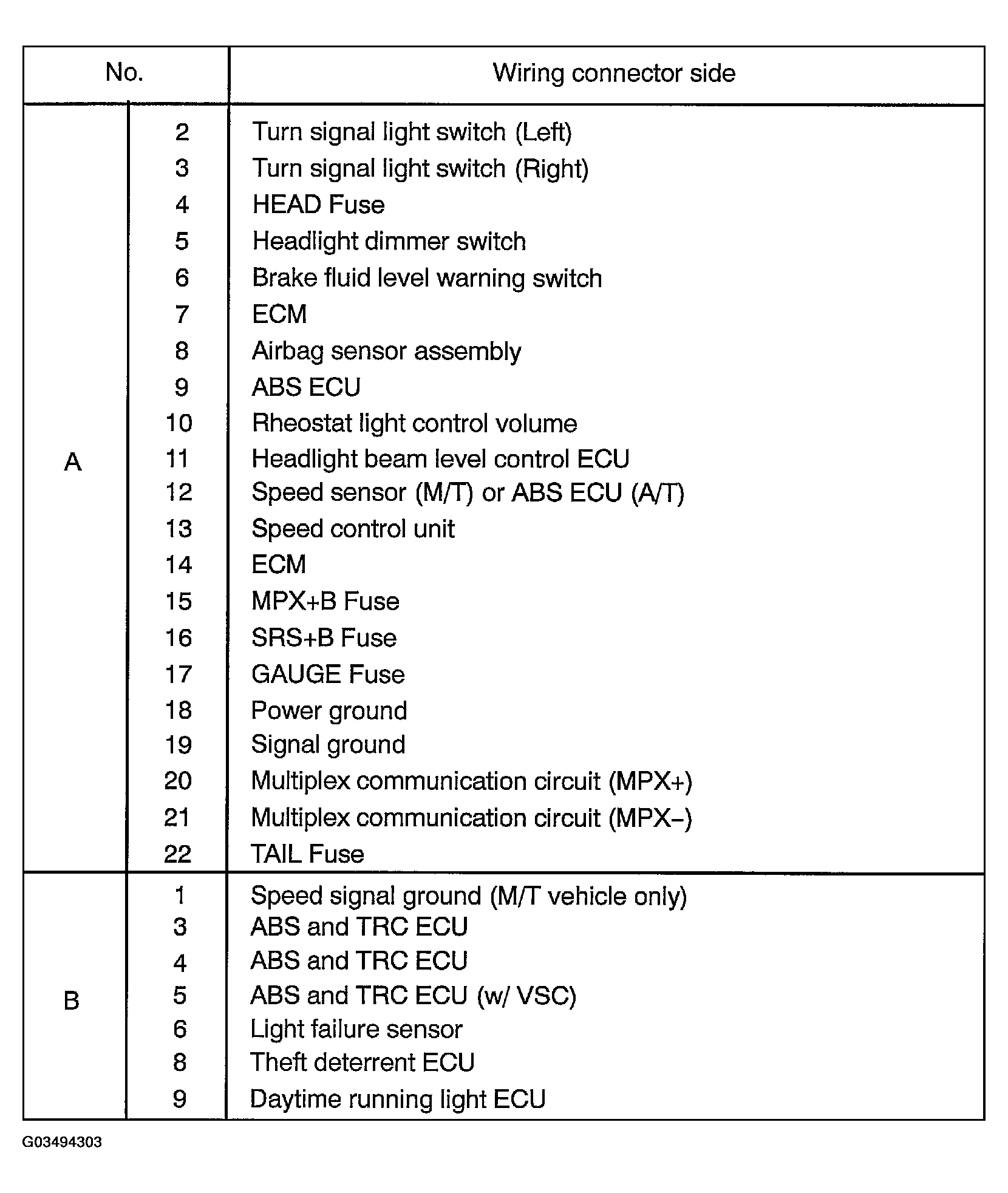

Fig 3: Identifying Combination Meter Circuit (3 Of 3)
G03494303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
