Camshaft Timing Oil Control Valve: Components

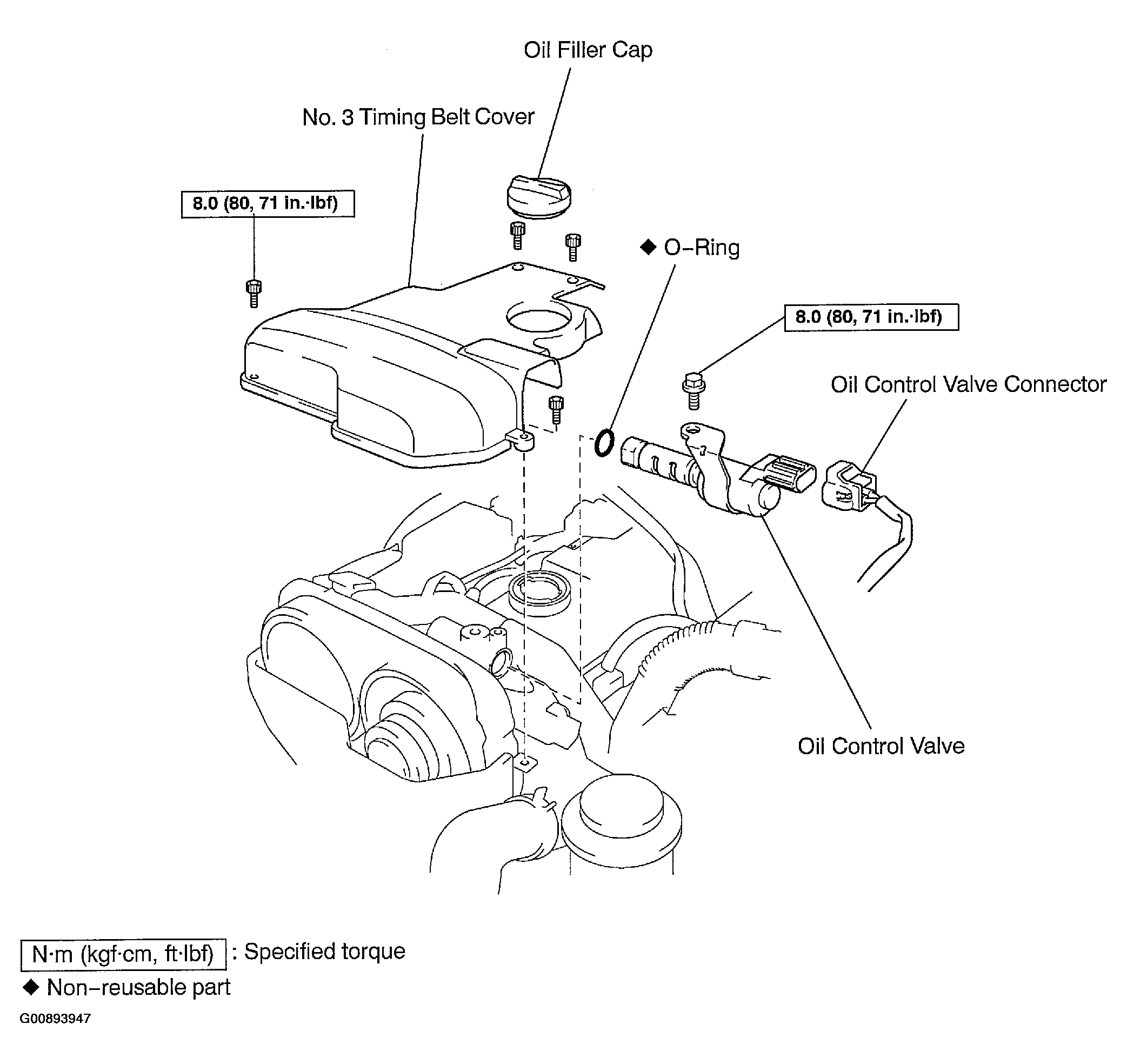

Fig 1: Identifying Components Of Camshaft Timing Oil Control Valve

G00893947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
