Fuel Pressure Regulator: Components

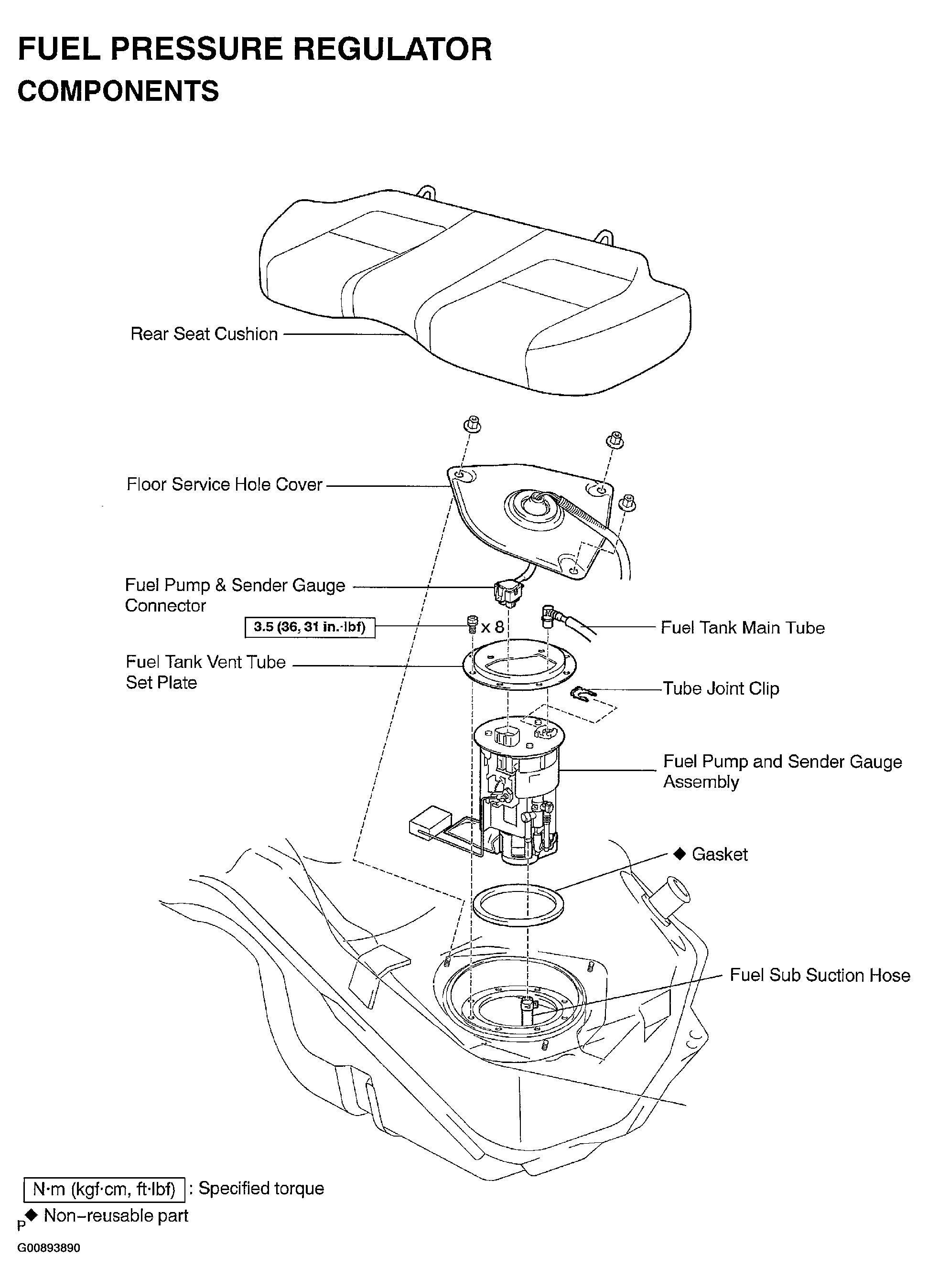

Fig 1: Identifying Components Of Fuel Pressure Regulator (1 Of 2)
G00893890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

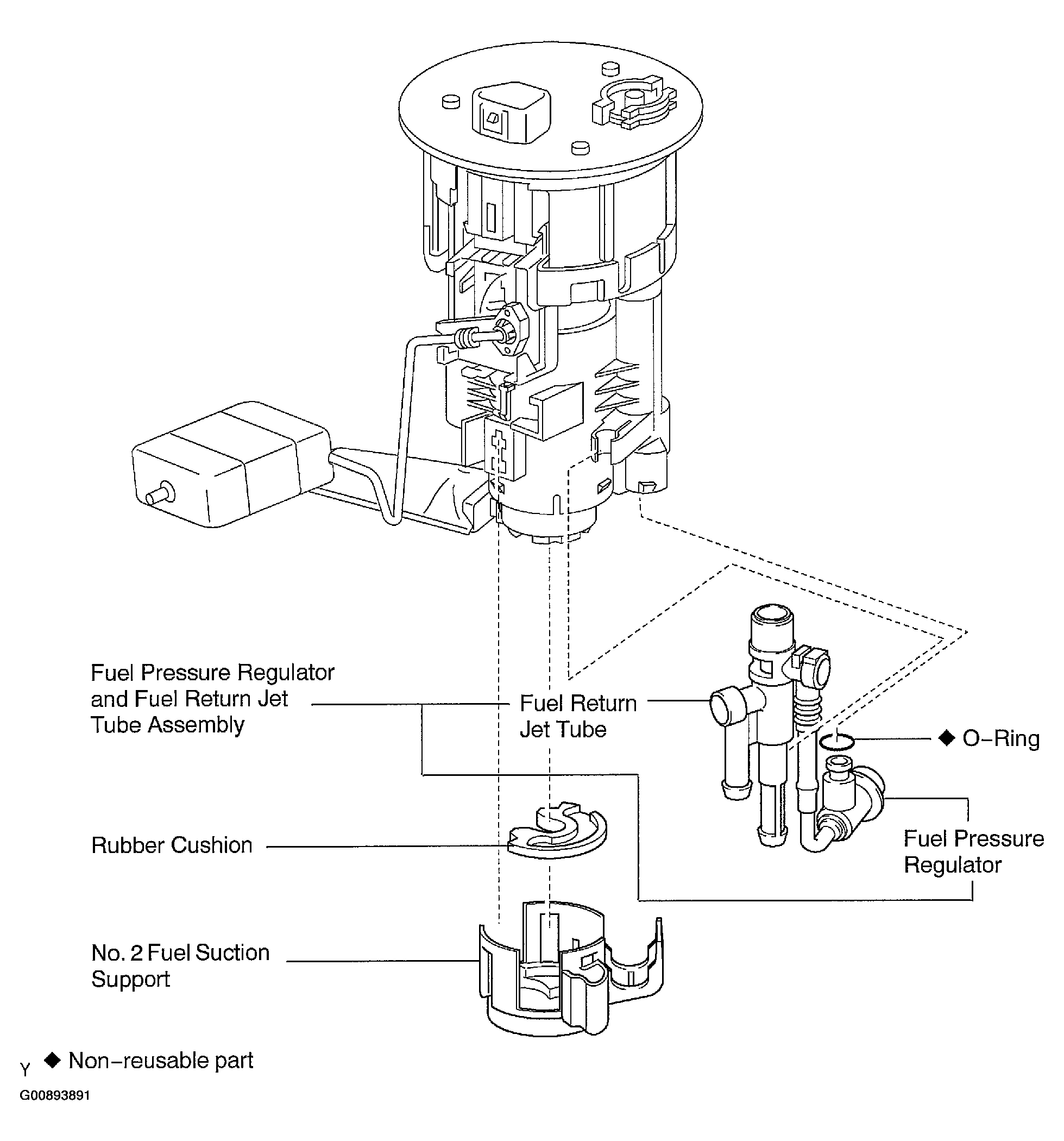

Fig 2: Identifying Components Of Fuel Pressure Regulator (2 Of 2)
G00893891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
