Home >> Lexus >> 2004 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> SFI >> Injector >> Components

Fuel Delivery: SFI: Injector: Components

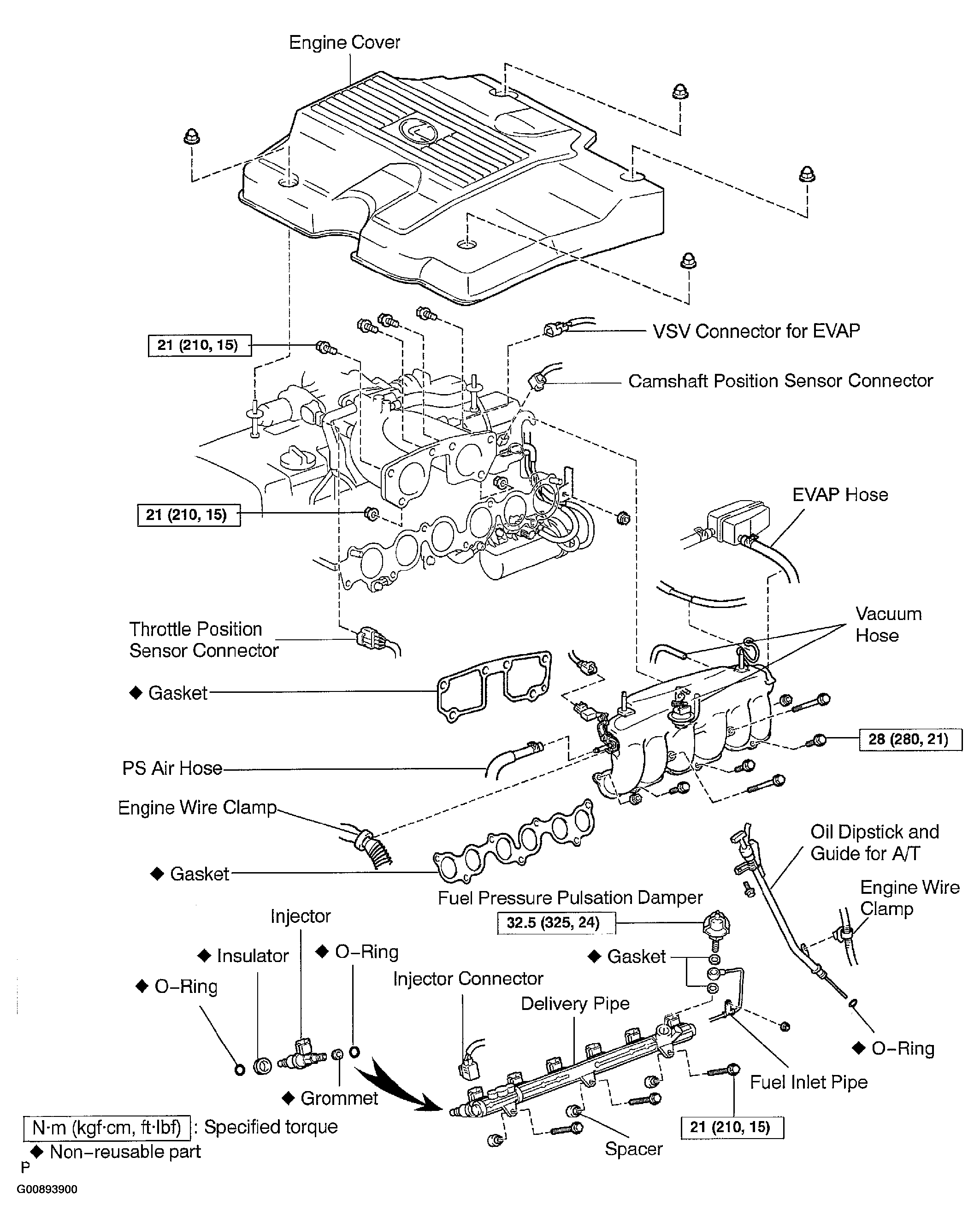

Fig 1: Identifying Components Of Engine
G00893900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
