Home >> Lexus >> 2004 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System >> Tilt Steering Column >> Components

Tilt Steering Column: Components

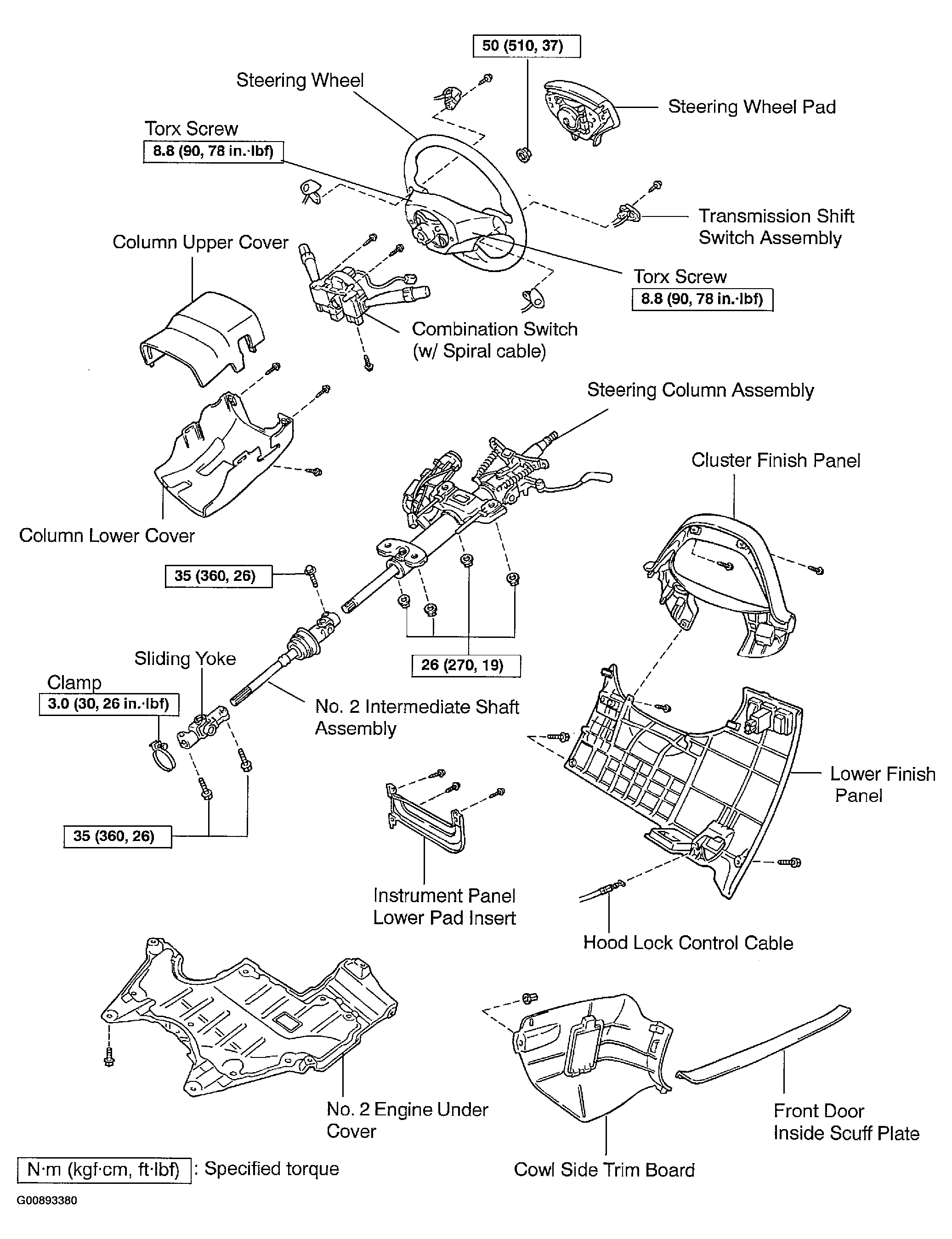

Fig 1: Identifying Tilt Steering Column Components (1 Of 2)
G00893380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

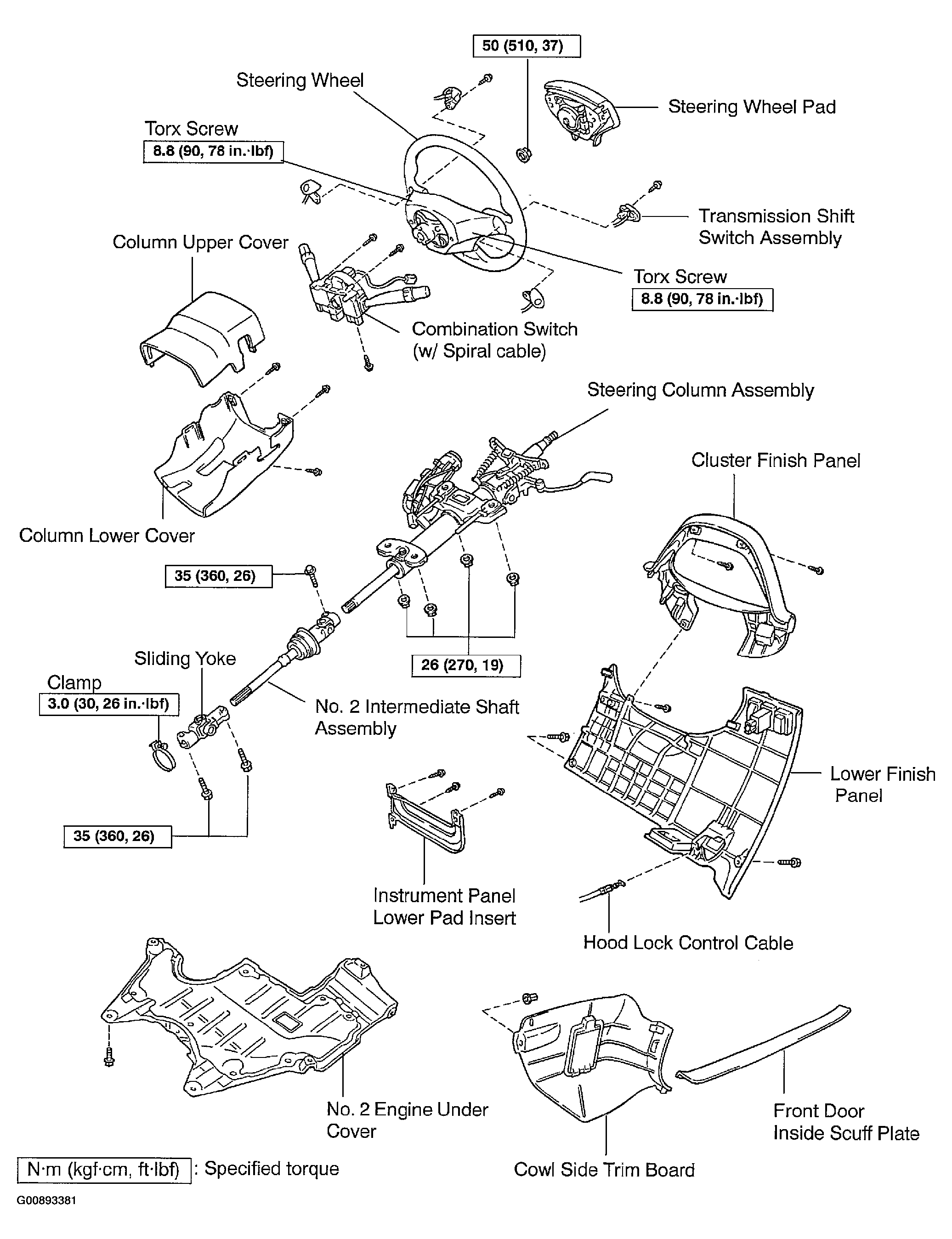

Fig 2: Identifying Tilt Steering Column Components (2 Of 2)
G00893381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
