Automatic Transmission System: Operation

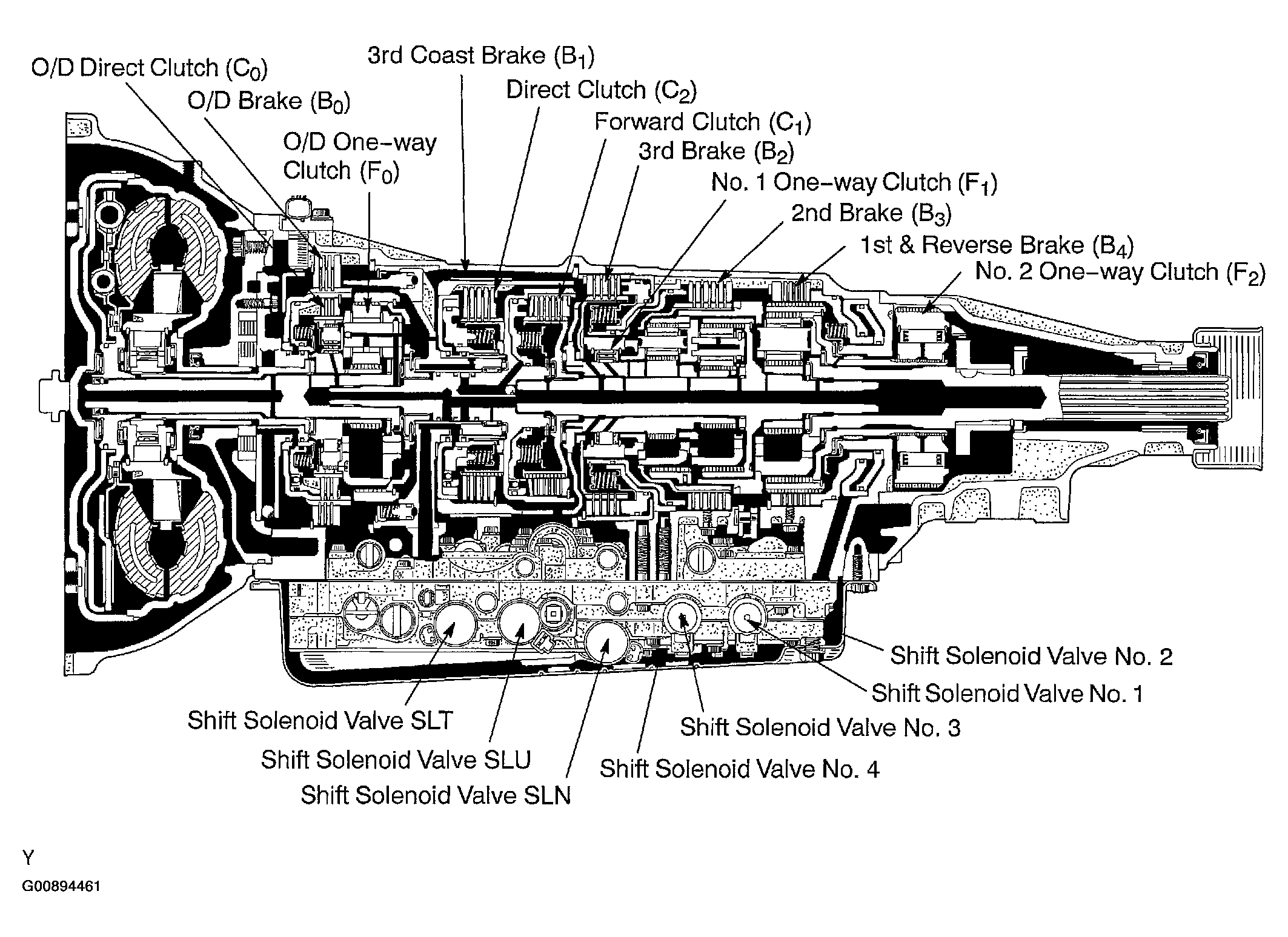

Fig 1: Automatic Transmission Operation Components
G00894461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

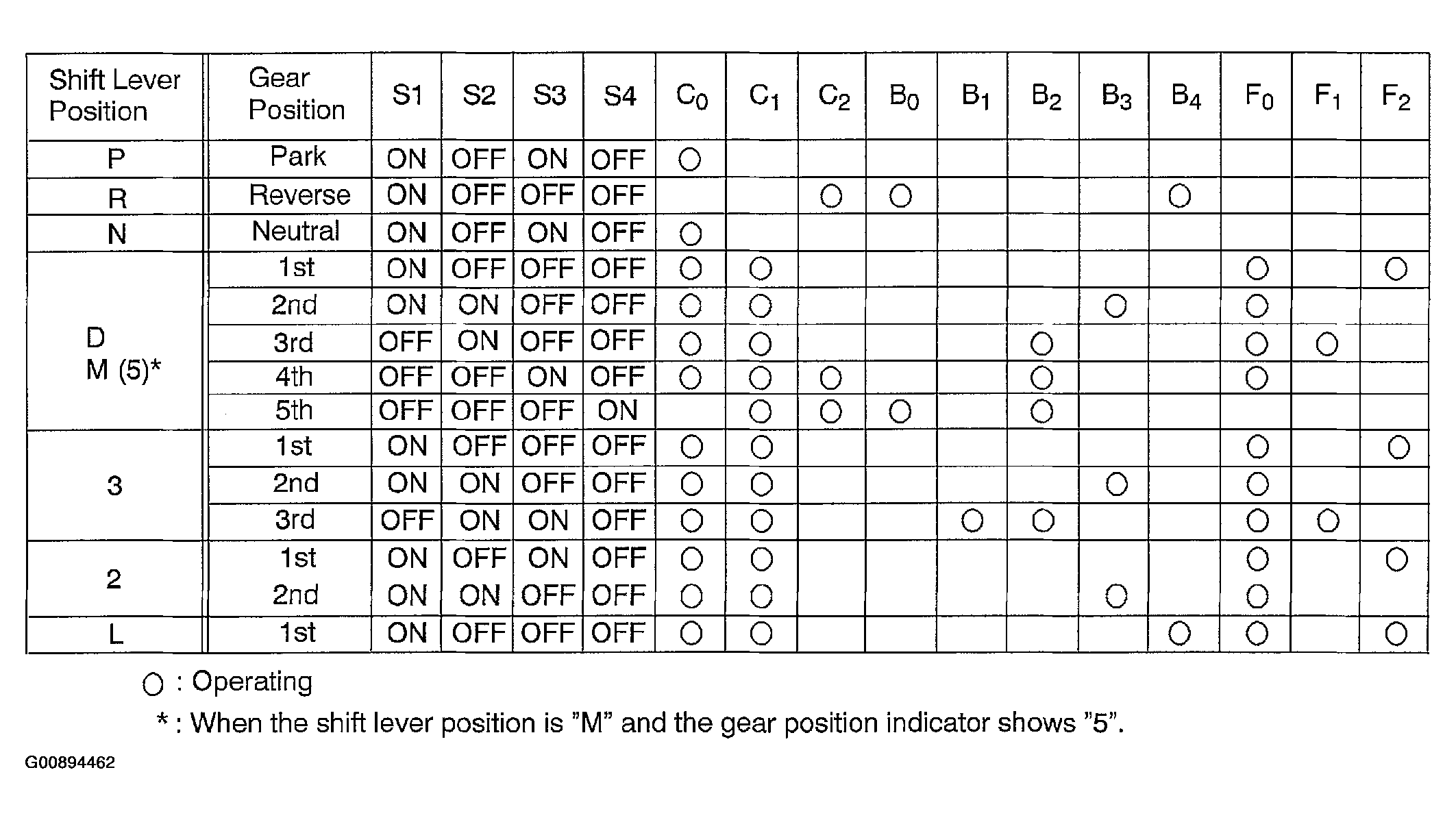

Fig 2: Automatic Transmission Operation Table
G00894462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
