Front Seat: Components

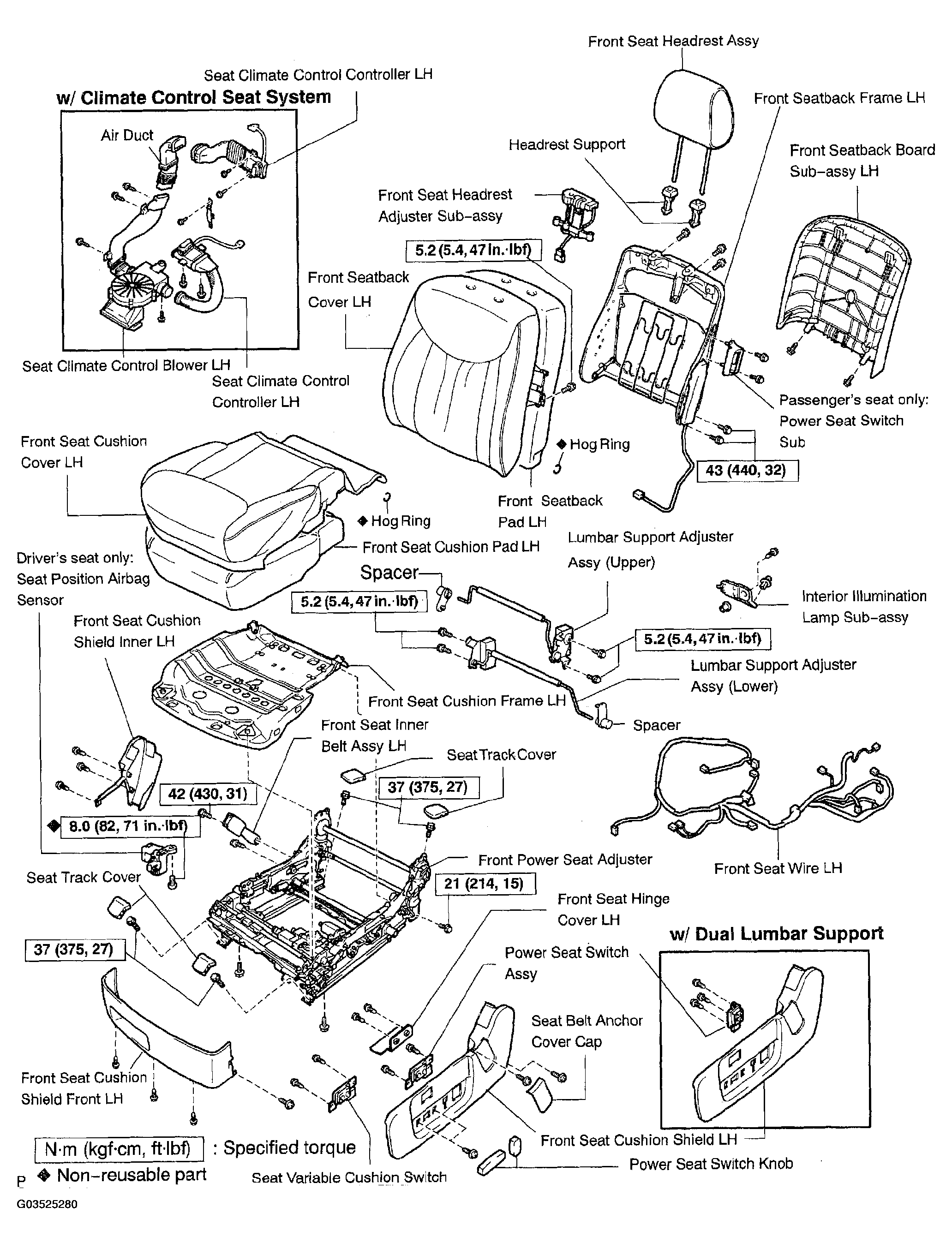

Fig 1: Exploded View Of Front Seat Components And Torque Specifications (1 Of 2)
G03525280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

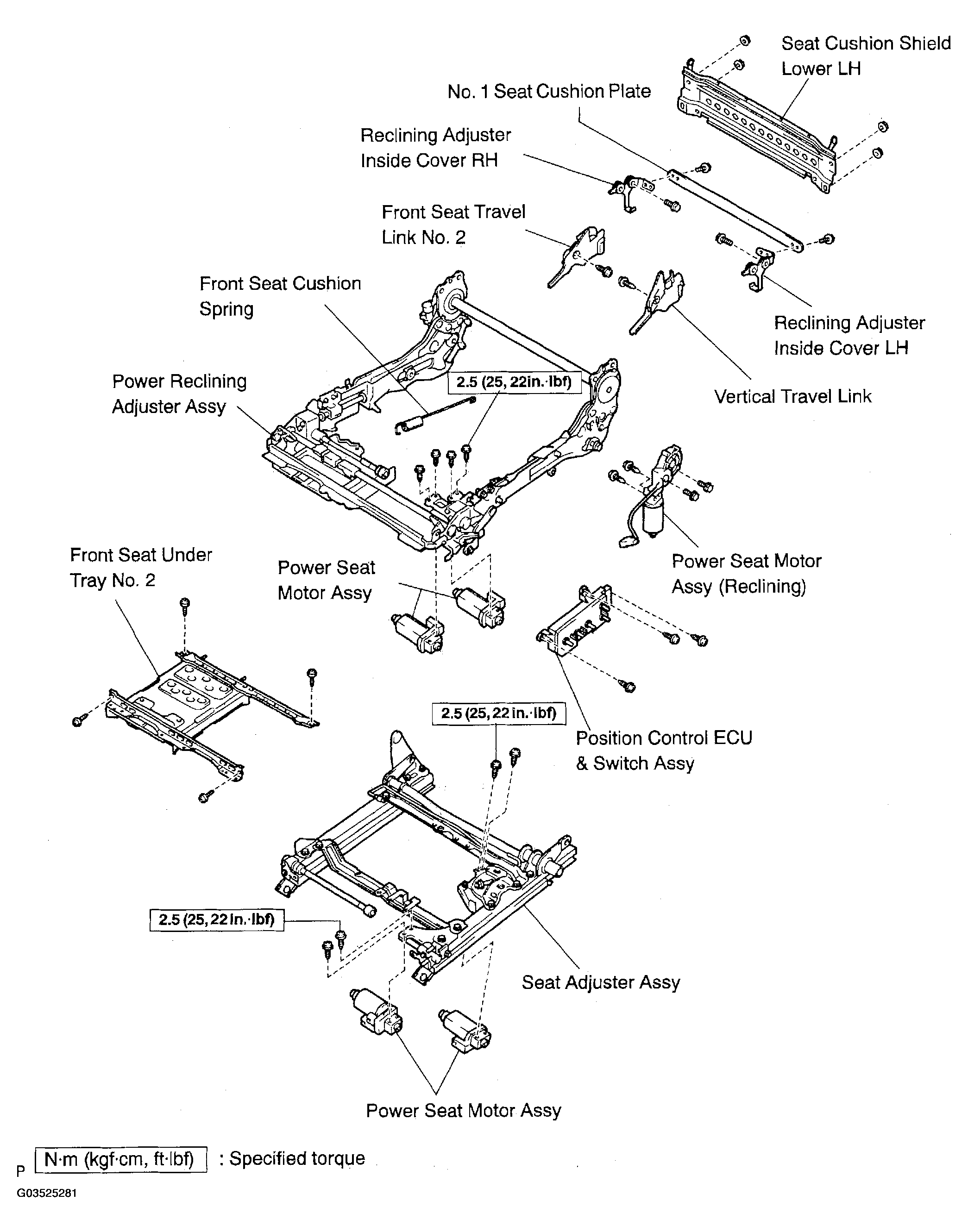

Fig 2: Exploded View Of Front Seat Components And Torque Specifications (2 Of 2)
G03525281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
