Exhaust Pipe ASSY: Components

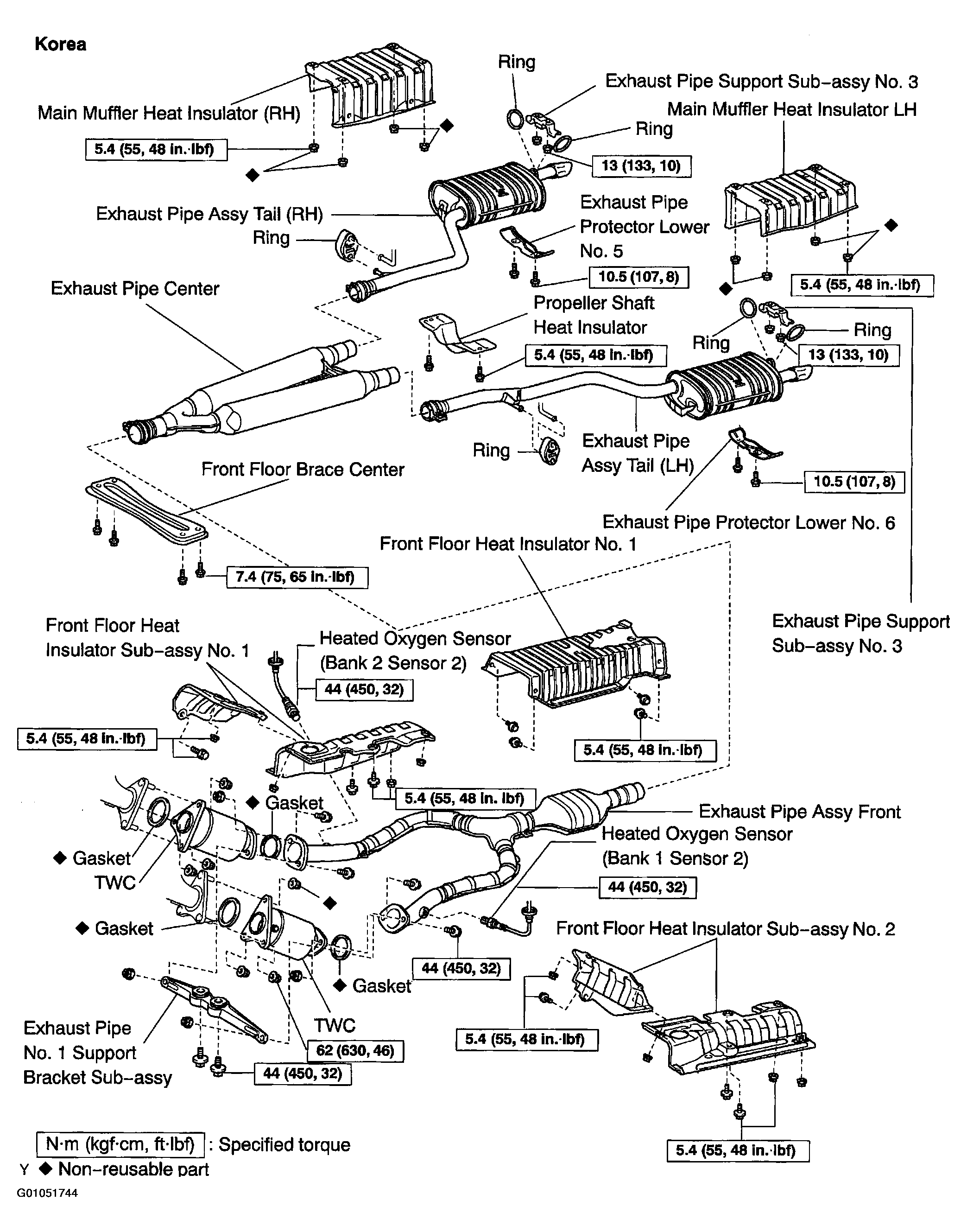

Fig 1: Exploded View Of Exhaust Pipe Assy Components(1 Of 2)
G01051744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

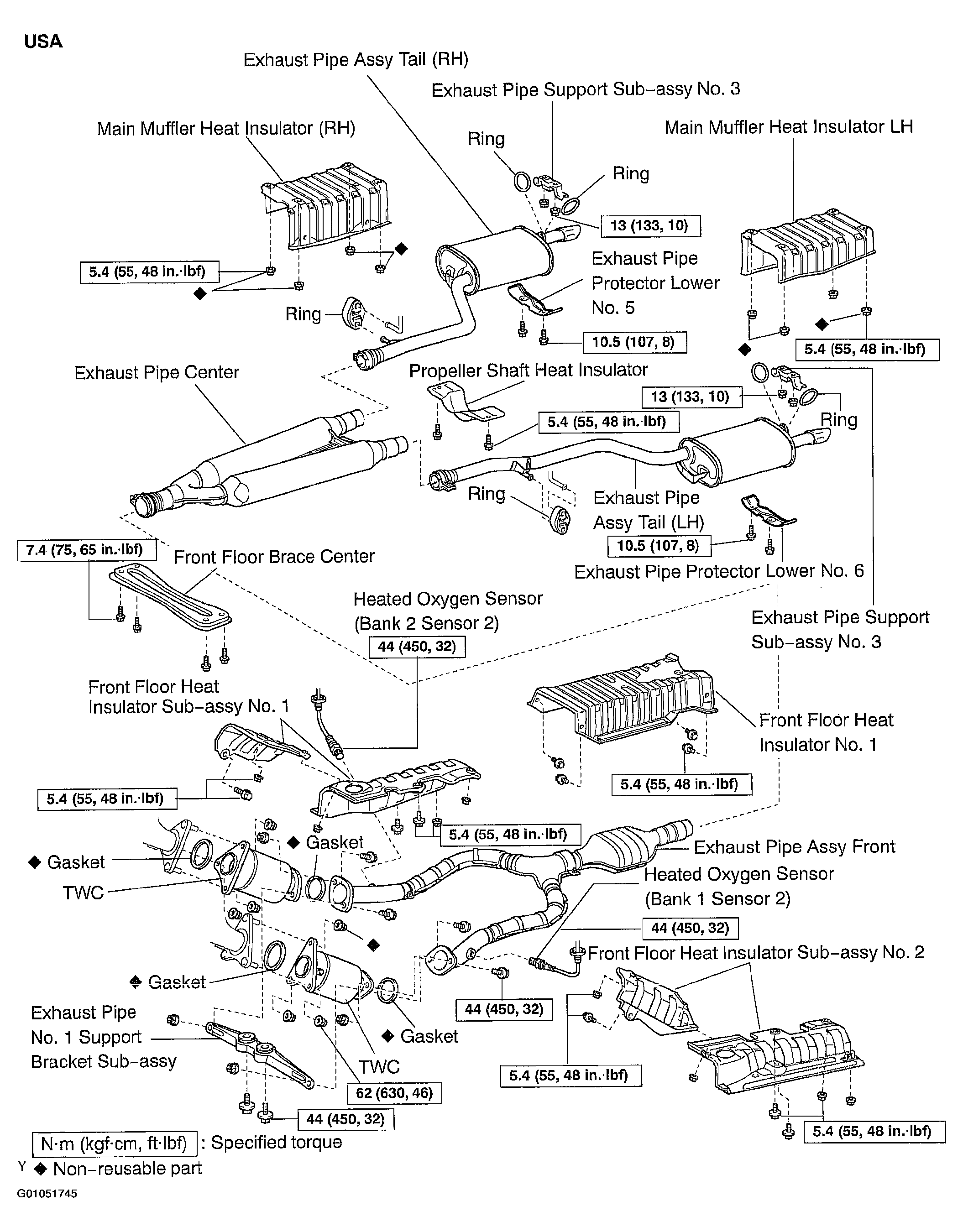

Fig 2: Exploded View Of Exhaust Pipe Assy Components(2 Of 2)
G01051745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
