Oil Pump ASSY: Components

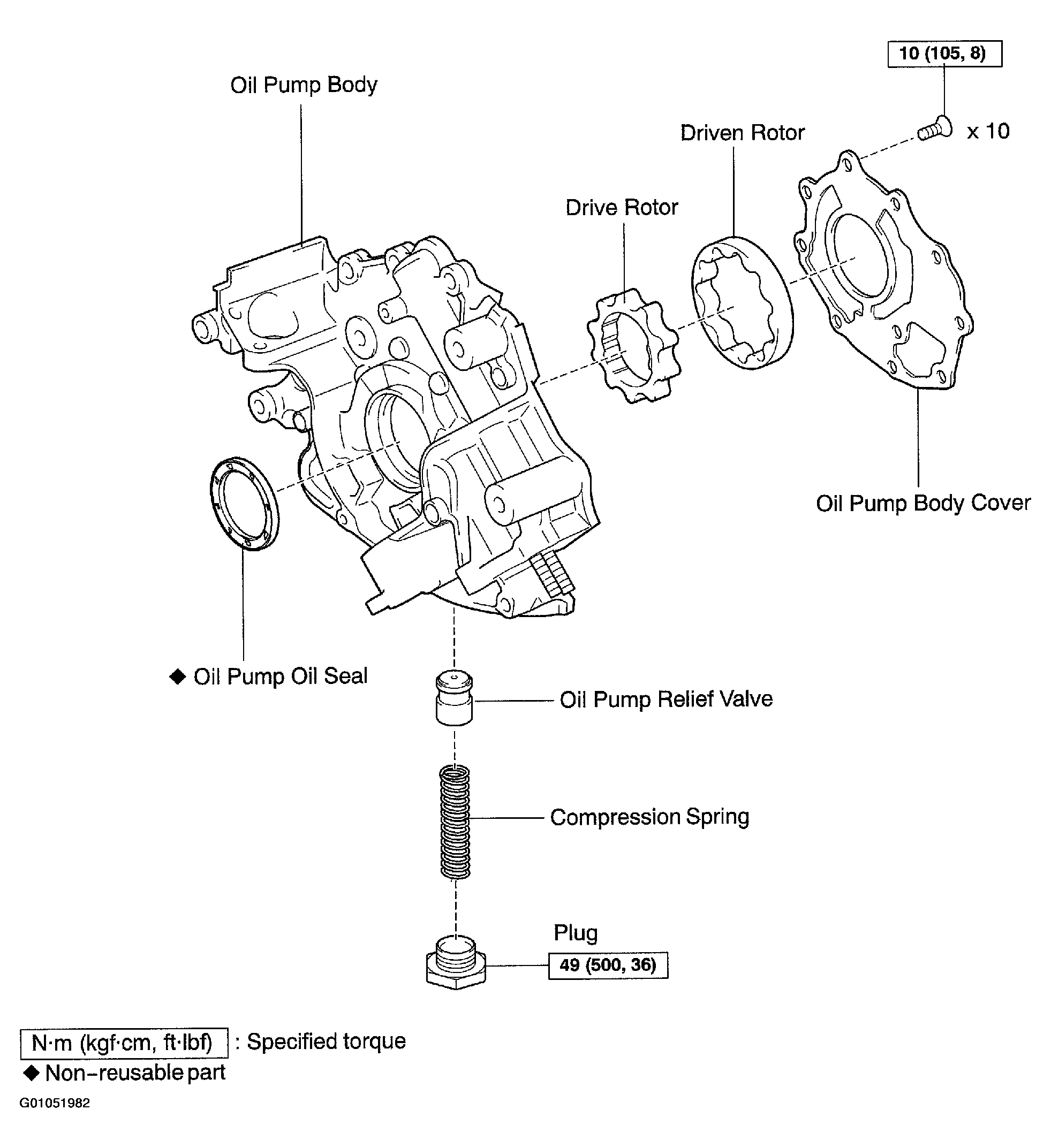

Fig 1: Identifying Oil Pump Assy Components And Its Tightening Torque (1 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

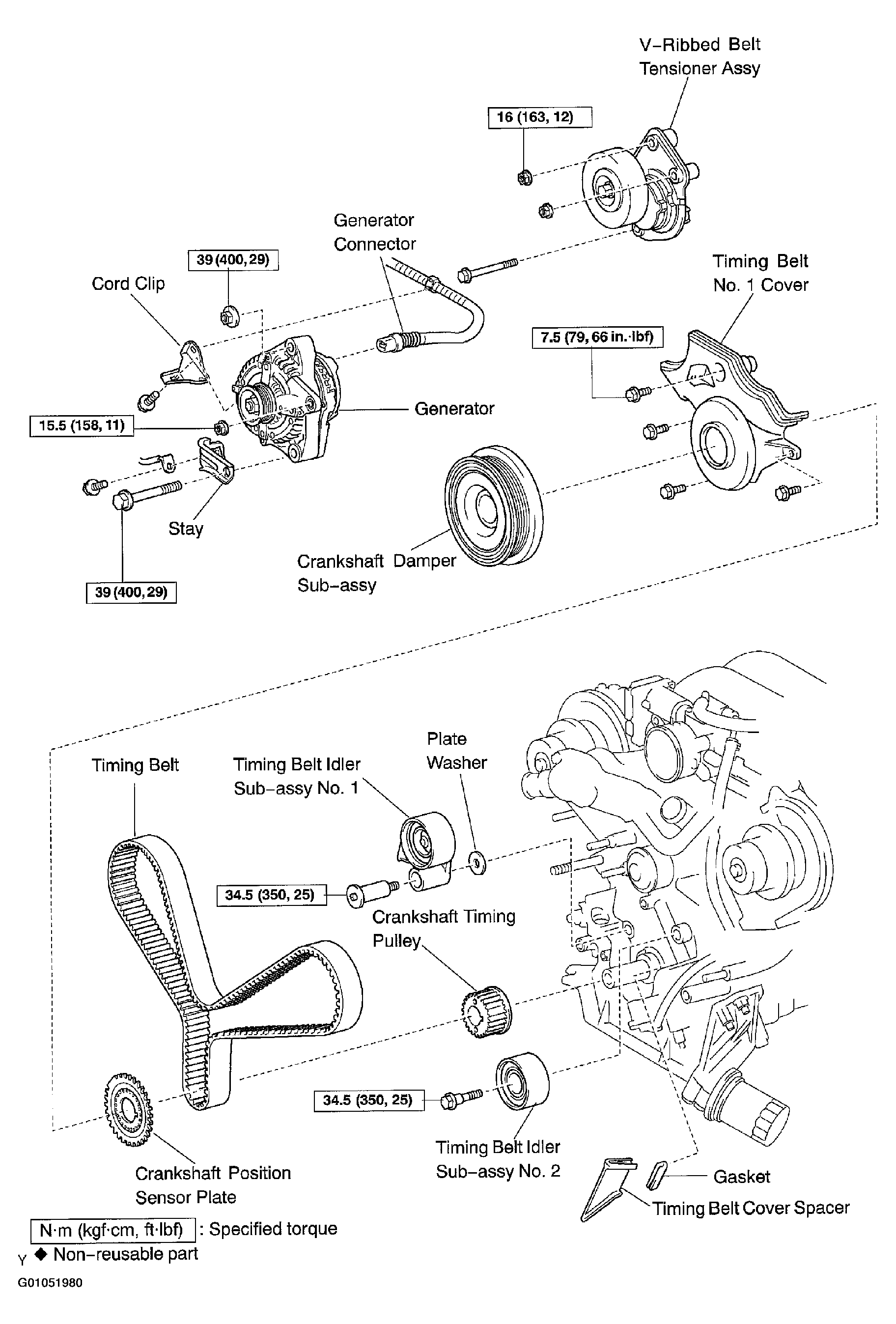

Fig 2: Identifying Oil Pump Assy Components And Its Tightening Torque (2 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

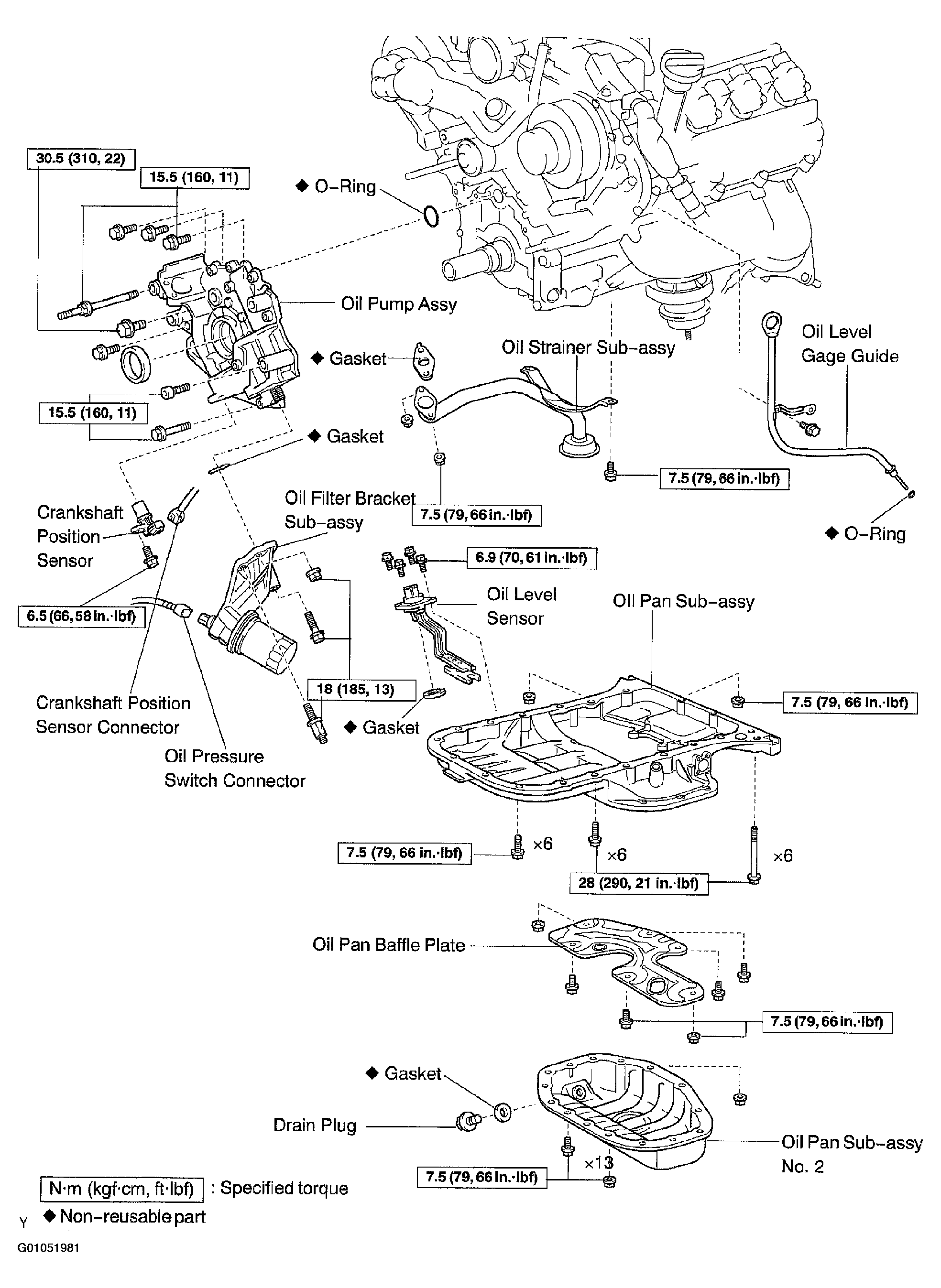

Fig 3: Identifying Oil Pump Assy Components And Its Tightening Torque (3 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

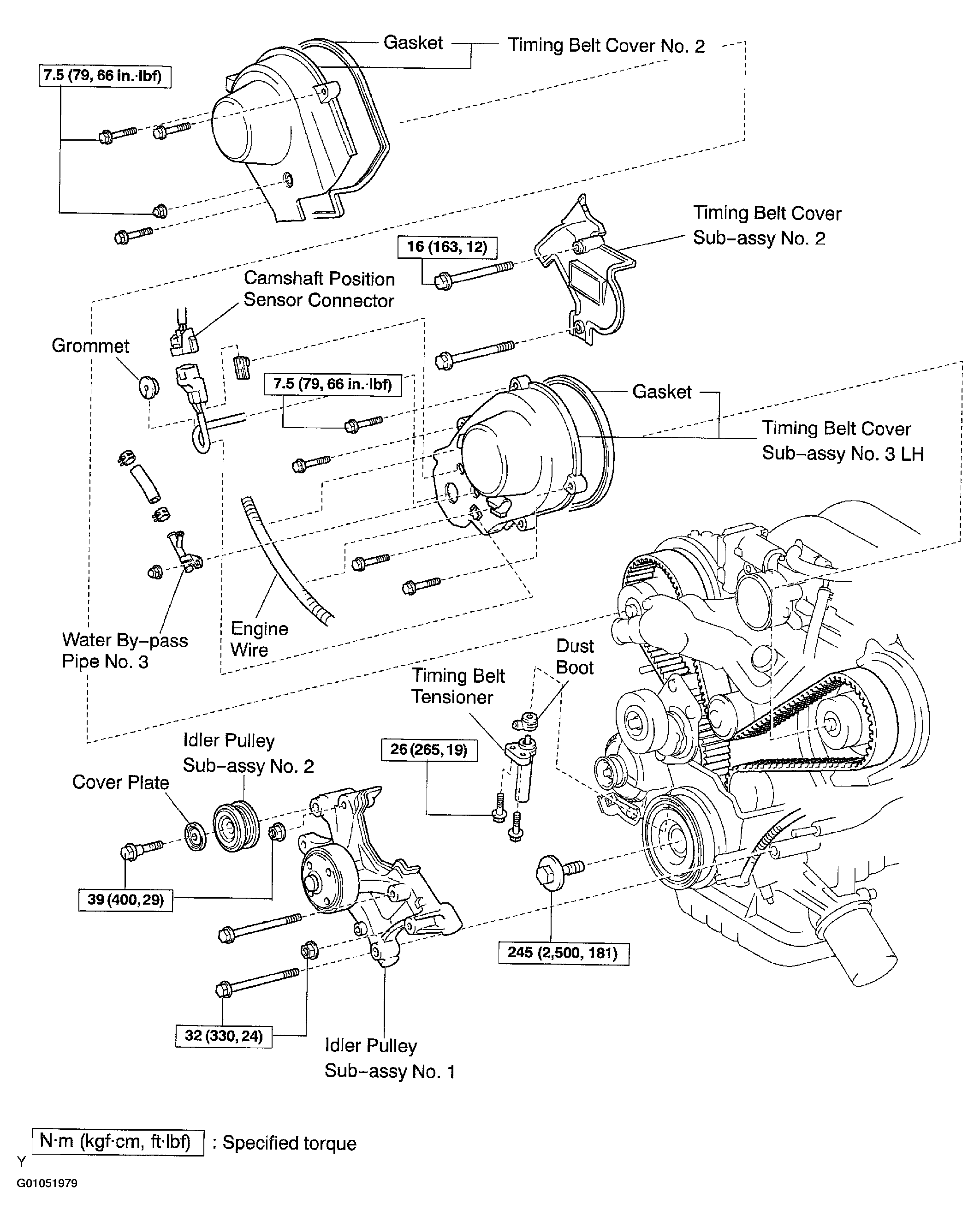

Fig 4: Identifying Oil Pump Assy Components And Its Tightening Torque (4 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
