Starter ASSY: Components

Fig 1: Identifying Starter Assy Components
G01032091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

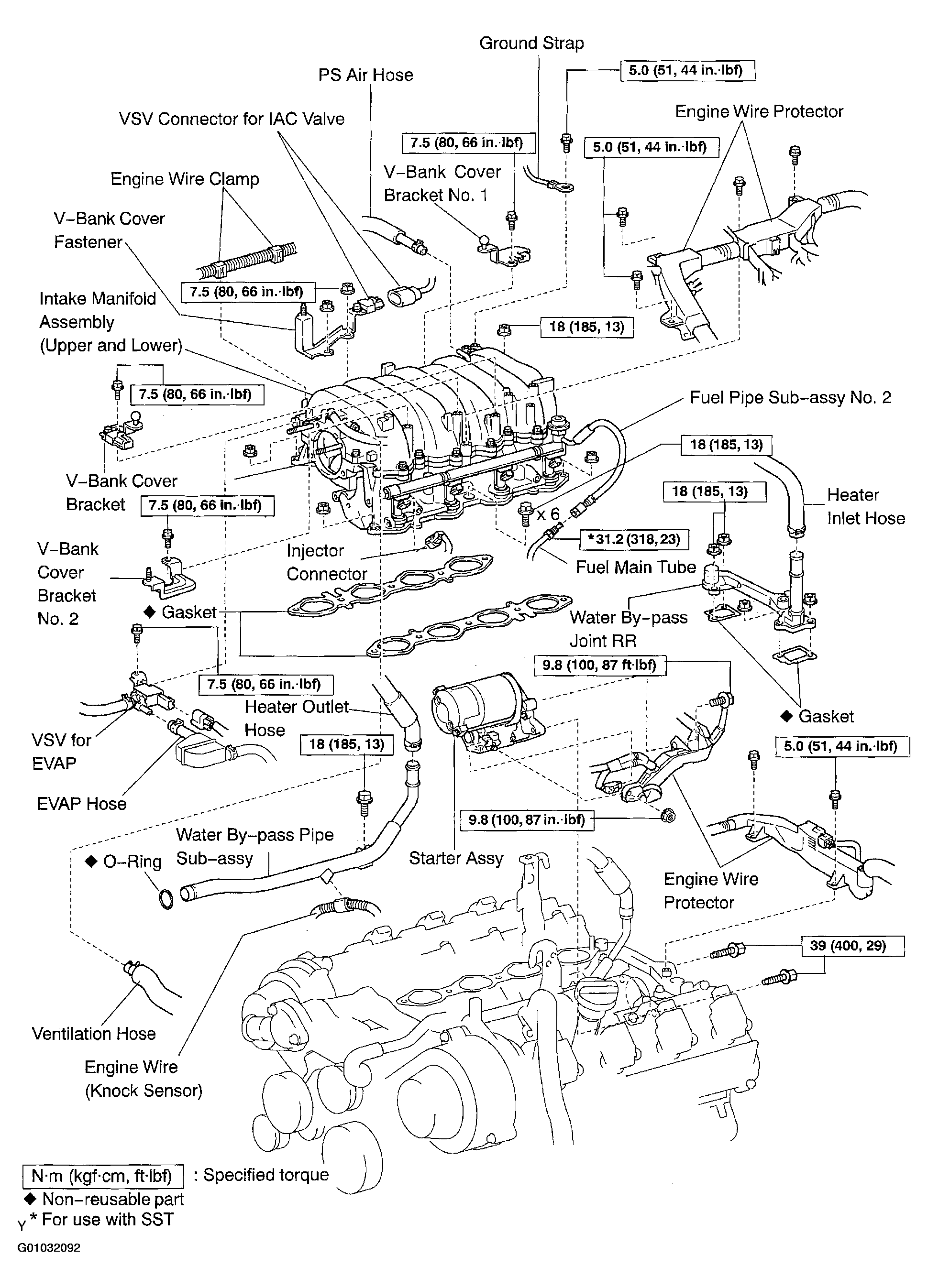

Fig 2: Exploded View Of Starter Assy Components
G01032092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

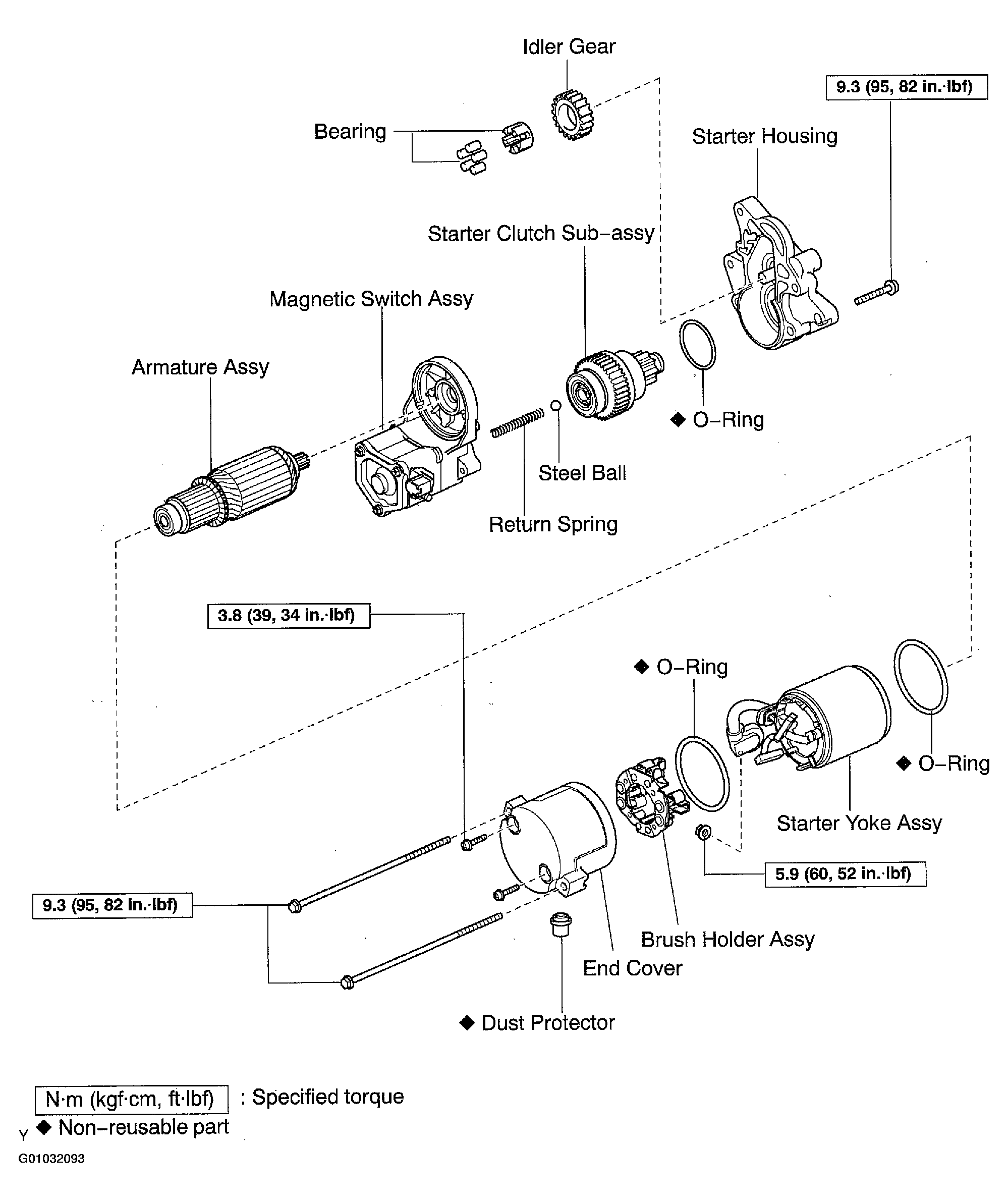

Fig 3: Exploded View Of Starter Assy Components
G01032093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
