Camshaft Timing Oil Control Valve ASSY LH: Components

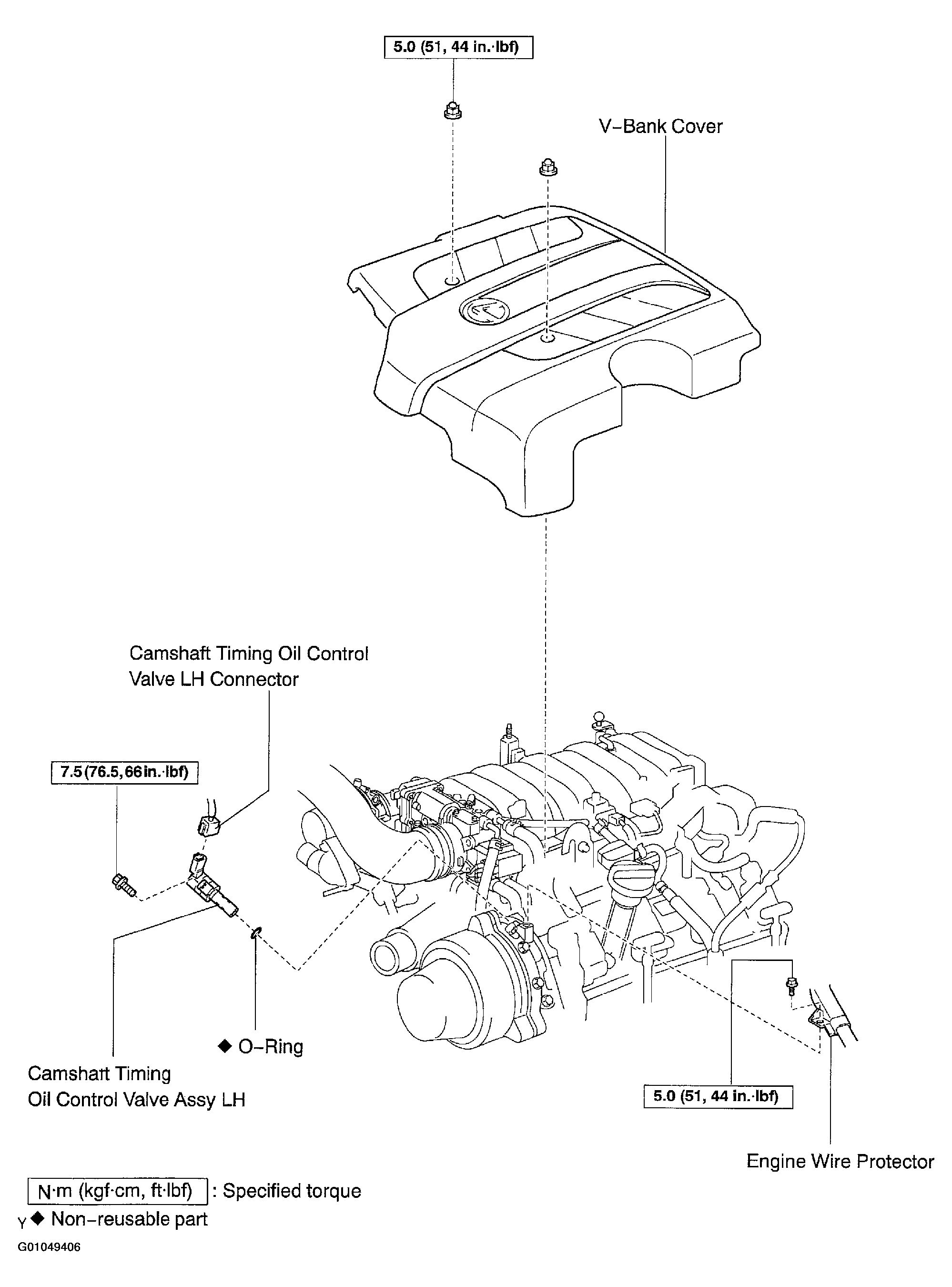

Fig 1: Identifying Camshaft Timing Oil Control Valve Assy LH Components

G01049406

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
