Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System
>>
Camshaft Timing Oil Control Valve ASSY
>>
Components
Camshaft Timing Oil Control Valve ASSY: Components

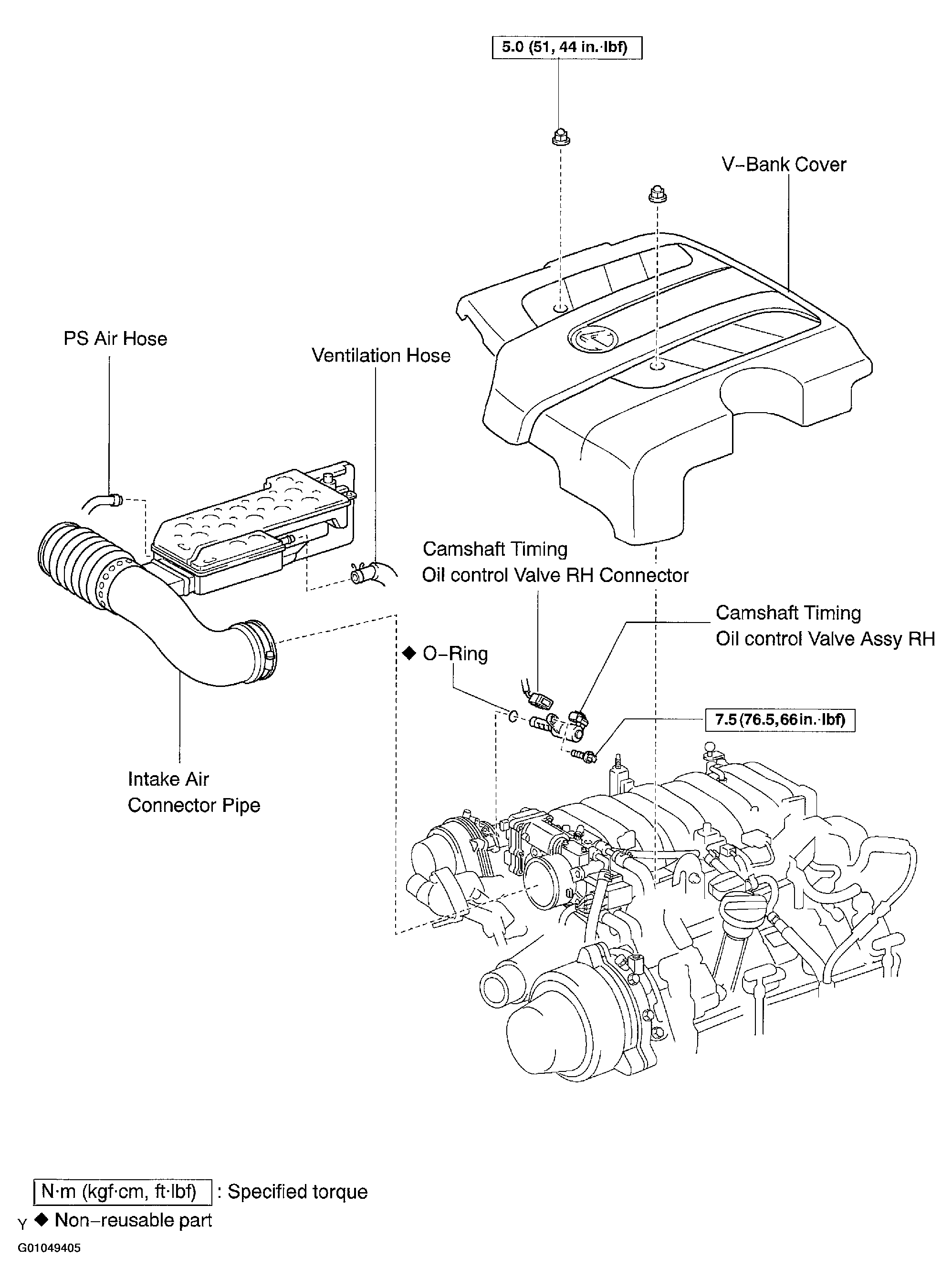

Fig 1: Identifying Camshaft Timing Oil Control Valve Assy RH Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
