Waveform 10

Front HO2S

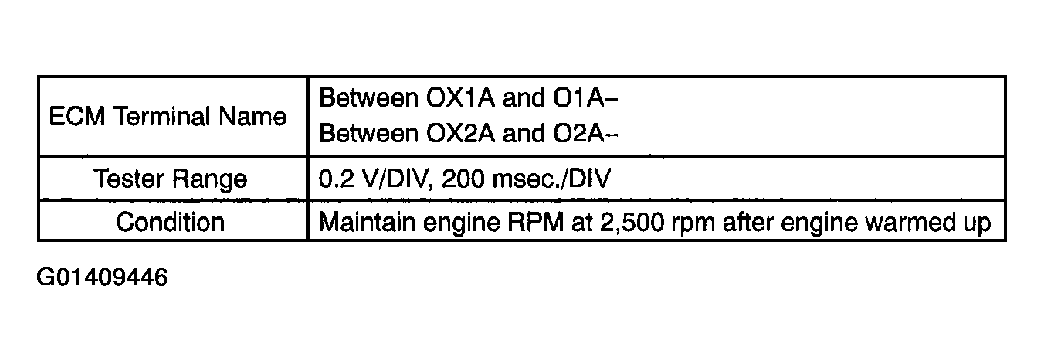

Fig 1: Terminal Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

In the DATA LIST, the items HO2S B1 S1 and HO2S B2 S1 show the ECM input values of the front HO2S.

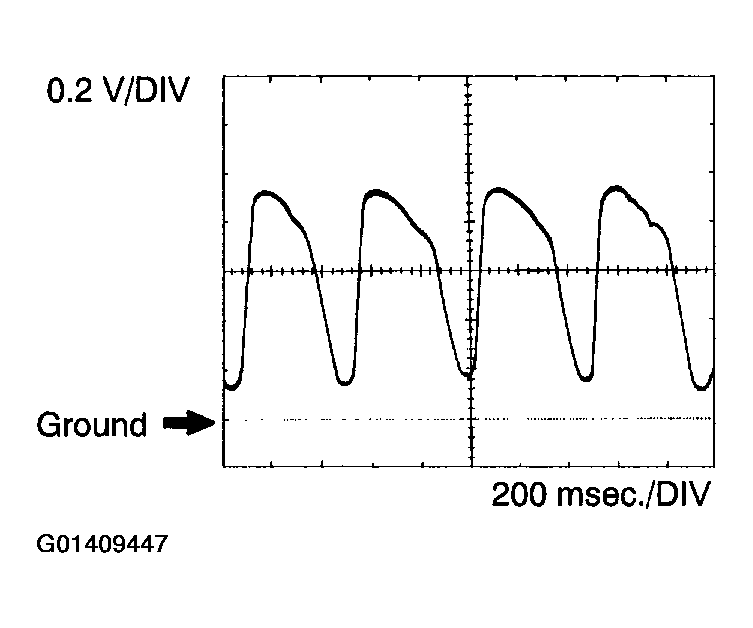

Fig 2: Identifying Waveform 10

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
