Illustration of

ILLUSTRATION OF NO 1 REFERENCE

Brightness of the surrounding when lighting

Lighting delay

Delay of turning light off

⁽²⁾

OLD

Old logic

6 sec.

6 sec.

3 sec.

CURRENT

New logic ⁽¹⁾ ('97/8-)

15 sec.

15 sec.

15 sec.

⁽¹⁾	The new one has the logic to light up two times brighter than the old logic.

⁽²⁾	Delay time until the headlight is turned on when it suddenly gets dark.

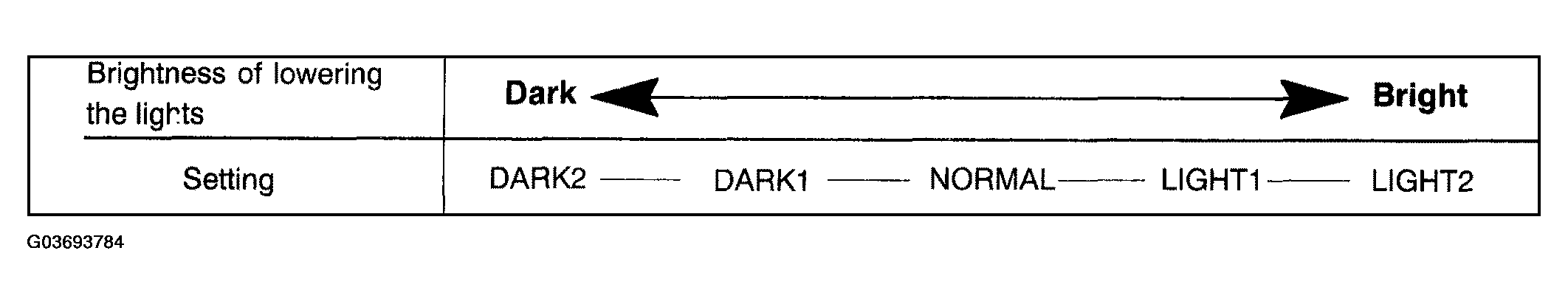

Fig 1: Illustration Of No 2 Reference Chart

G03693784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

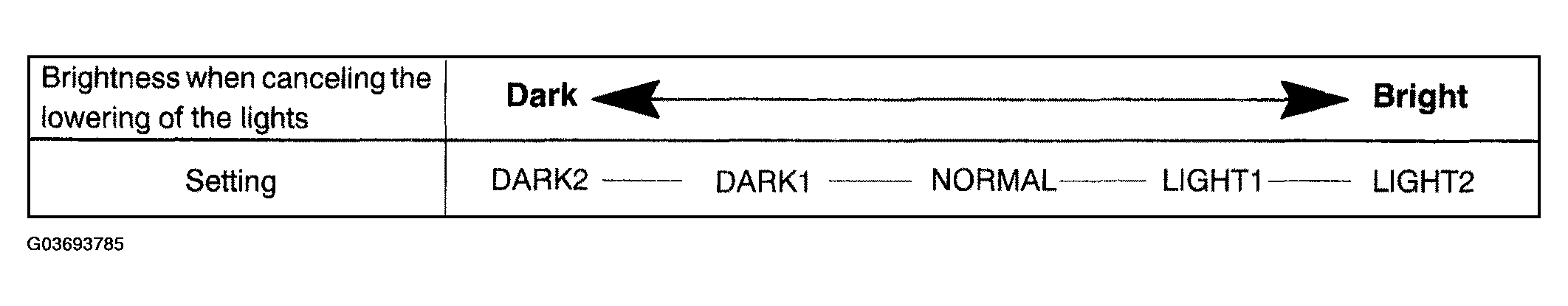

Fig 1: Illustration Of No 3 Reference Chart

G03693785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
