Vehicle Lift And Support Locations
Vehicle Lift And Support Locations

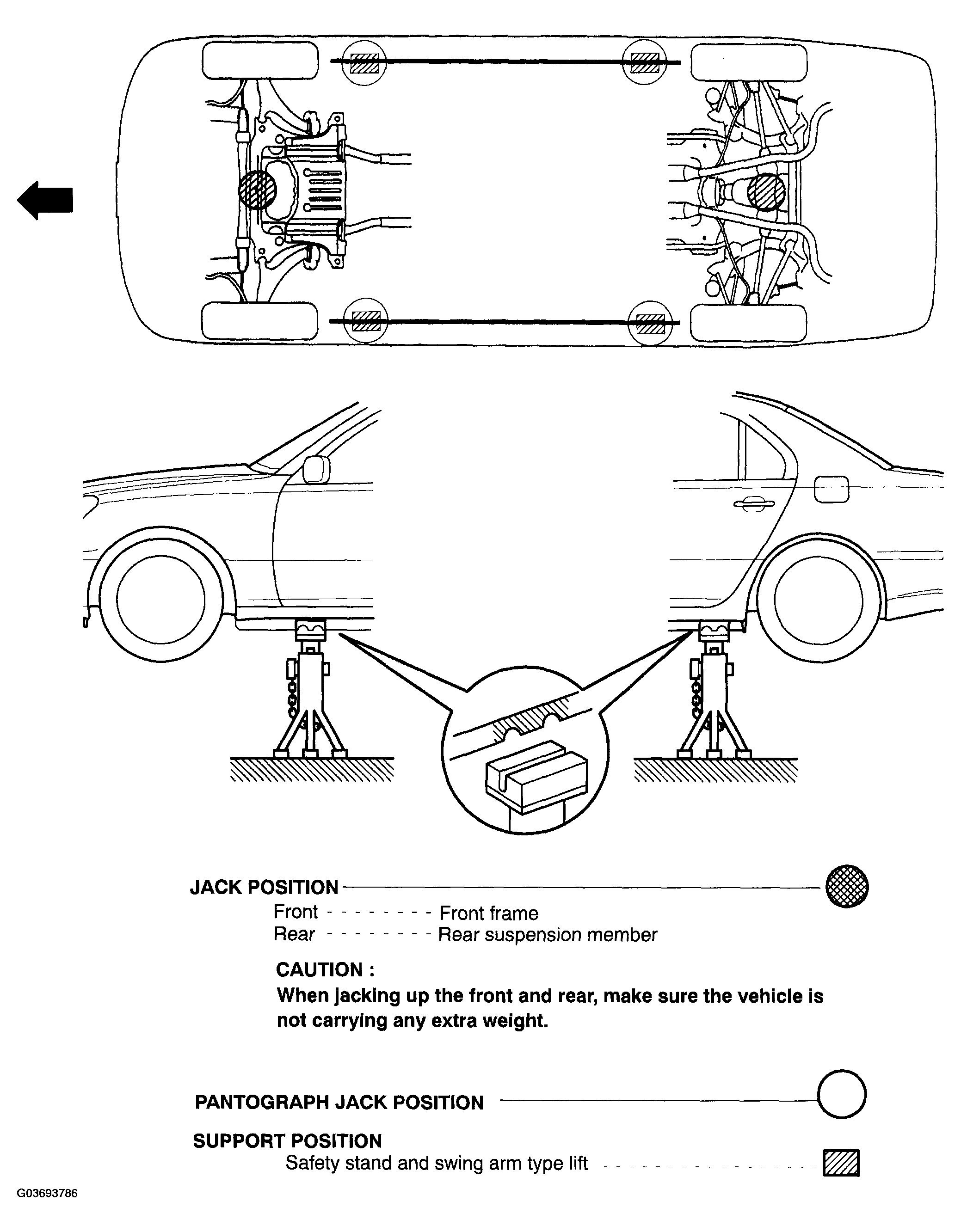

Fig 1: Identifying Vehicle Lifting And Supporting Locations (Jack Type Lift)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

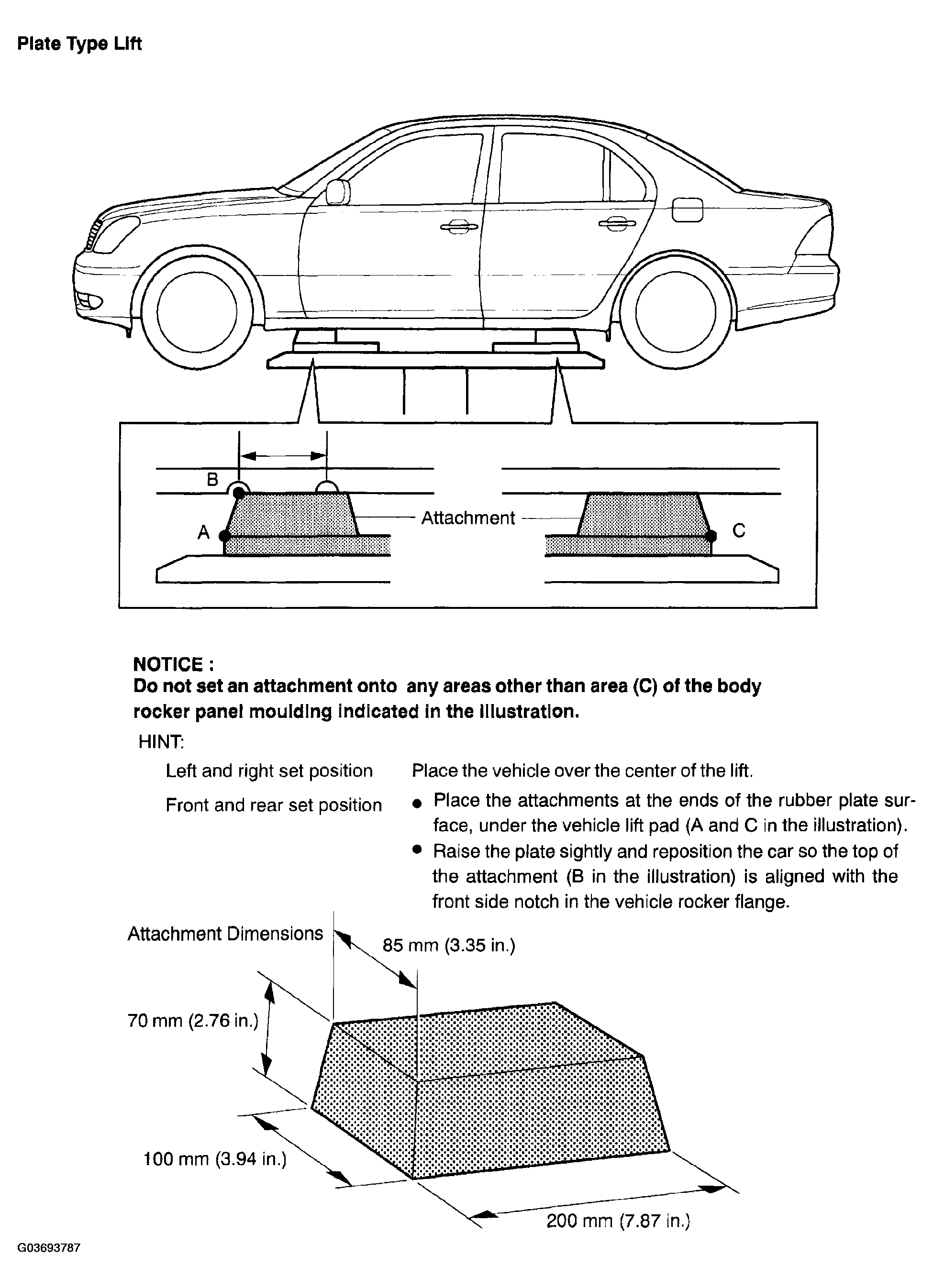

Fig 2: Identifying Vehicle Lifting And Supporting Locations (Plate Type Lift)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
