Basic Repair Hint: Fuses

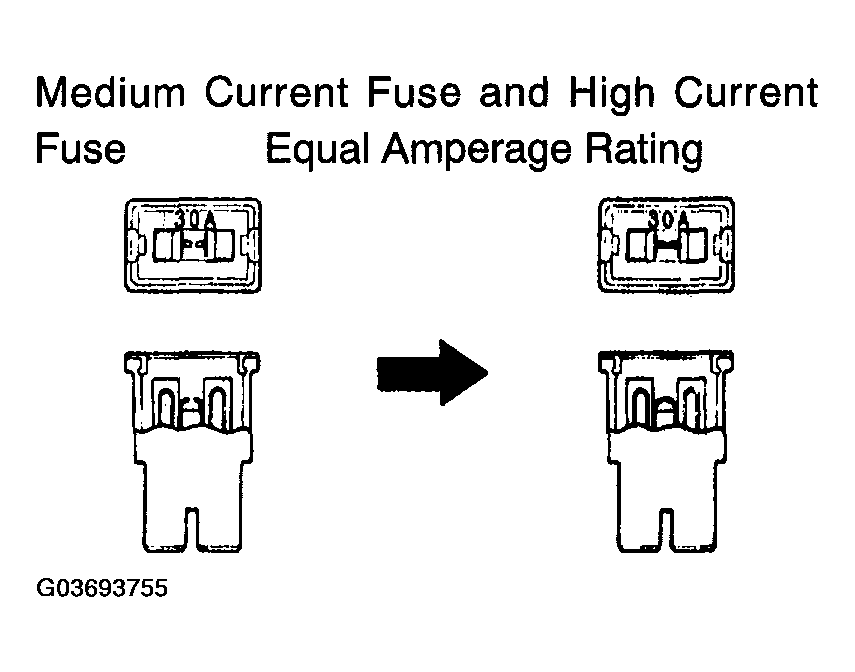

Fig 1: Identifying Fuses
G03693755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. When replacing fuses, be sure that the new fuse has the correct amperage rating. DO NOT exceed the rating or use one with a lower rating.
    Fig 2: Fuses Symbol And Abbreviation Chart
    G03693756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
