Home >> Lexus >> 2004 >> LS 430 >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Vane Pump ASSY >> Components

Vane Pump ASSY: Components

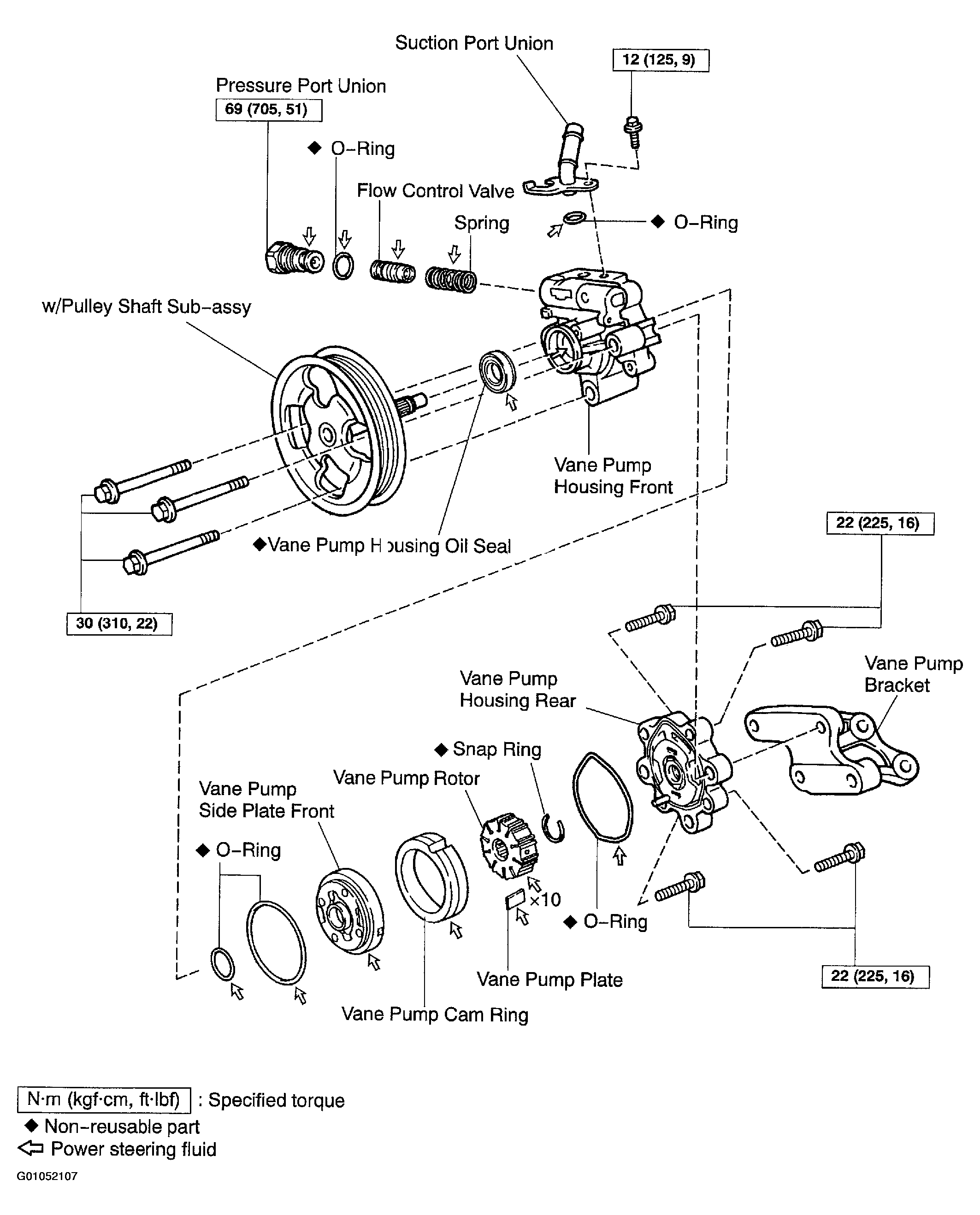

Fig 1: Exploded View Of Vane Pump Assy
G01052107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
