Height Control Sensor Sub-ASSY Front LH: Components

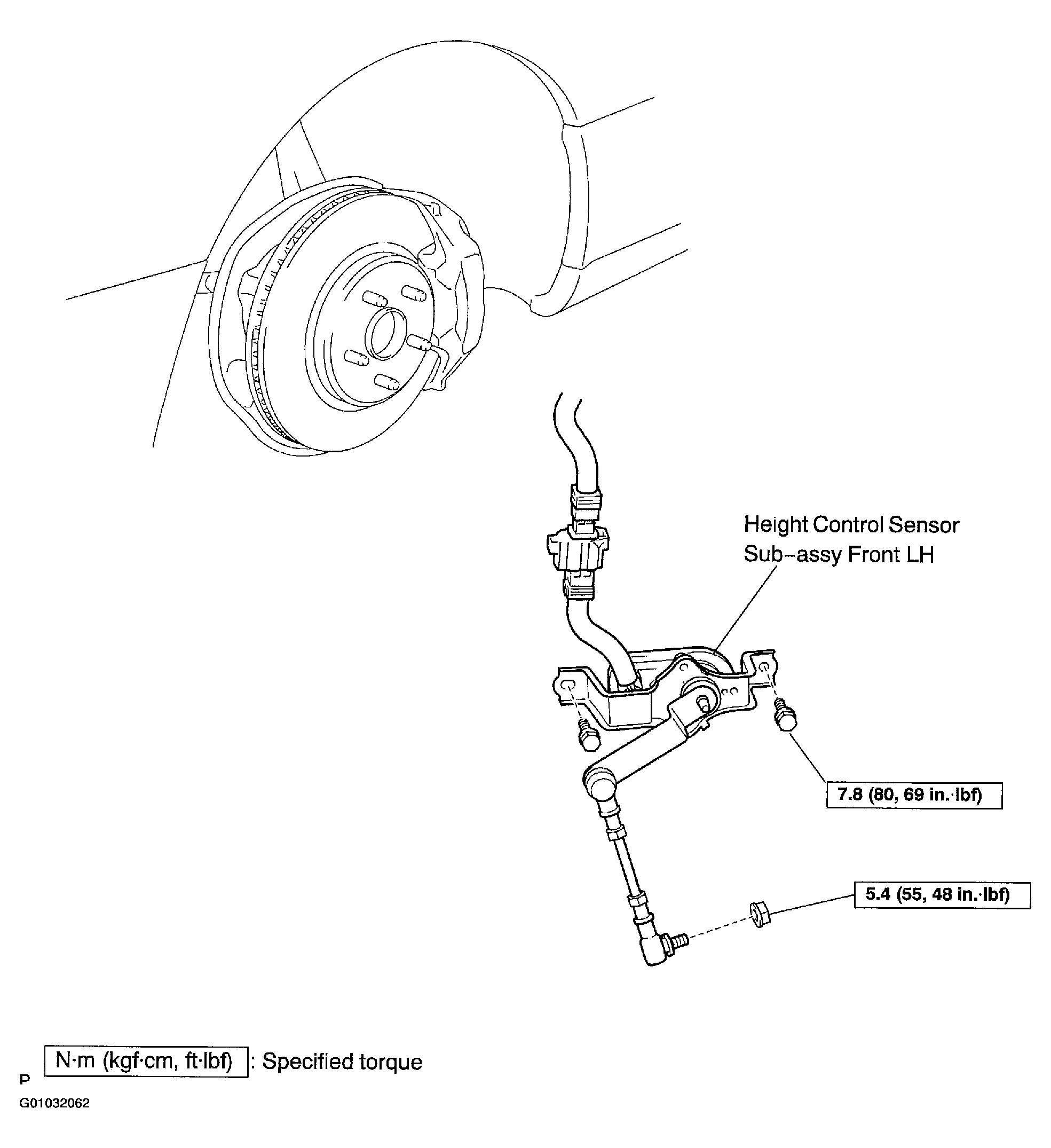

Fig 1: View Of Height Control Sensor Sub-Assy Front LH Components

G01032062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
