Timing Belt: Components

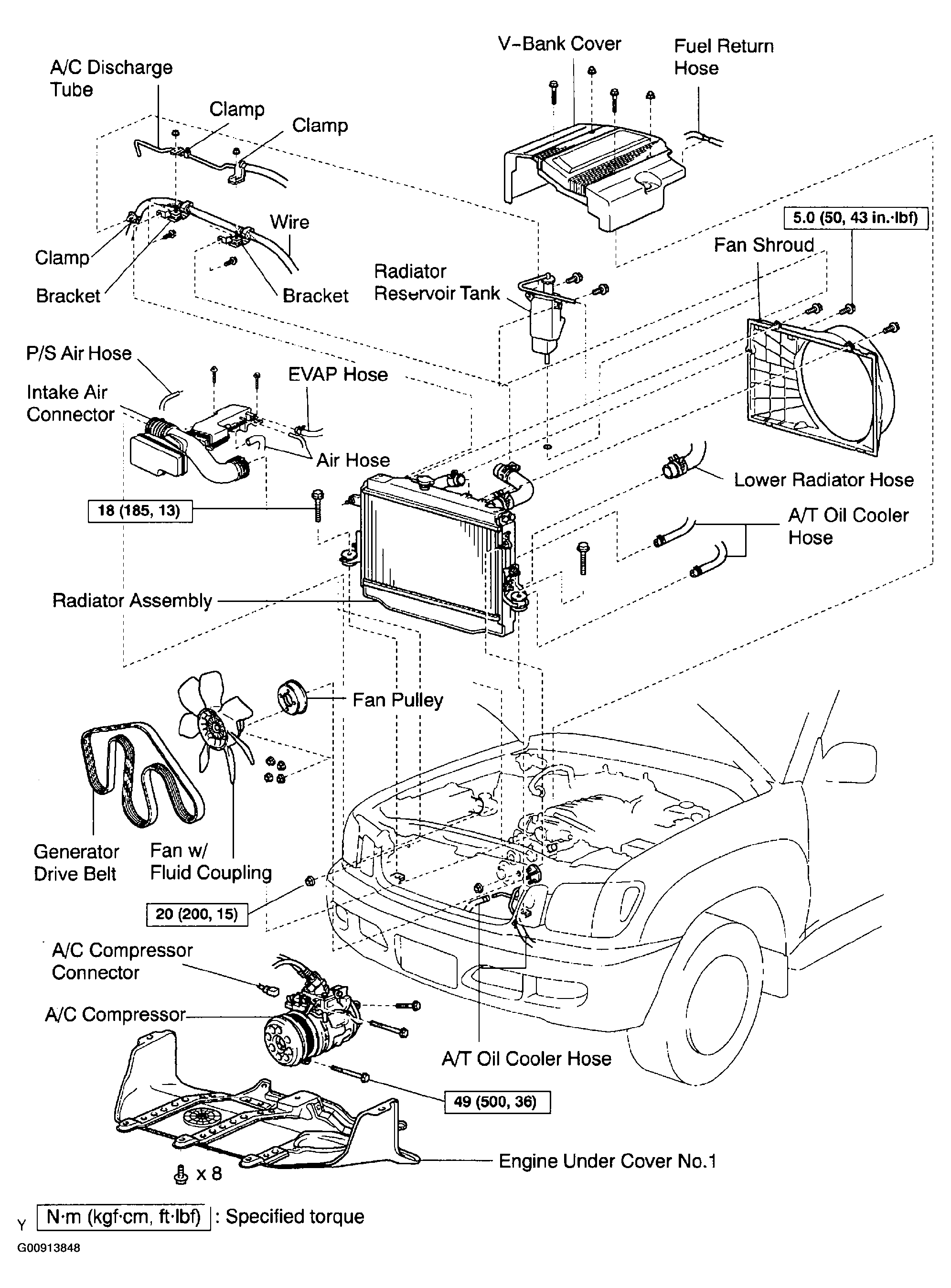

Fig 1: Identifying Timing Belt Components
G00913848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

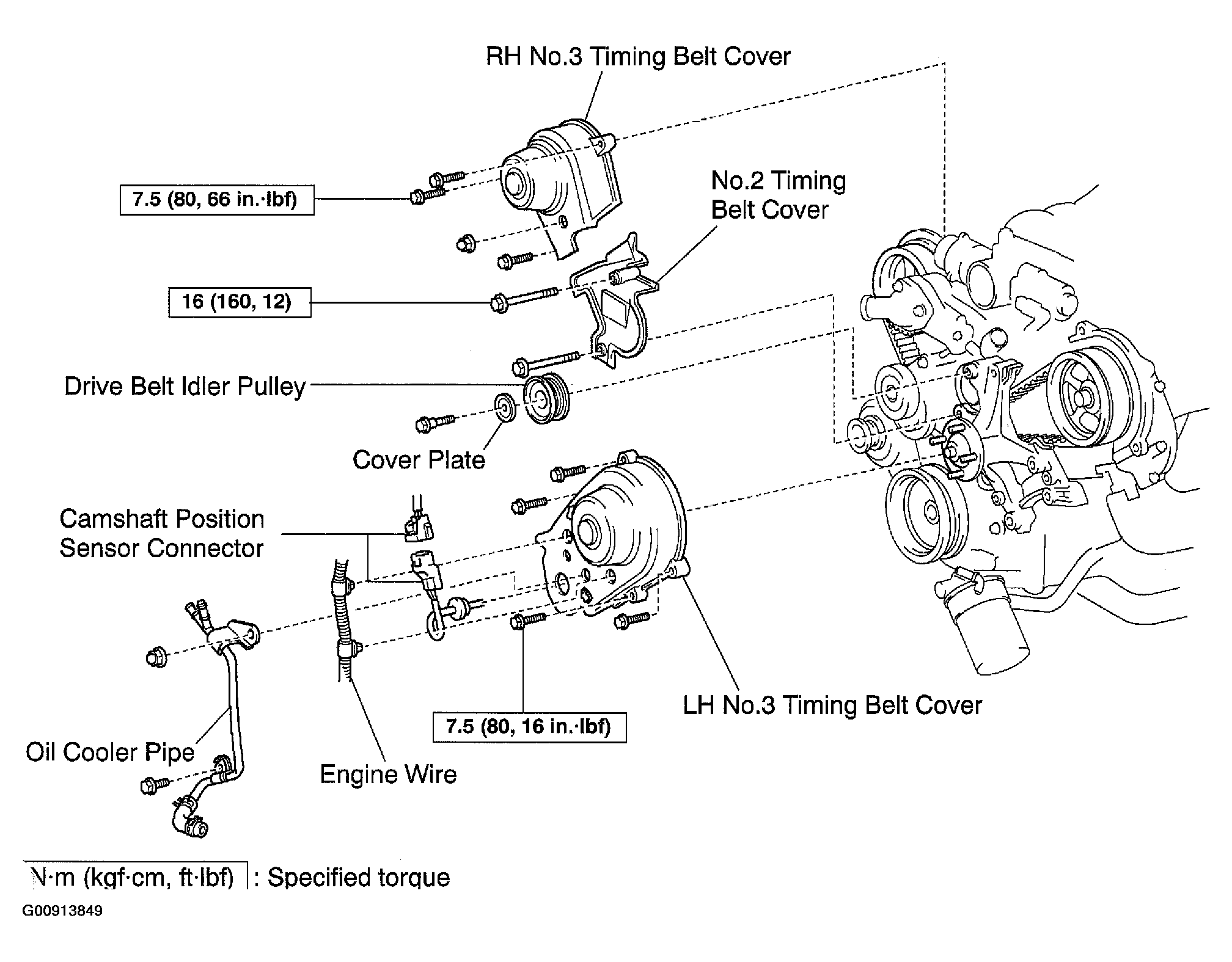

Fig 2: Exploded View Of Timing Belt Components (1 Of 3)
G00913849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

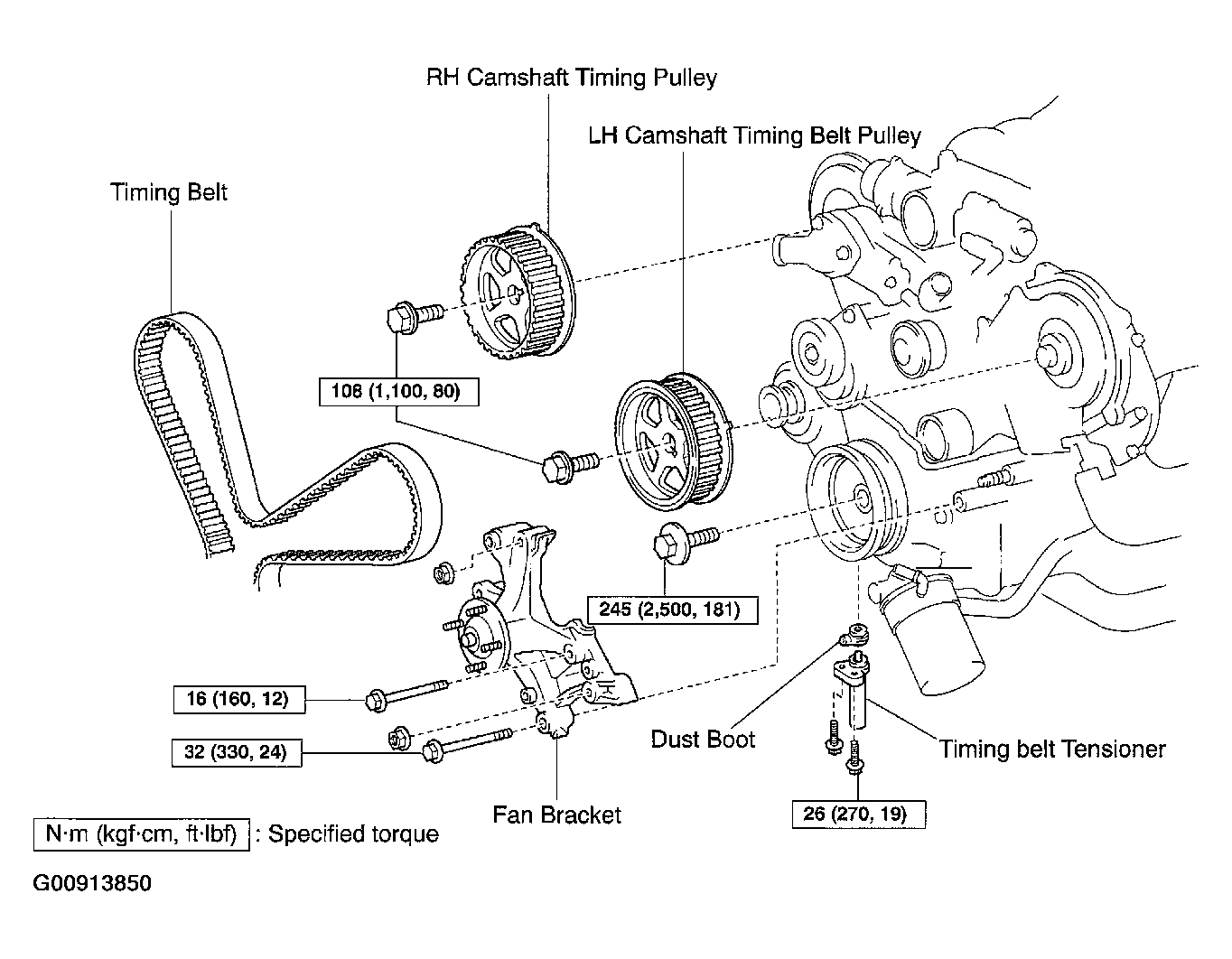

Fig 3: Exploded View Of Timing Belt Components (2 Of 3)
G00913850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

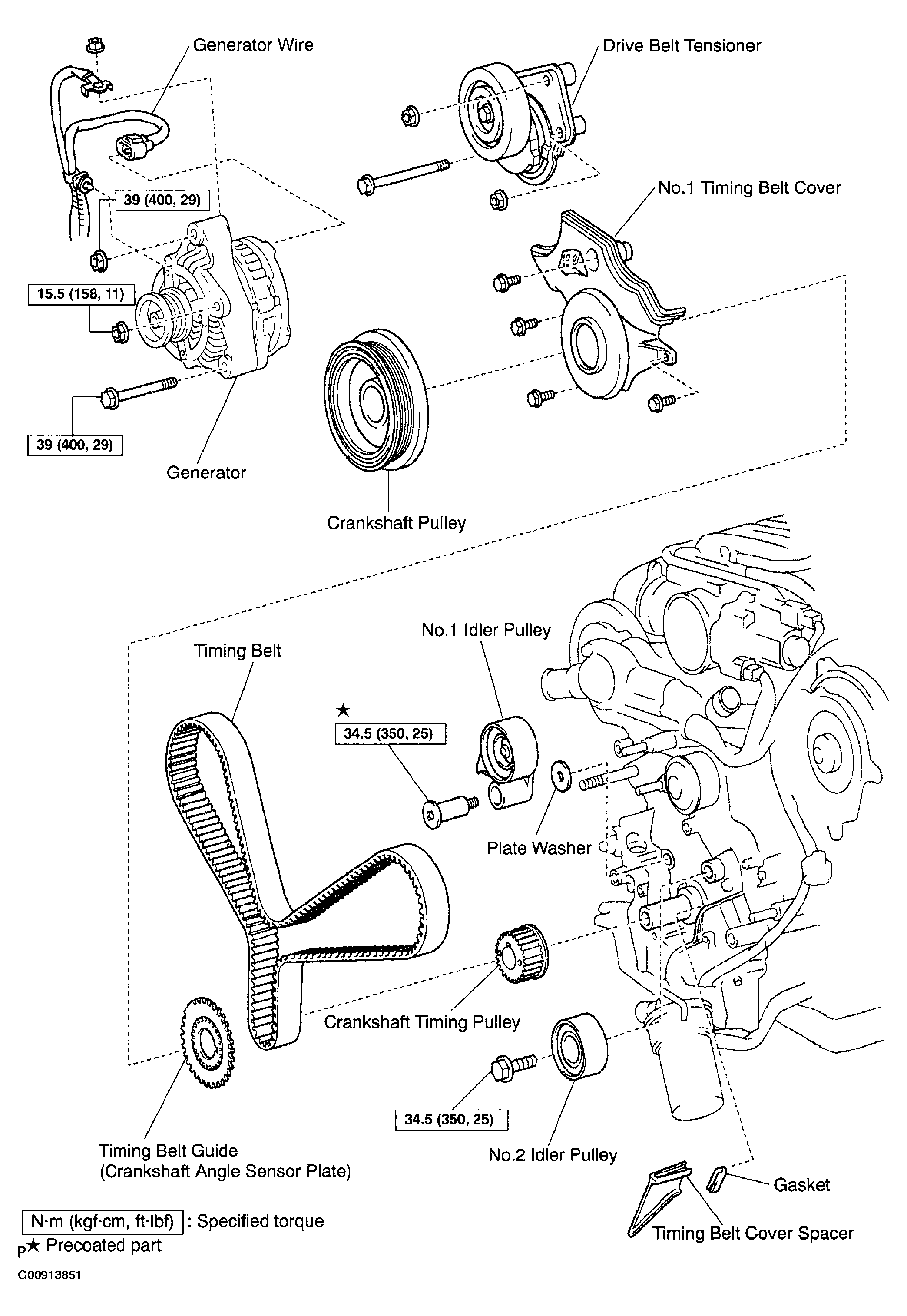

Fig 4: Exploded View Of Timing Belt Components (3 Of 3)
G00913851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
