Home >> Lexus >> 2004 >> LX 470 >> Repair and Diagnosis >> Engine Performance >> Engine Control System - Diagnosis >> Parts Location

Parts Location

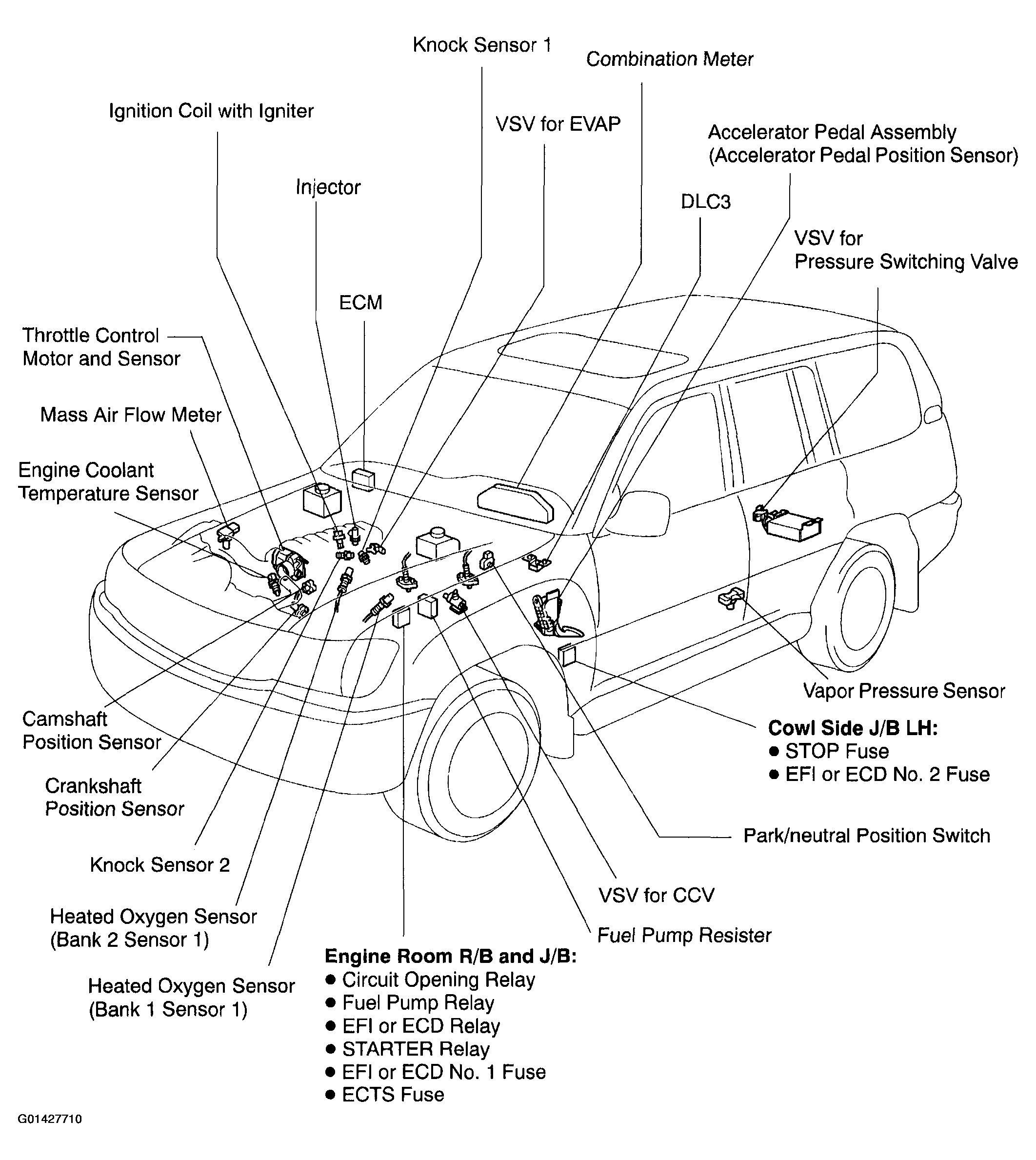

Fig 1: Identifying Location Of Engine Component
G01427710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
