Fuel Pump: Components

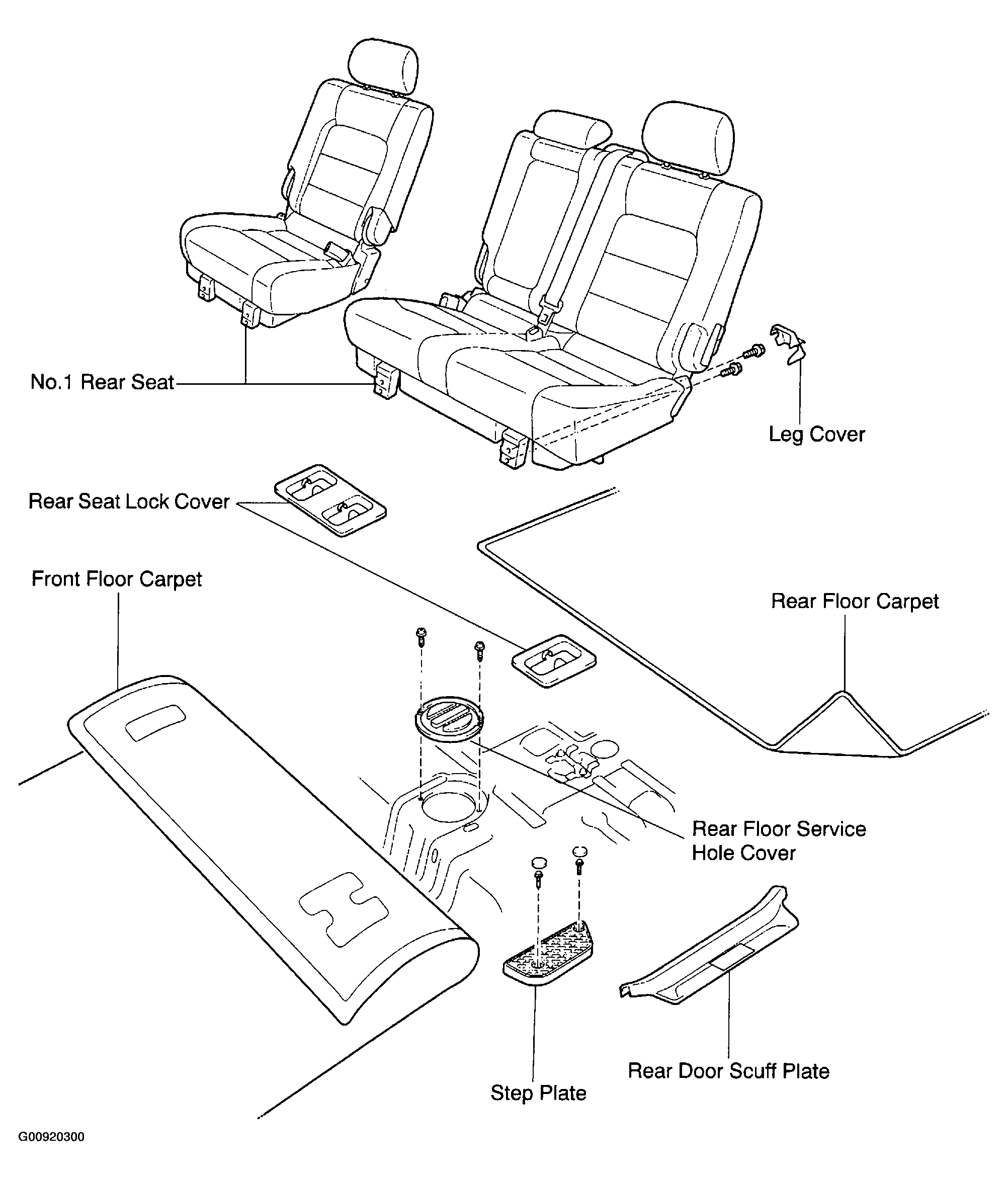

Fig 1: Identifying Fuel Pump Components (1 Of 3)
G00920300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

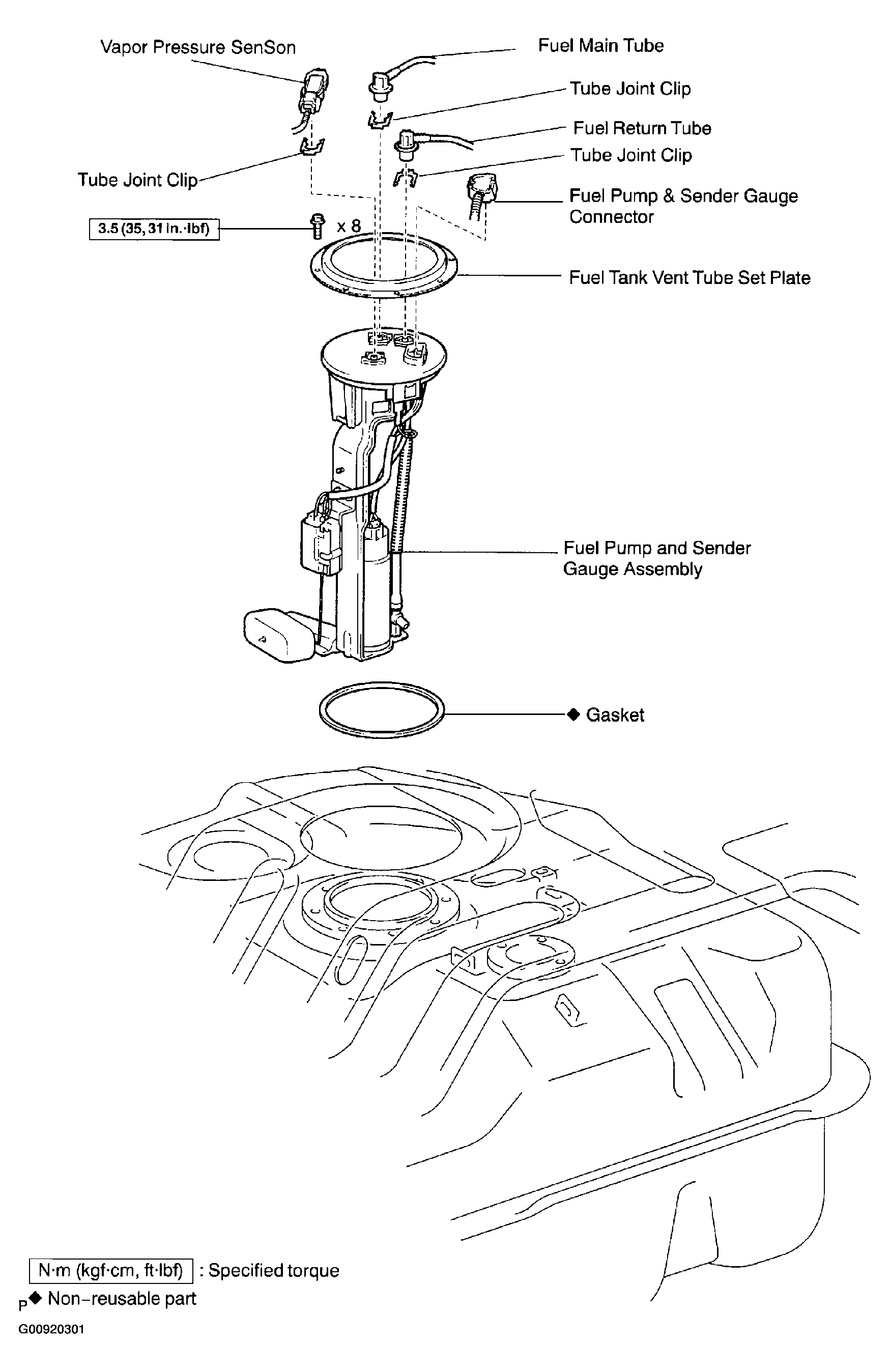

Fig 2: Identifying Fuel Pump Components (2 Of 3)
G00920301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

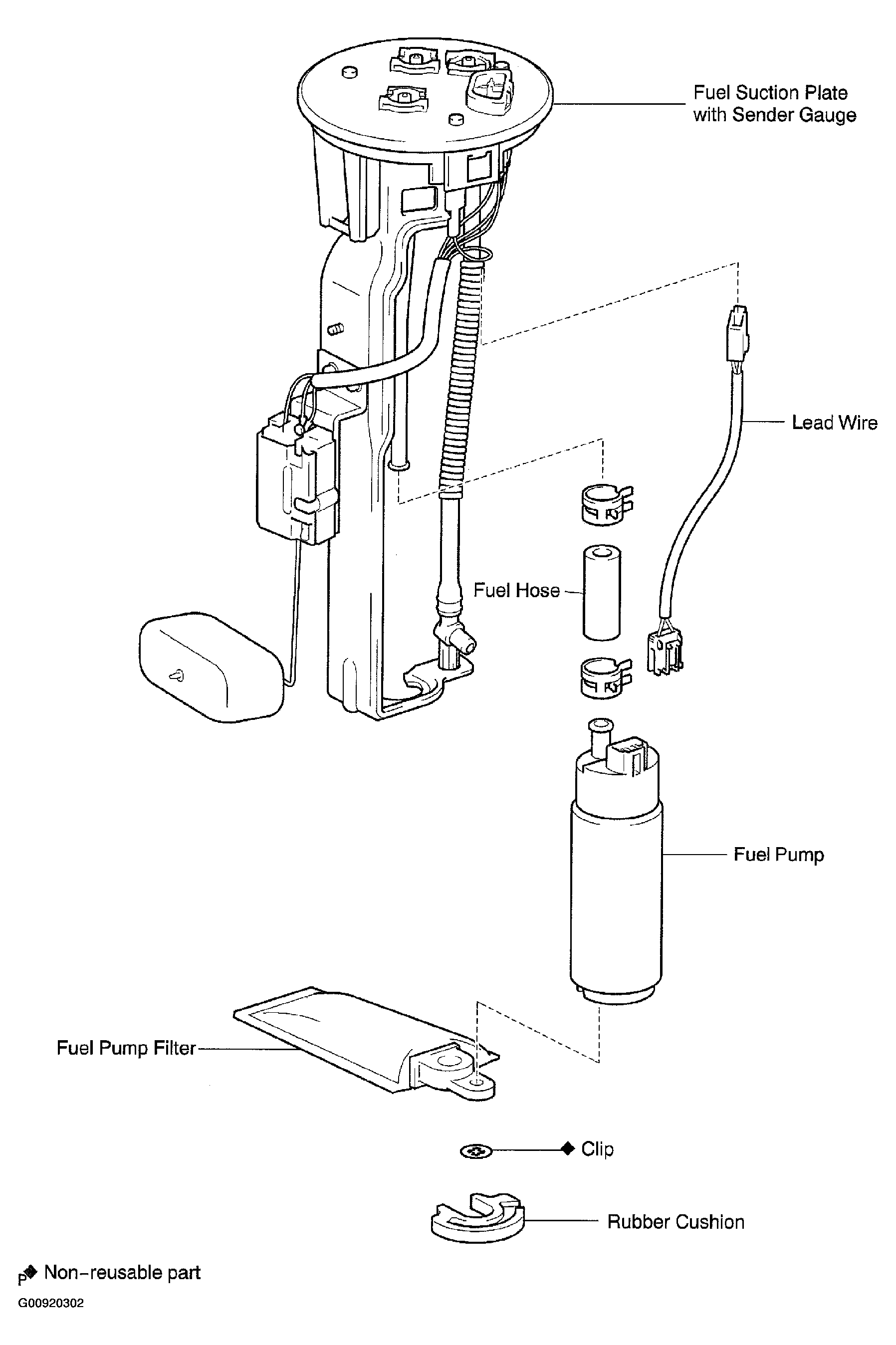

Fig 3: Identifying Fuel Pump Components (3 Of 3)
G00920302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
