Home >> Lexus >> 2004 >> LX 470 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> SFI System >> Fuel Tank And Line >> Components

Fuel Tank And Line: Components

CAUTION:
  • Always use new gaskets when replacing the fuel tank or component parts.
  • Apply the proper torque to all tightening parts.

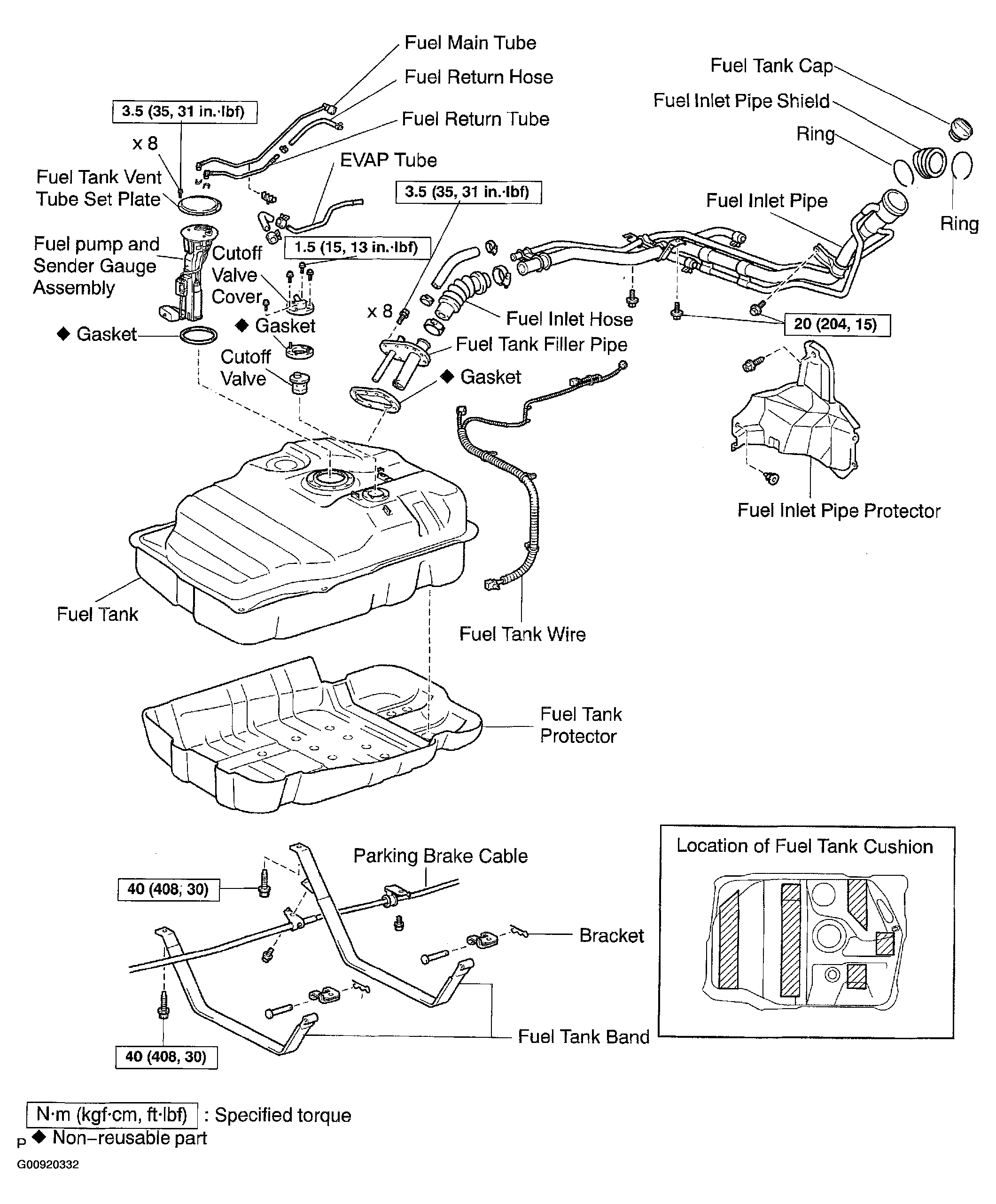

Fig 1: Identifying Fuel Tank & Line Components
G00920332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
