Home >> Lexus >> 2004 >> LX 470 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Case System >> Transfer Shift Lever Assembly >> Components

Transfer Shift Lever Assembly: Components

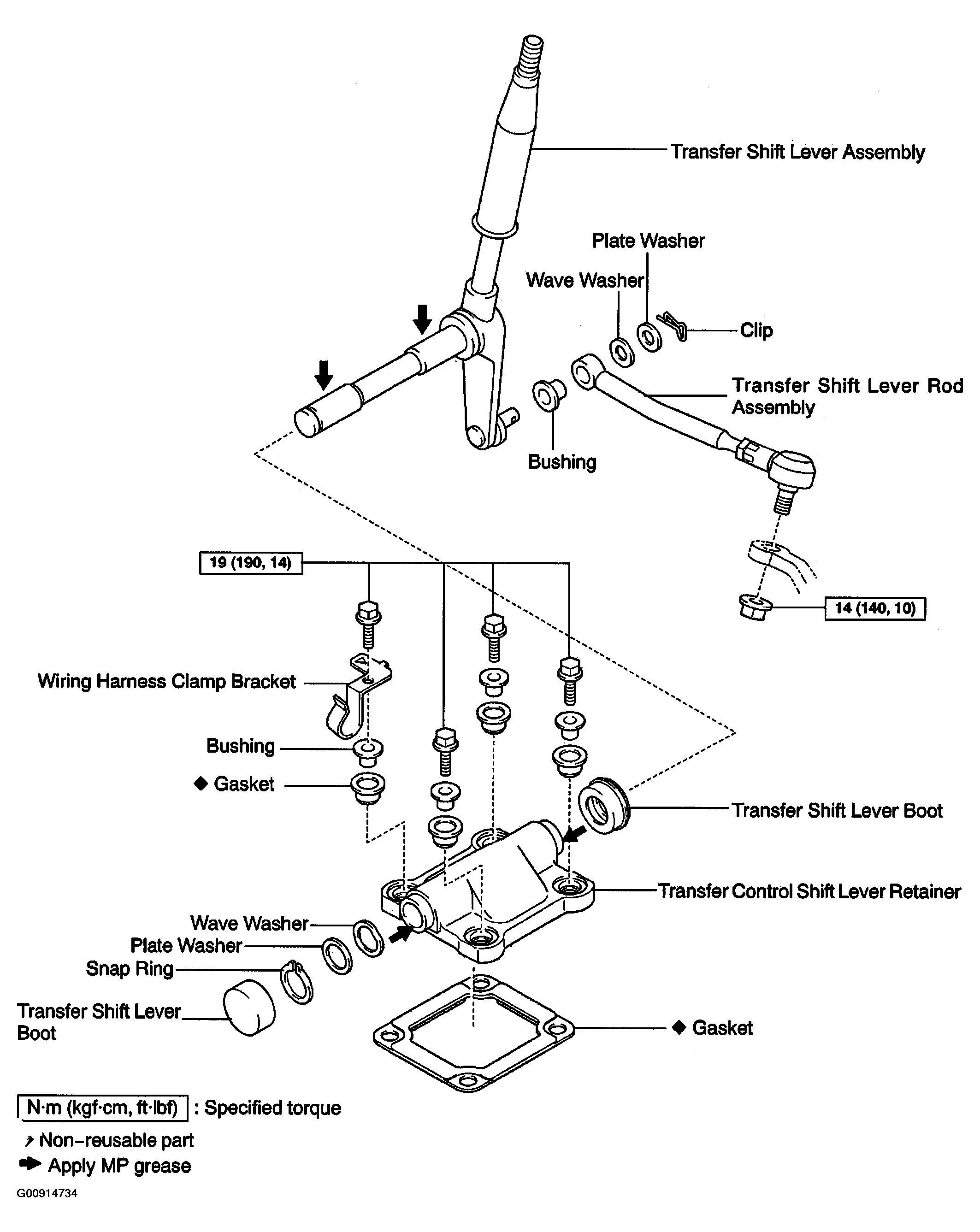

Fig 1: Identifying Components Of Transfer Shift Lever Assembly
G00914734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
