Home >> Lexus >> 2004 >> LX 470 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Case System >> Transfer Unit >> Components

Transfer Unit: Components

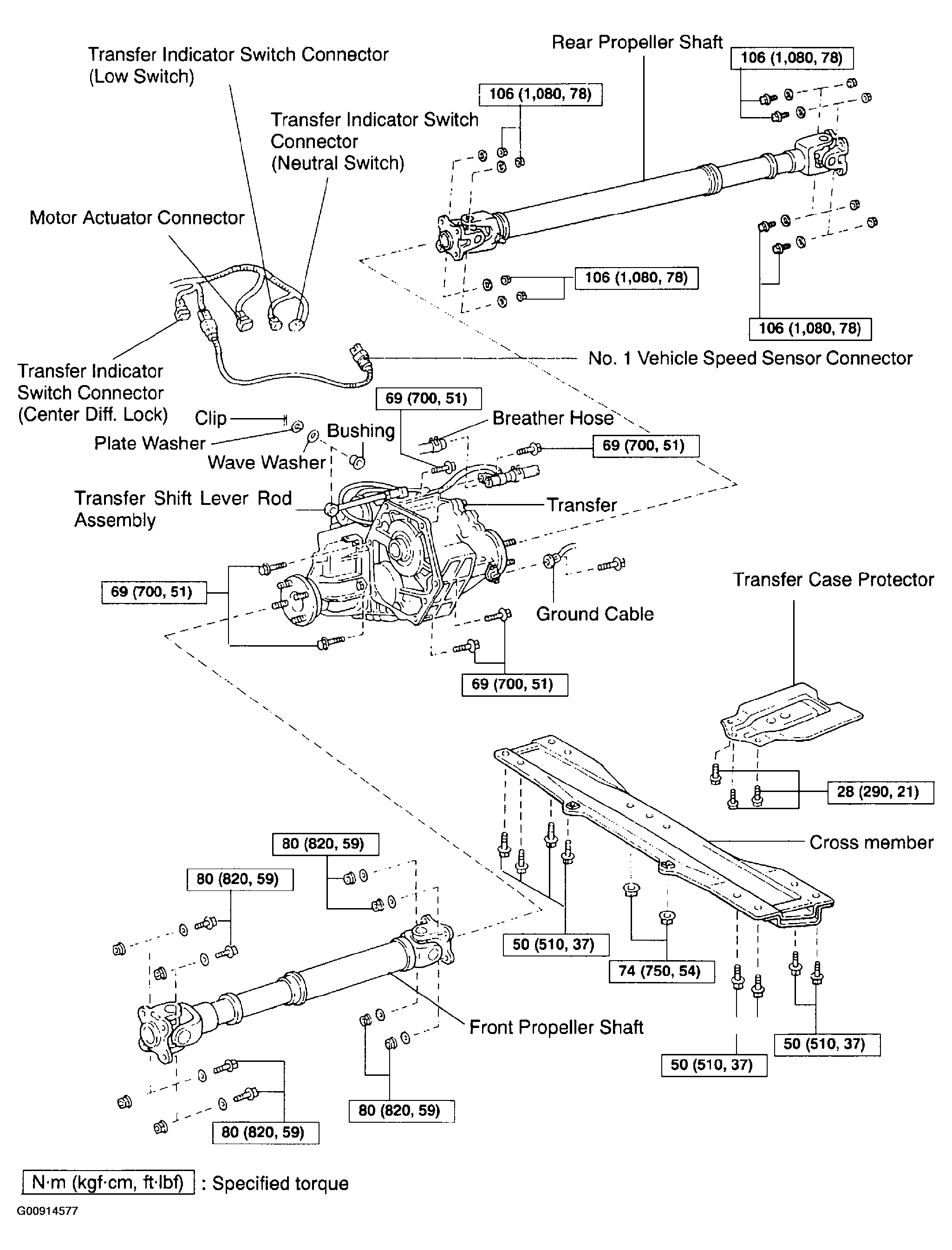

Fig 1: Identifying Components Of Transfer Unit
G00914577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
