Instrument Panel/Meter: Components

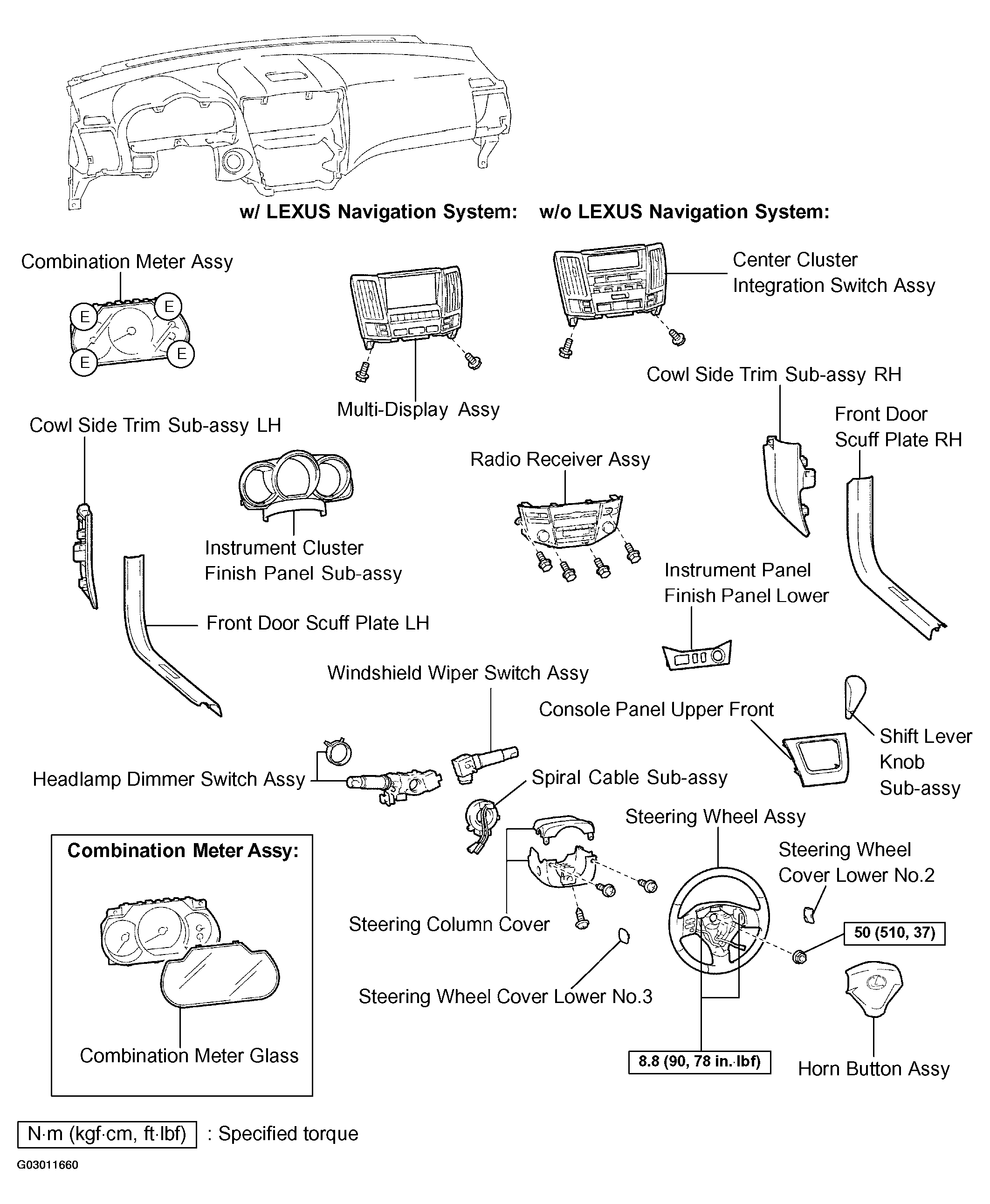

Fig 1: Identifying Instrument Panel/Meter Component (1 Of 3)
G03011660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

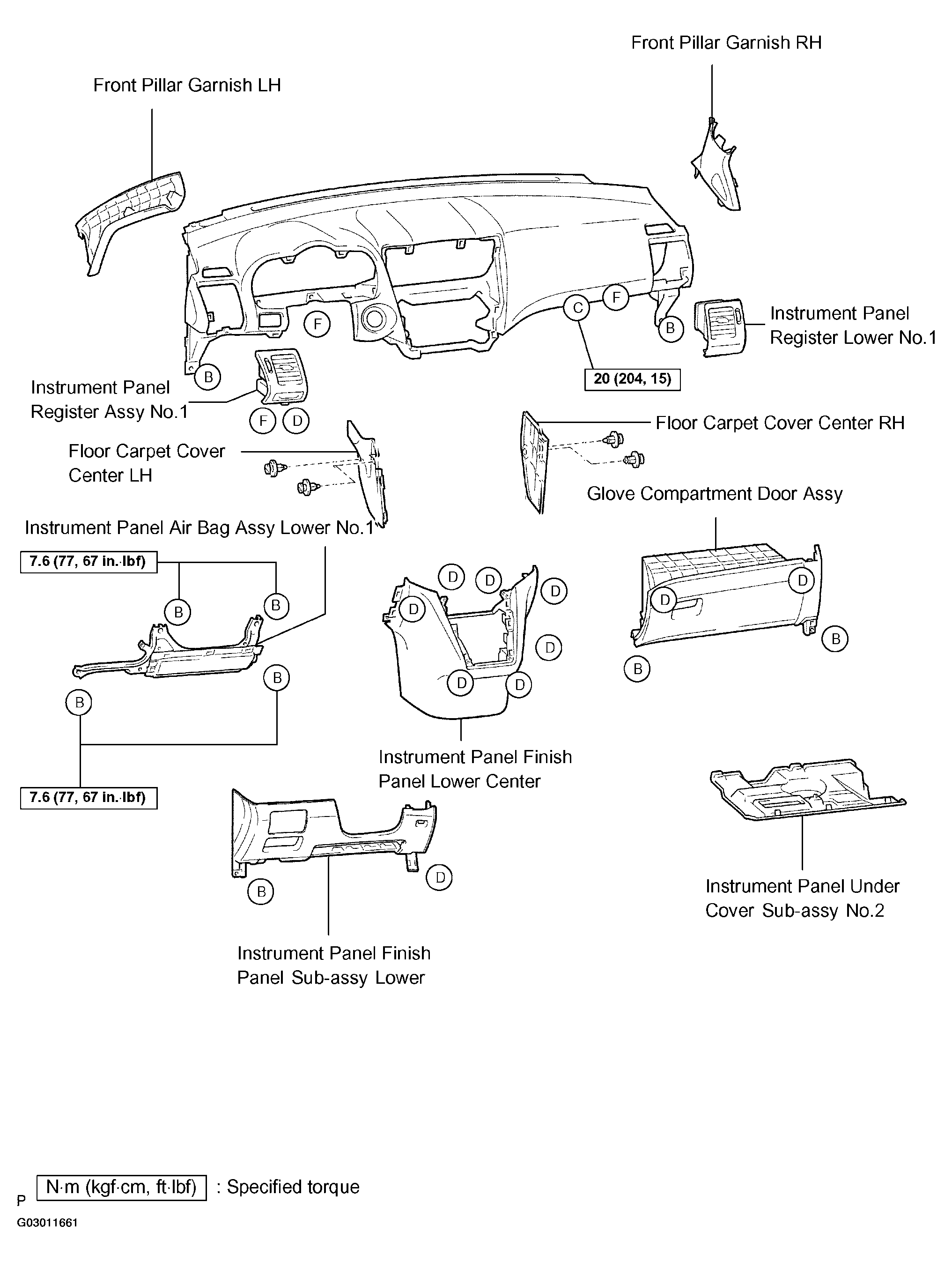

Fig 2: Identifying Instrument Panel/Meter Component (2 Of 3)
G03011661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

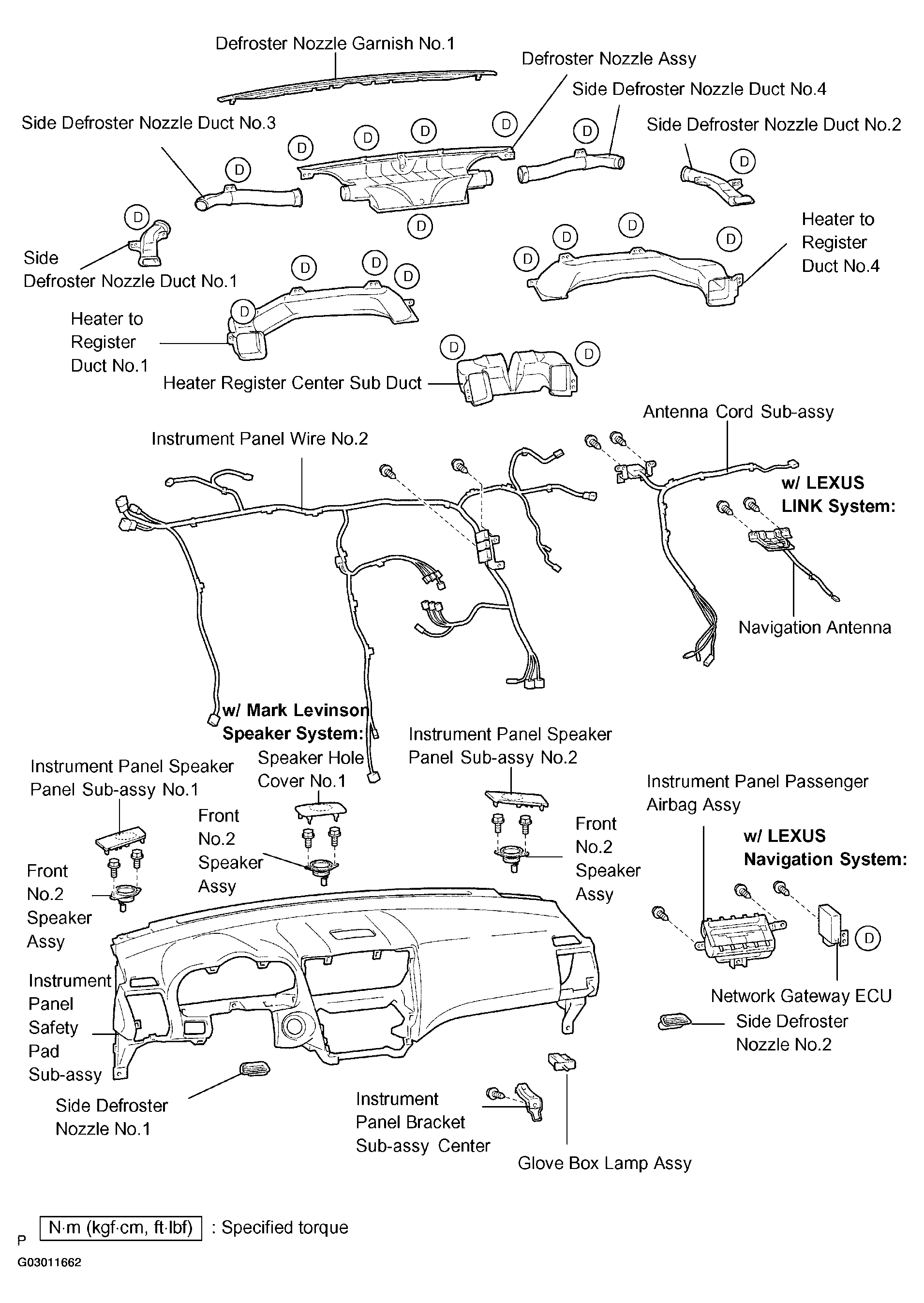

Fig 3: Identifying Instrument Panel/Meter Component (3 Of 3)
G03011662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
