Home >> Lexus >> 2004 >> RX 330 FWD >> Repair and Diagnosis >> Electrical >> Horns >> Communication System >> Horn System >> Location

Horn System: Location

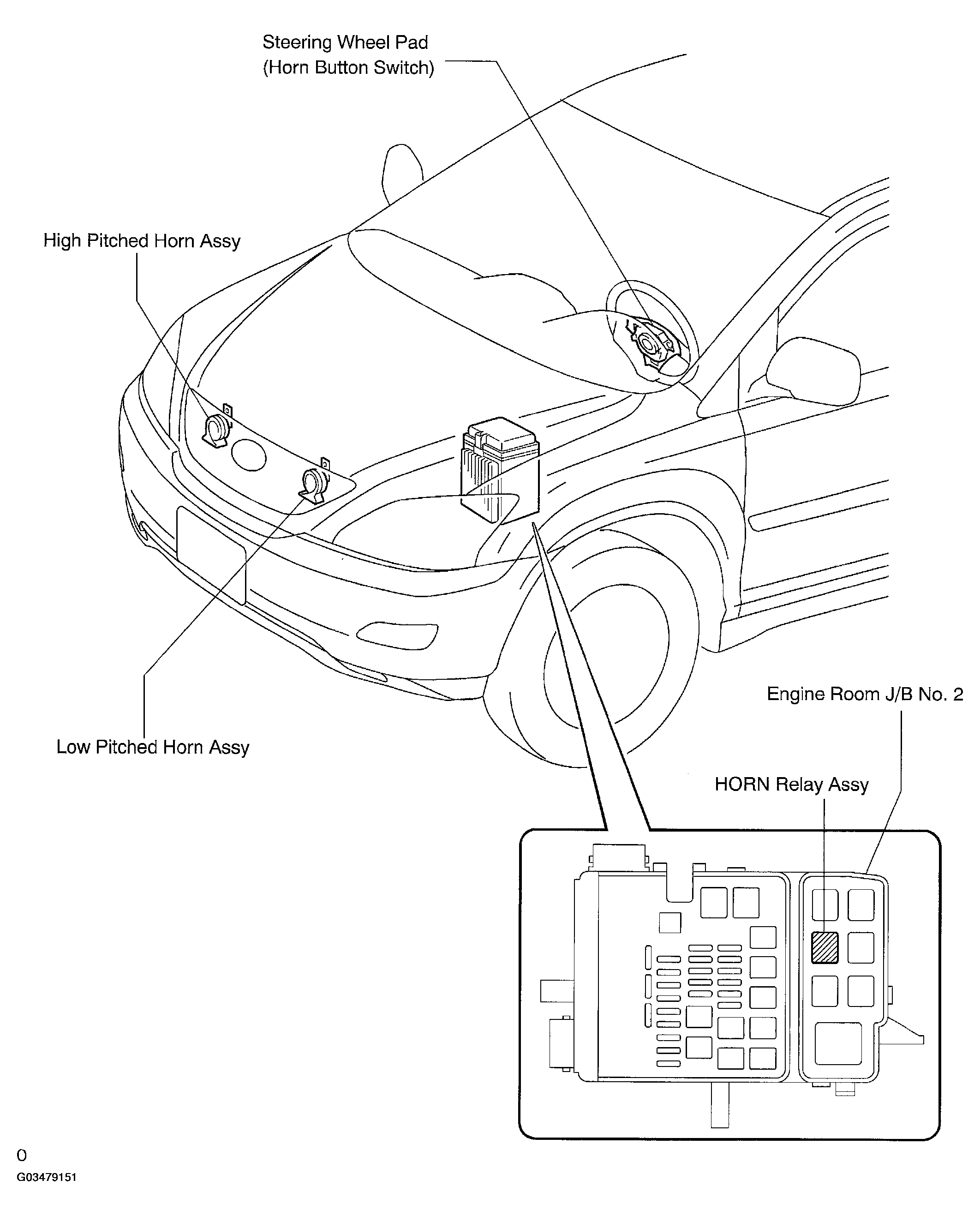

Fig 1: Locating Horn System Components
G03479151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
