Ignition Switch/Steering Lock: Inspection

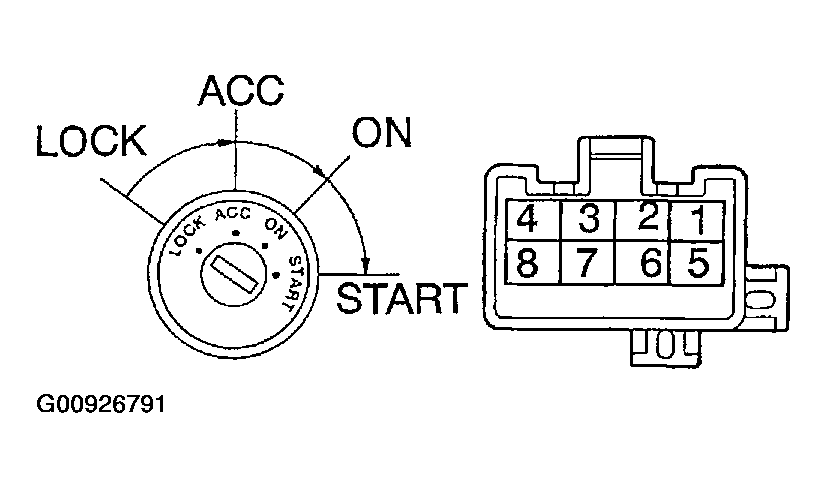

Fig 1: Inspecting Ignition Switch
G00926791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSPECT IGNITION OR STARTER SWITCH ASSY

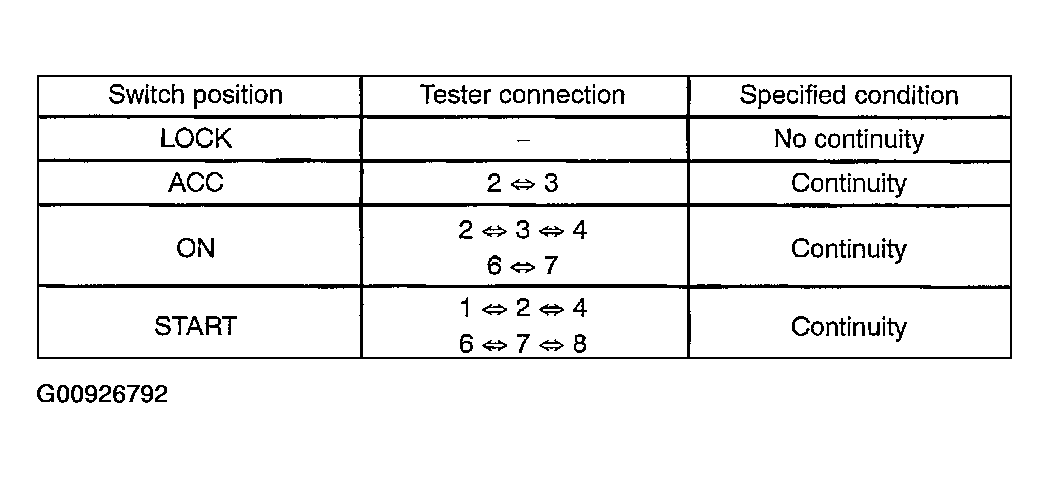

    Fig 2: Terminals Continuity Reference Table
    G00926792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.
