Home >> Lexus >> 2004 >> SC 430 >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat >> Components

Front Seat: Components

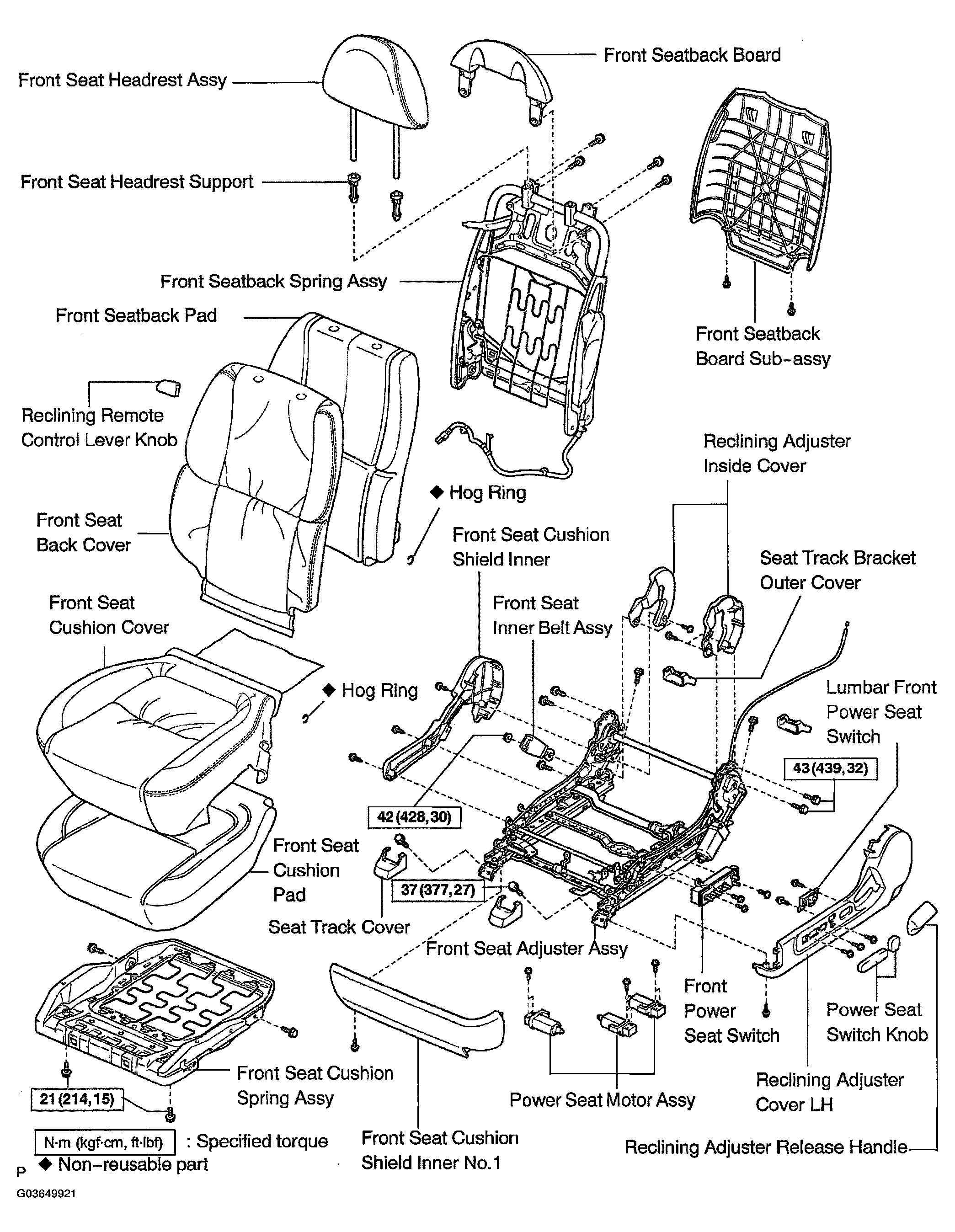

Fig 1: Identifying Front Seat Components
G03649921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
