Problem Symptoms Table

  1. TROUBLESHOOTING FOR EACH PROBLEM SYMPTOM
    NOTE: Confirm the problem symptom and make an inspection depending on the applicable flow chart.

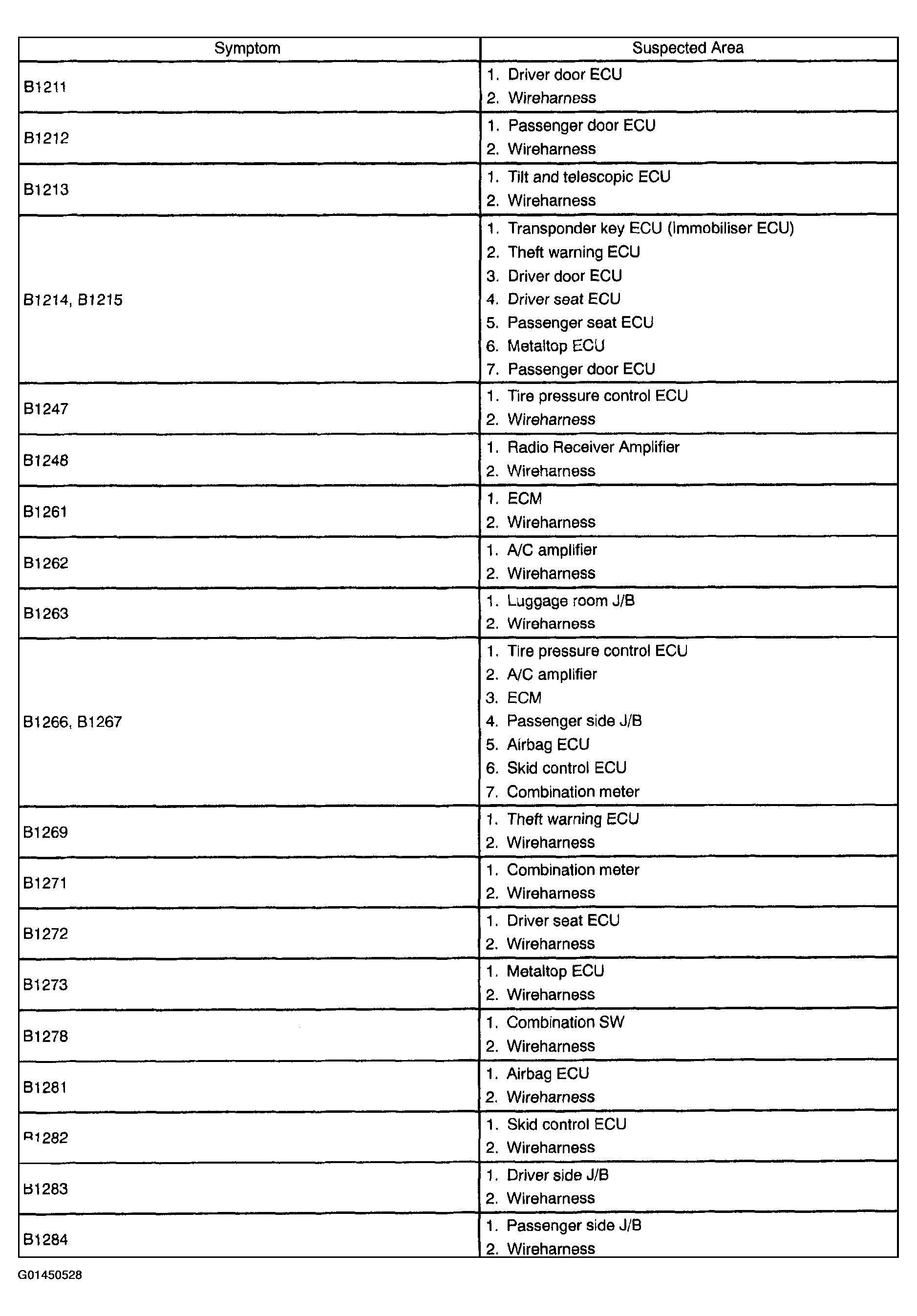

    Fig 1: Problem (DTC) Symptoms Table (1 Of 2)
    G01450528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

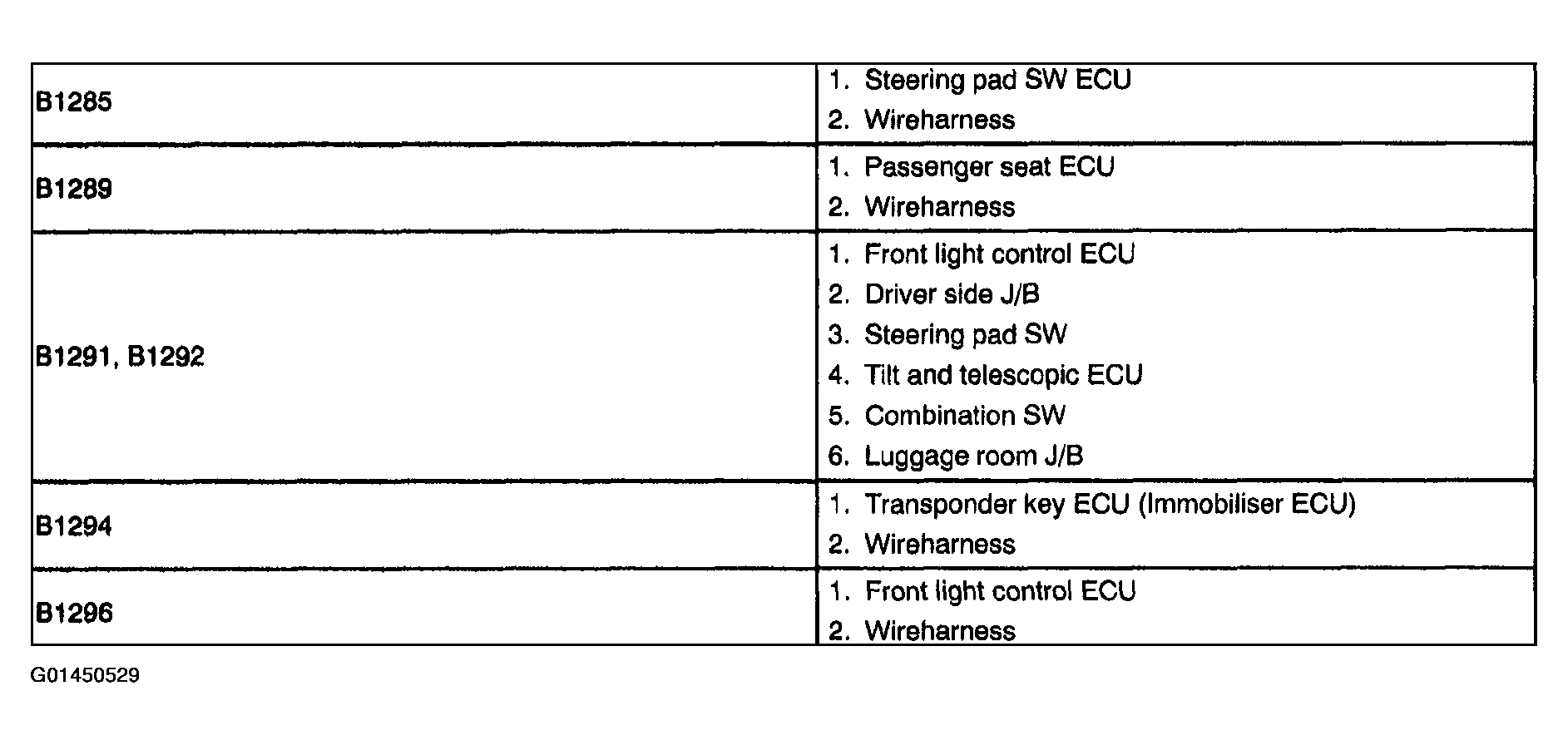

    Fig 2: Problem (DTC) Symptoms Table (2 Of 2)
    G01450529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
