Home >> Lexus >> 2004 >> SC 430 >> Repair and Diagnosis >> Body & Frame >> Windows >> Quarter Power Windows >> Components

Quarter Power Windows: Components

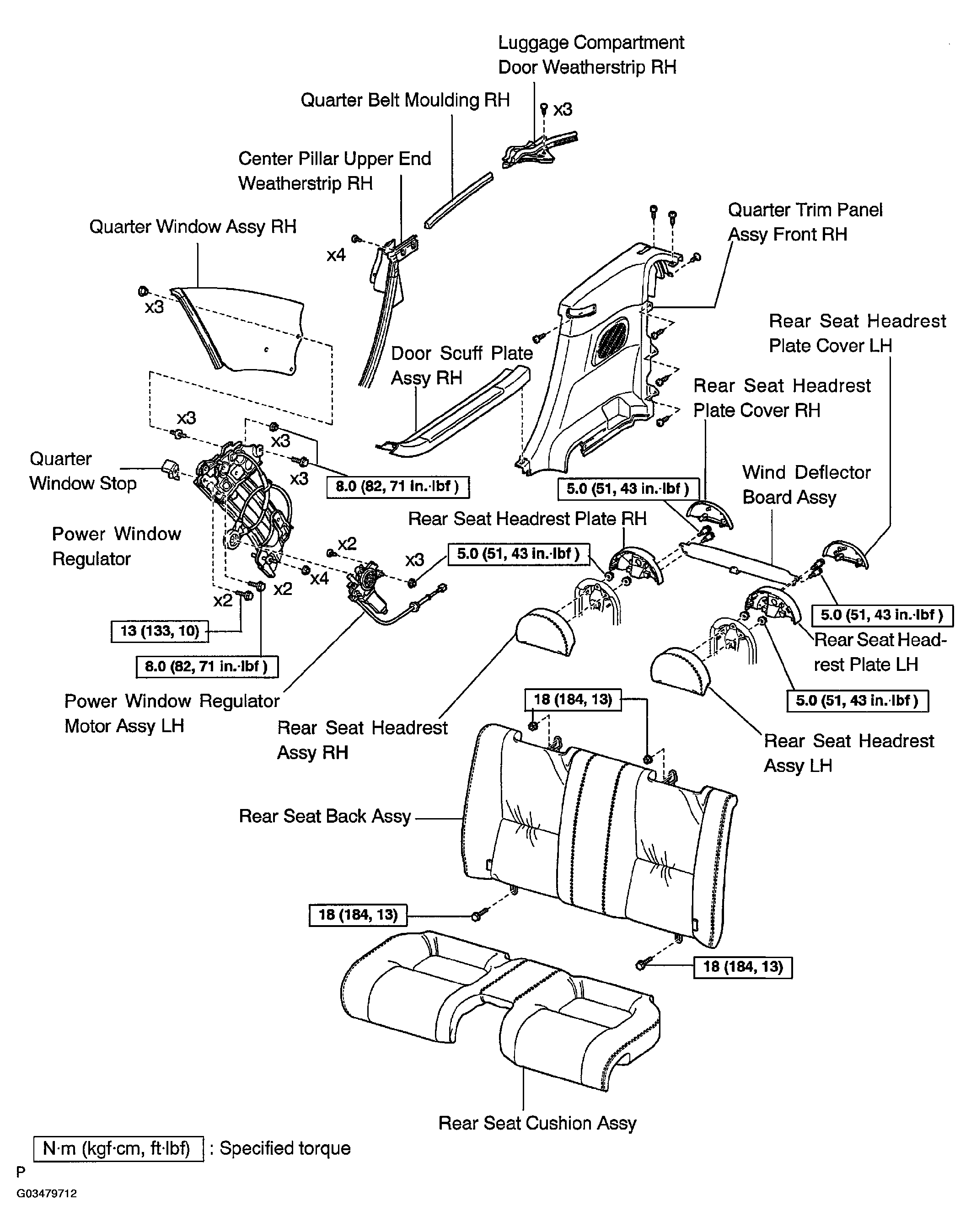

Fig 1: Exploded View Of Quarter Window Assy RH
G03479712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
