lemon-mirror
:
Home
>>
Lexus
>>
2004
>>
SC 430
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Windshield Glass
>>
Components
Windshield Glass: Components

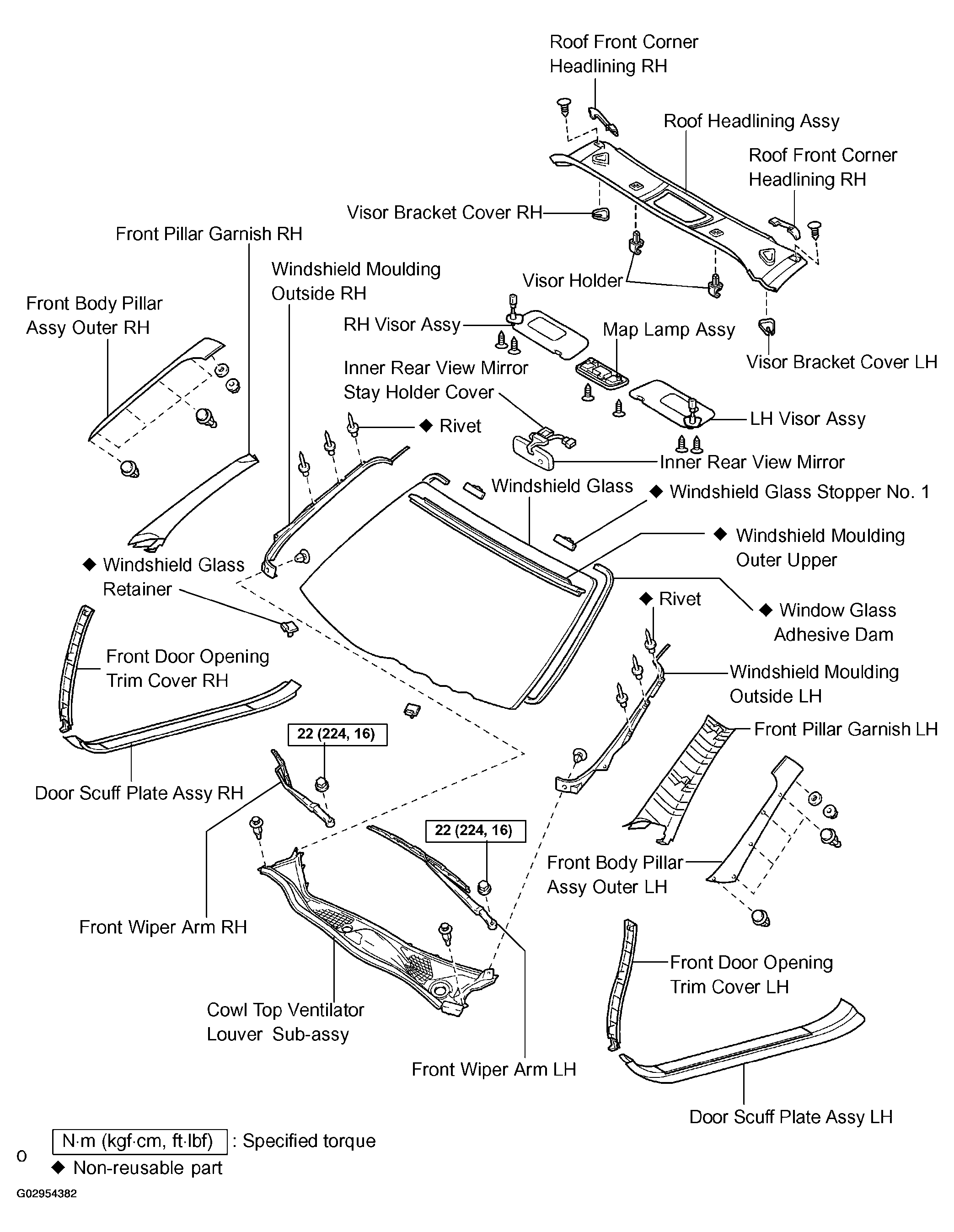

Fig 1: Exploded View Of Windshield Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
