Mode 6 - 2004 LEXUS
>>
LS 430
LS 430

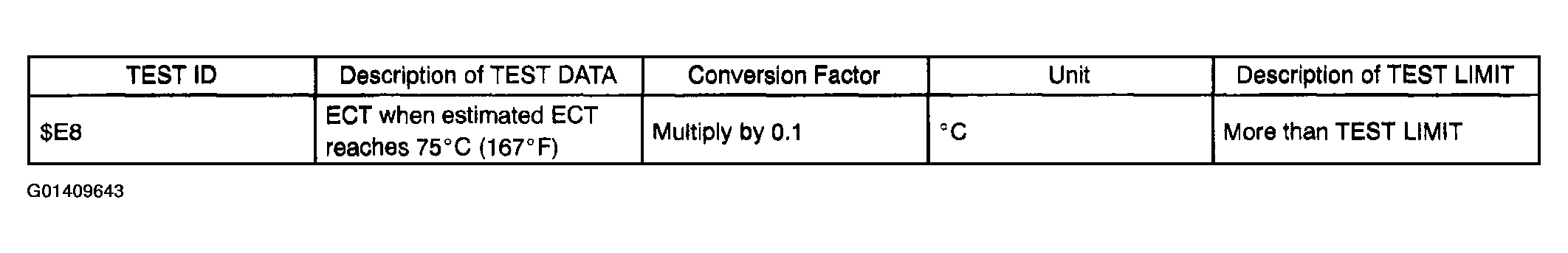

Fig 1: Thermostat Monitor Result Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

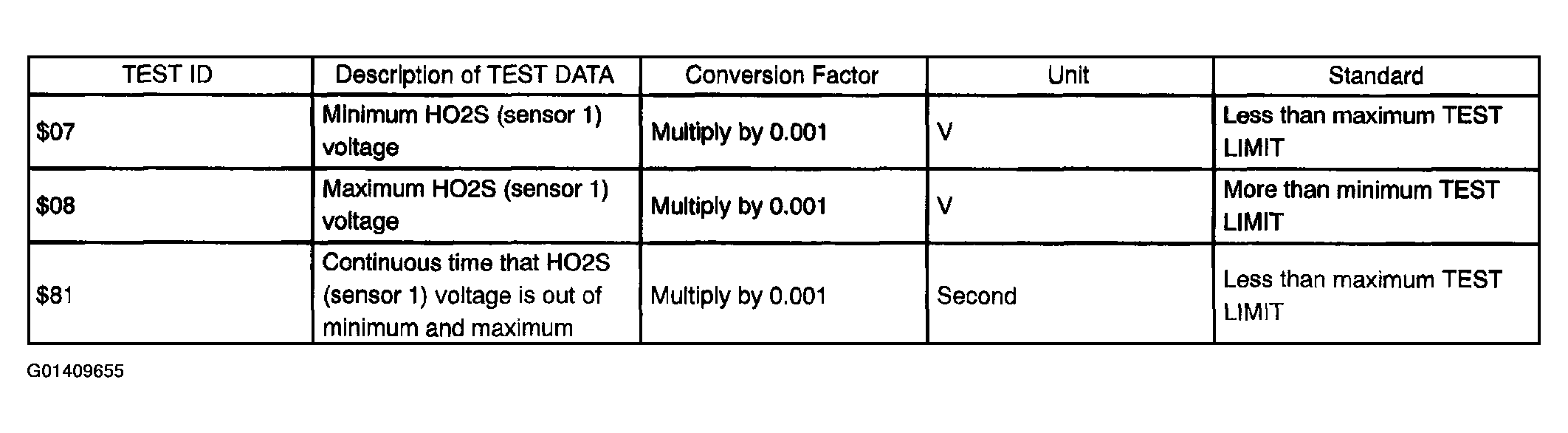

Fig 2: HO2S (Sensor 1) Voltage Monitor Result Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

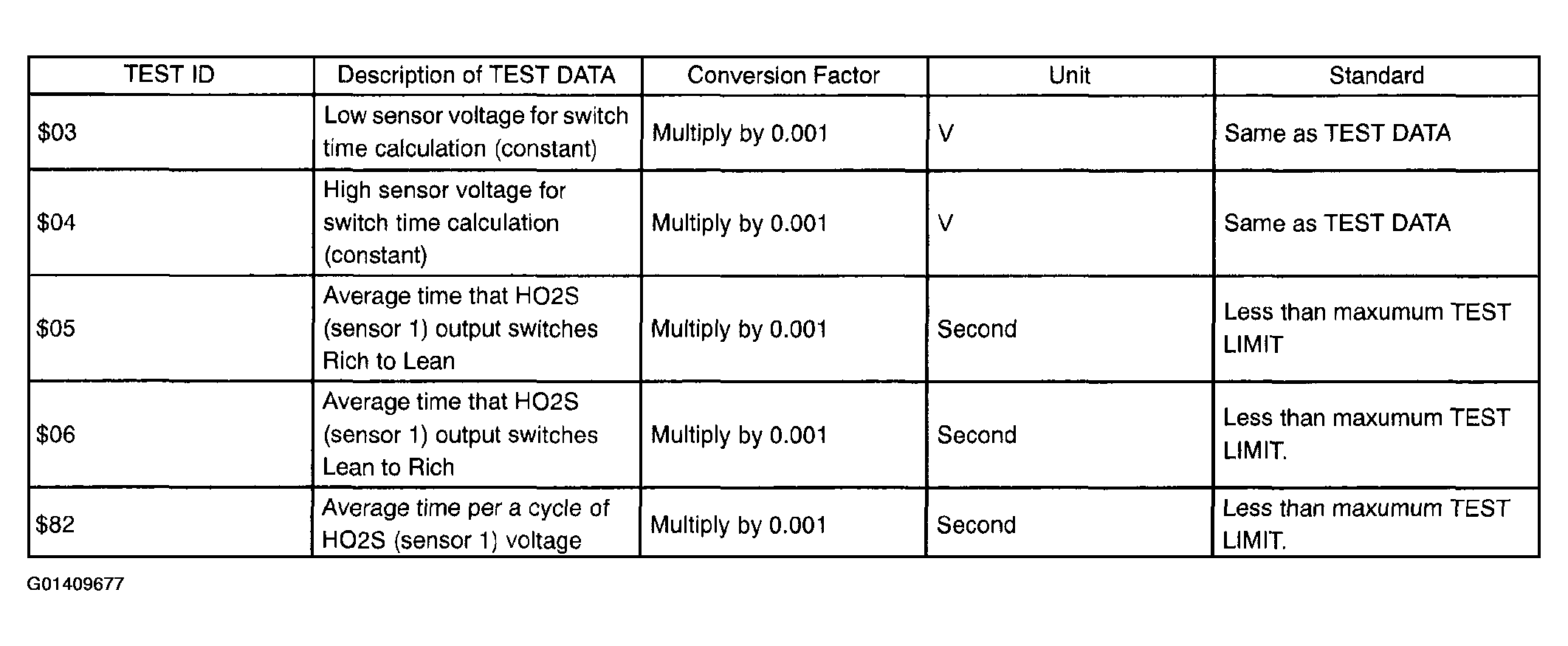

Fig 3: HO2S (Sensor 1) Slow Slope Monitor Result Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

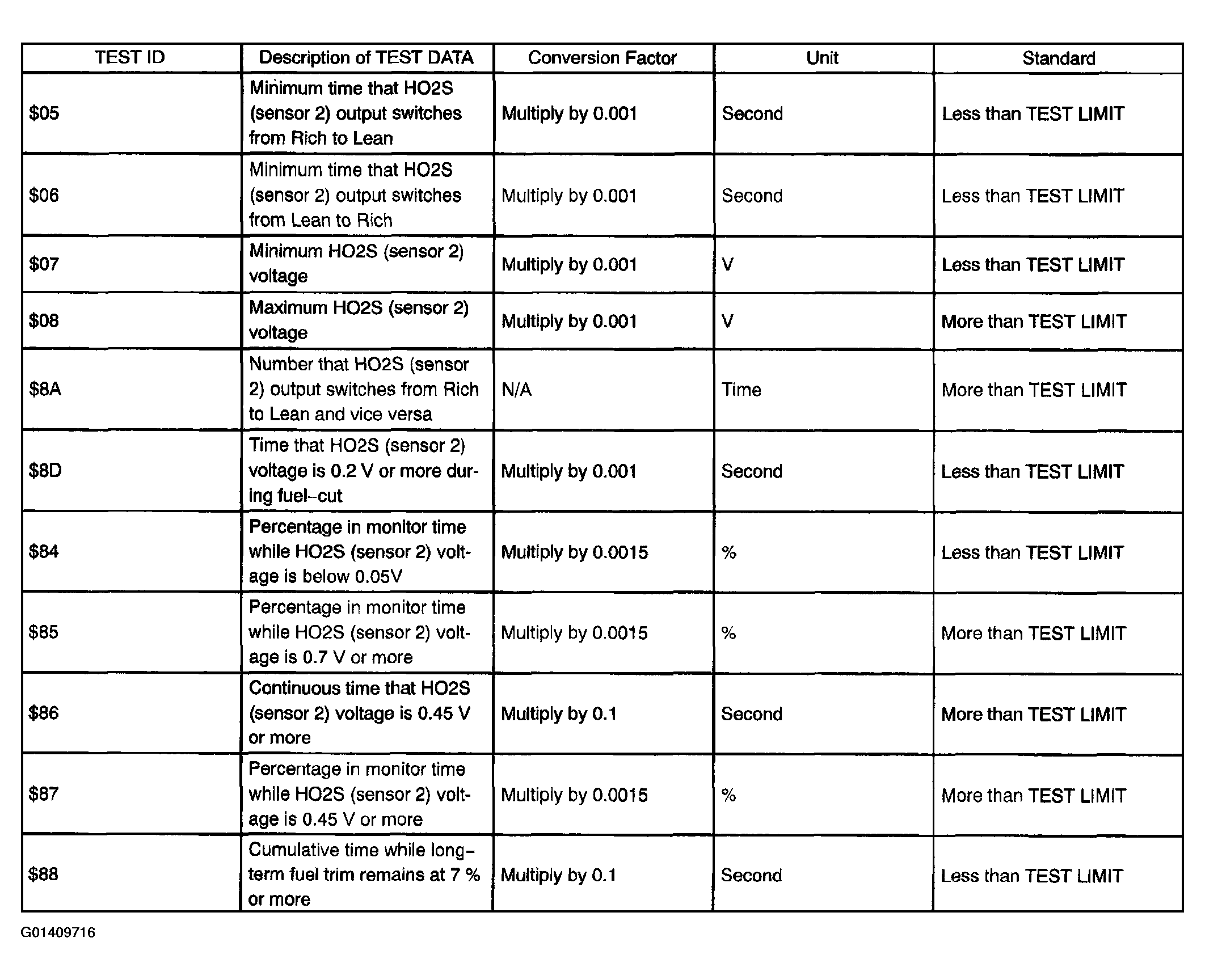

Fig 4: HO2S (Sensor 2) Monitor Result Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

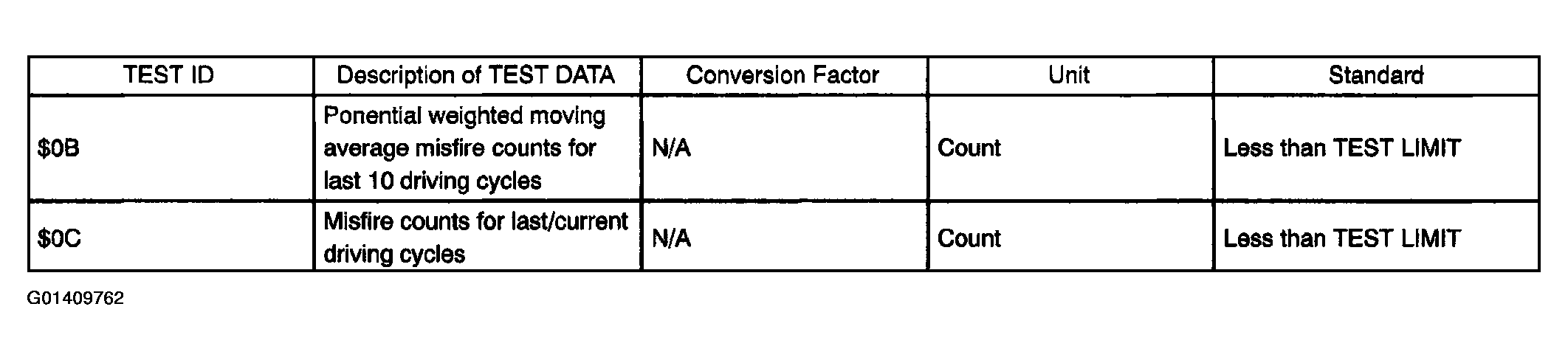

Fig 5: Misfire Monitor Result Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

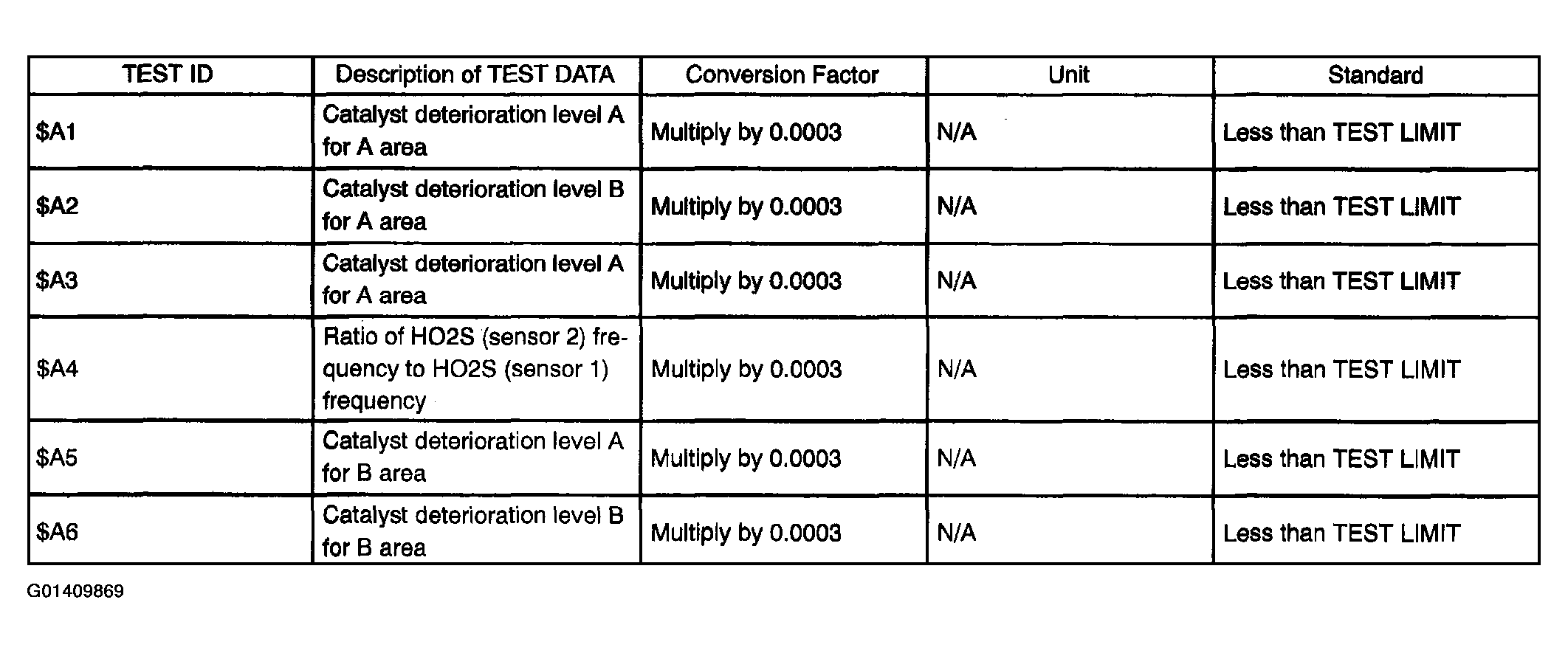

Fig 6: Catalyst Monitor Result Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

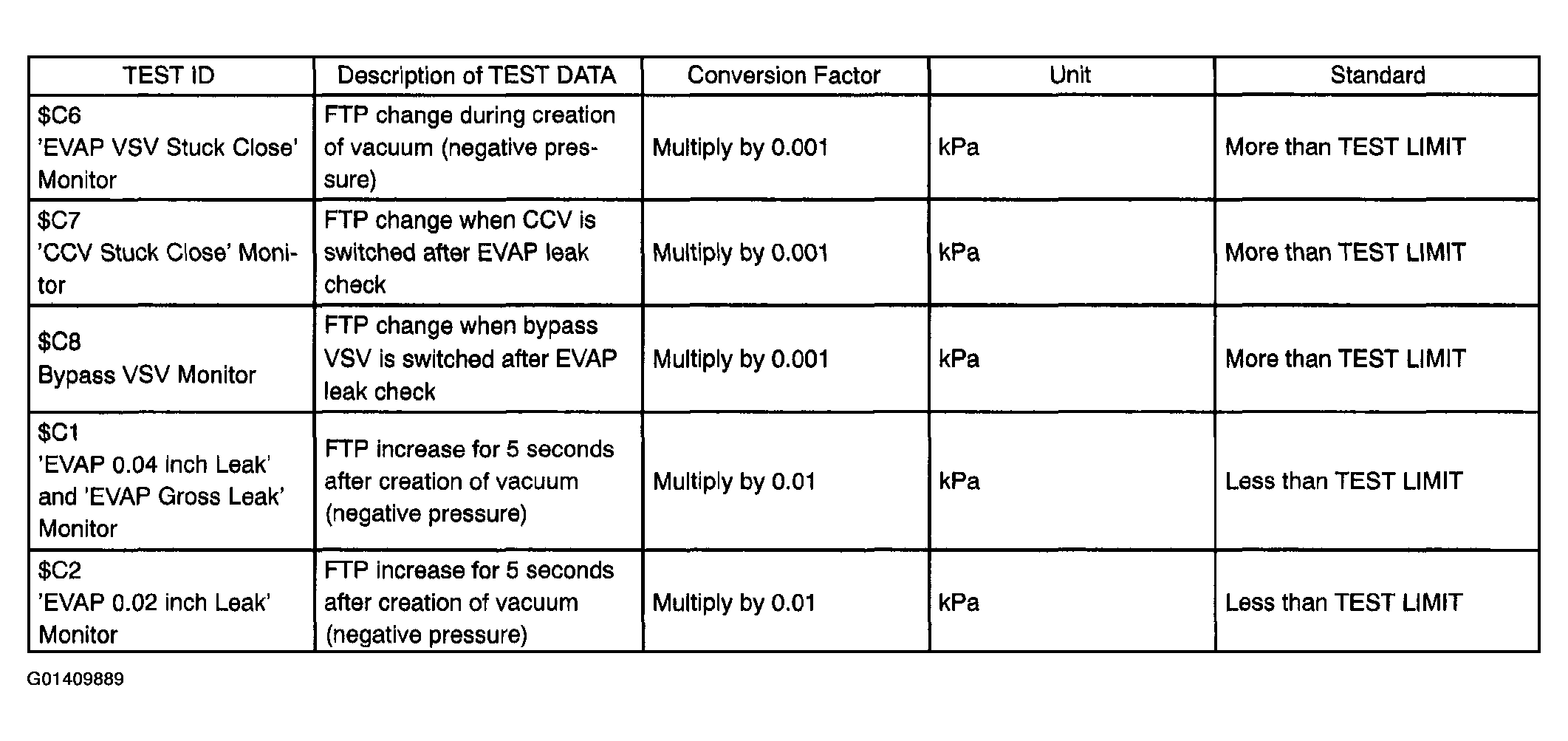

Fig 7: EVAP Monitor Result Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
