Lx 470

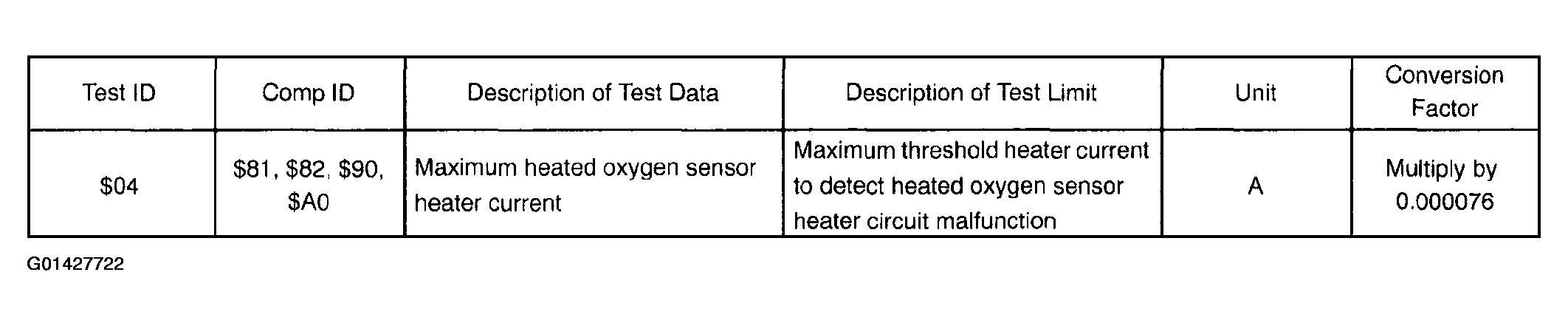

Fig 1: Oxygen Sensor Heater Monitor Result (Mode 06 Data) Chart
G01427722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

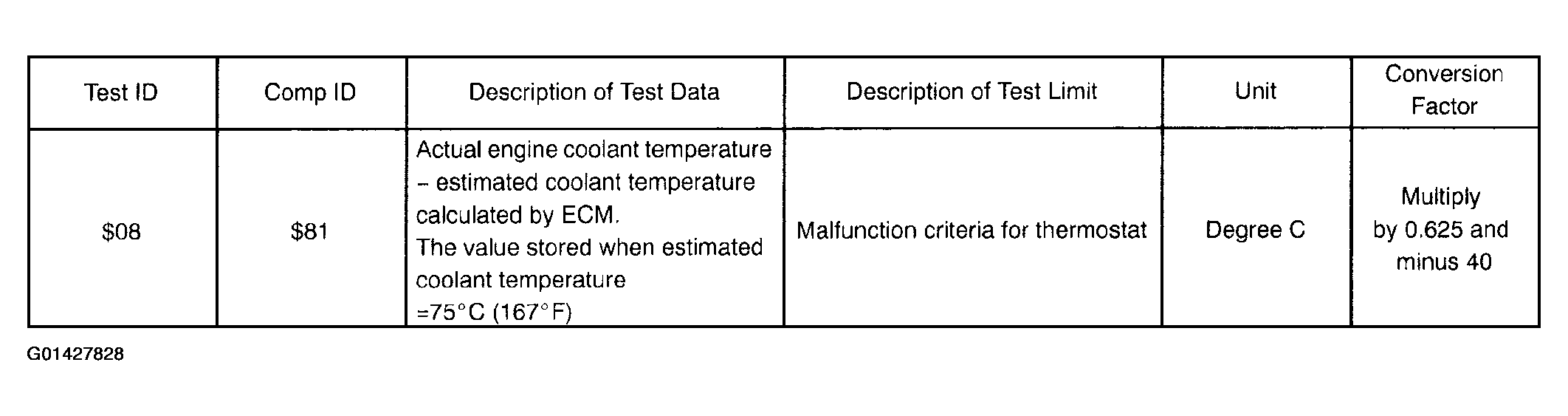

Fig 2: Thermostat Monitor Result (Mode 06 Data) Chart
G01427828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

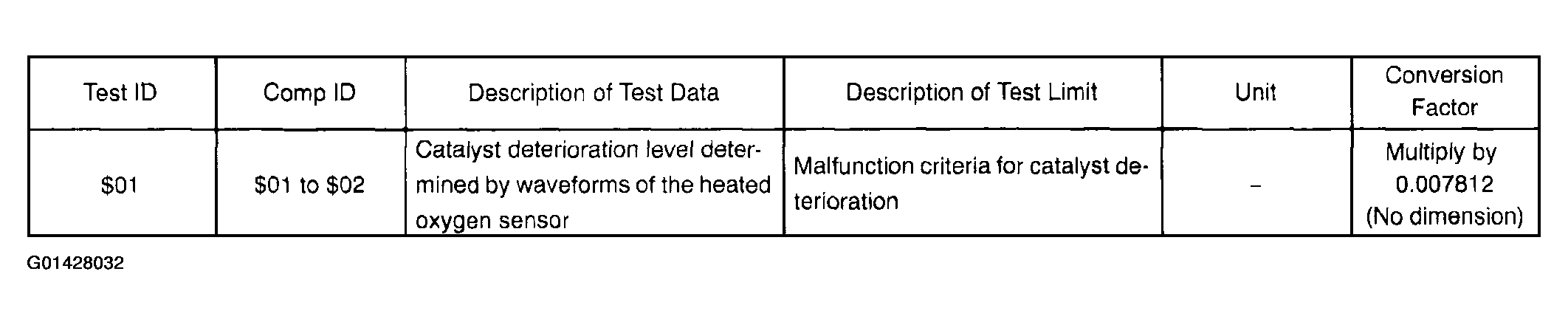

Fig 3: Catalyst Monitor Result (Mode 06 Data) Chart
G01428032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

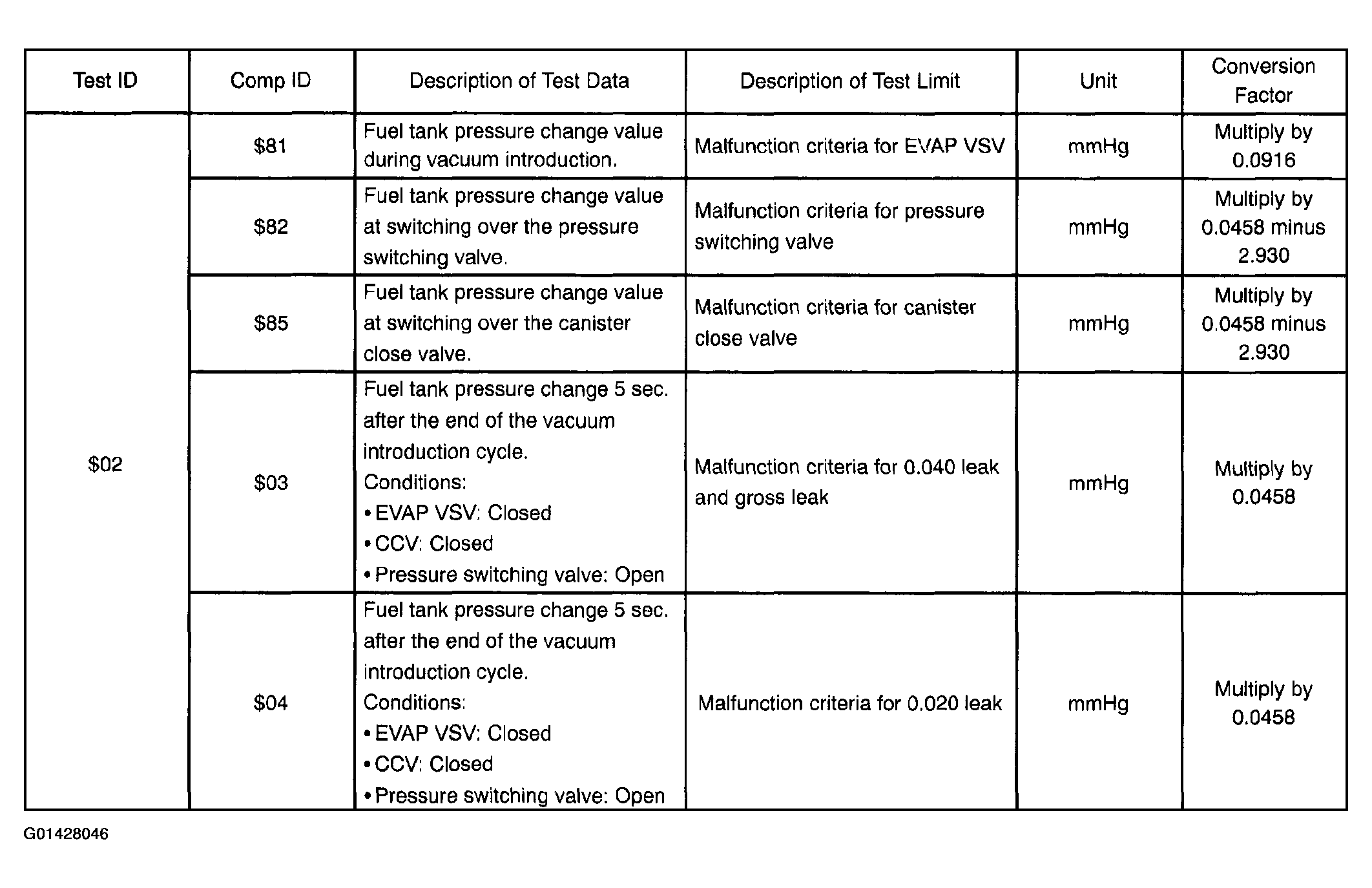

Fig 4: EVAP Monitor Result (Mode 06 Data) Reference Chart
G01428046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
