Mode 6 - 2004 LEXUS
>>
RX 330
RX 330

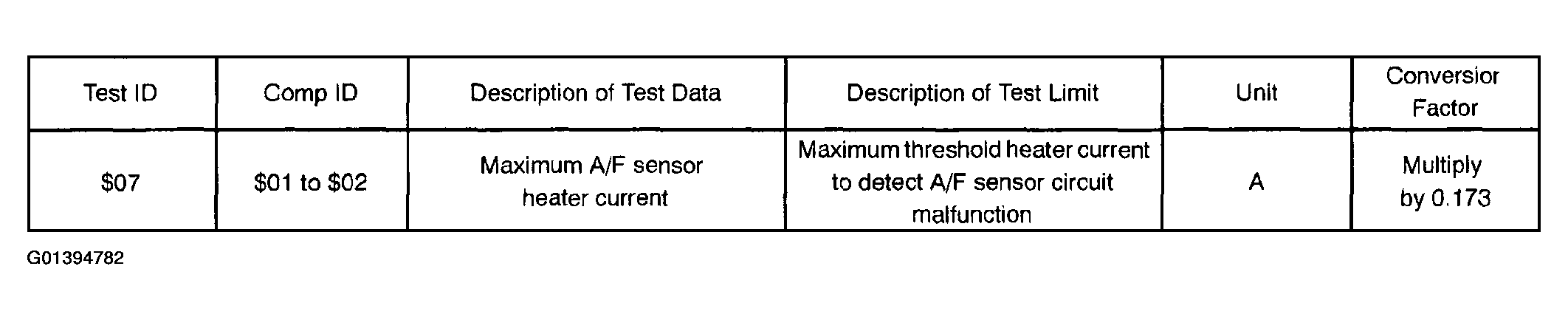

Fig 1: A/F Sensor Heater Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

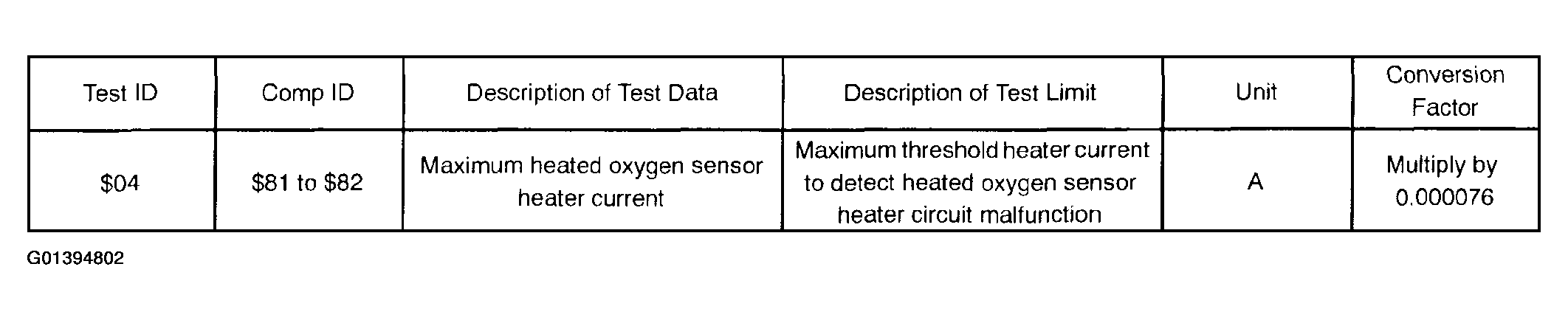

Fig 2: Oxygen Sensor Heater Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

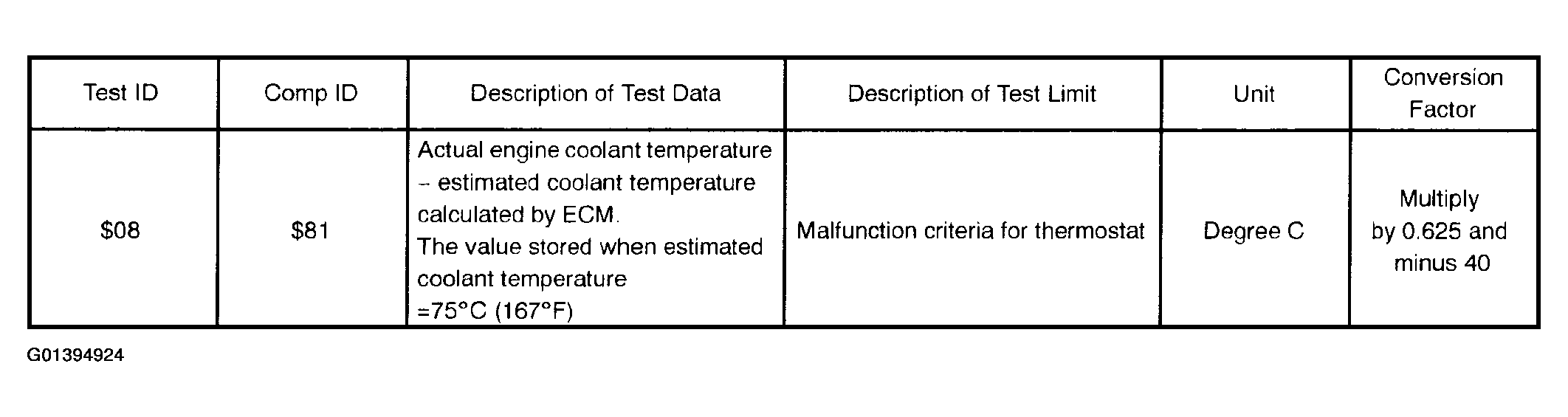

Fig 3: Thermostat Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

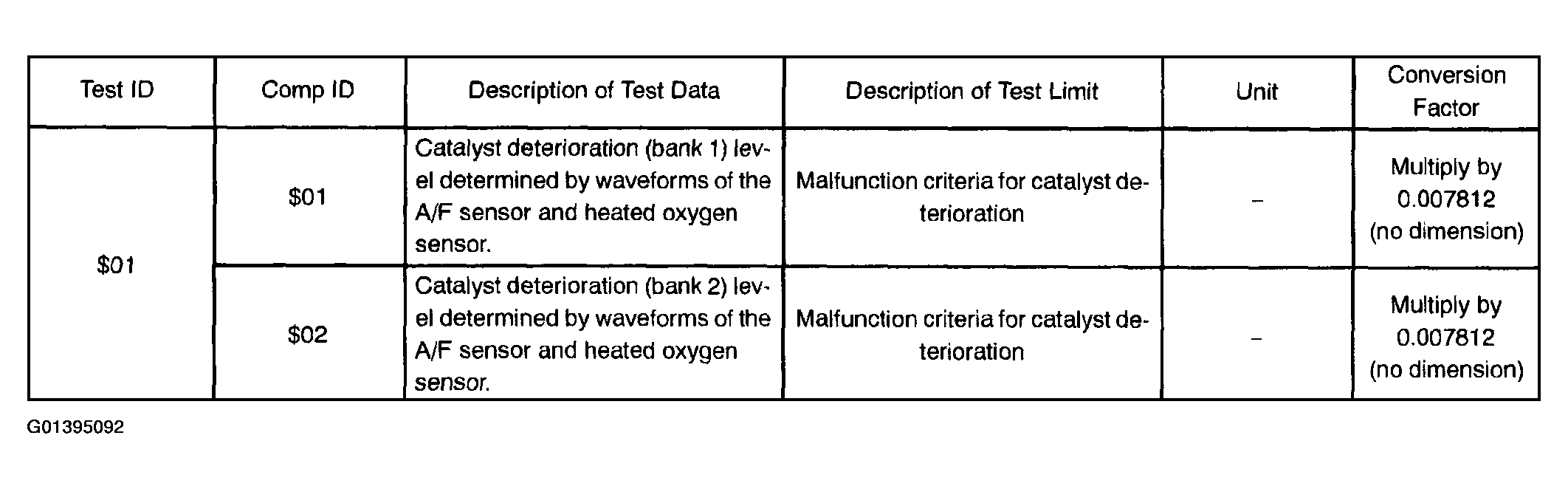

Fig 4: Catalyst Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

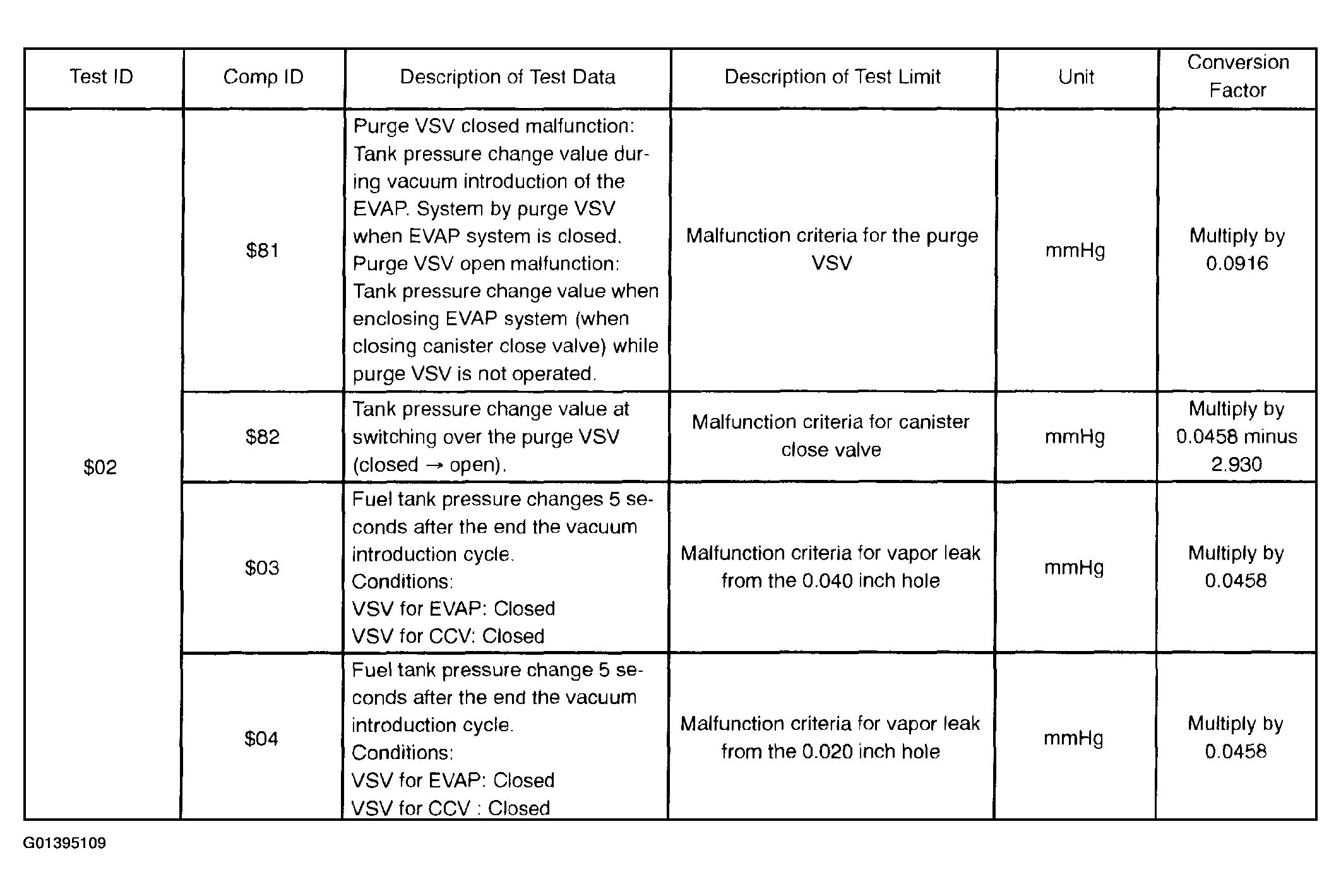

Fig 5: EVAP Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

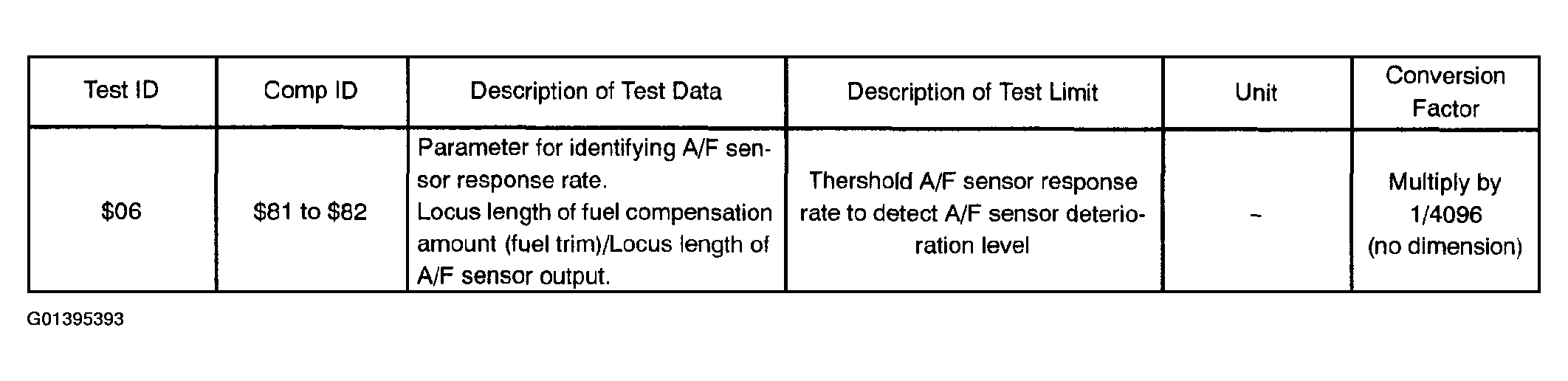

Fig 6: A/F Sensor Monitor Result (Mode 06 Data)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
