Home >> Lexus >> 2004 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> ECM >> Components

Engine Control System: ECM: Components

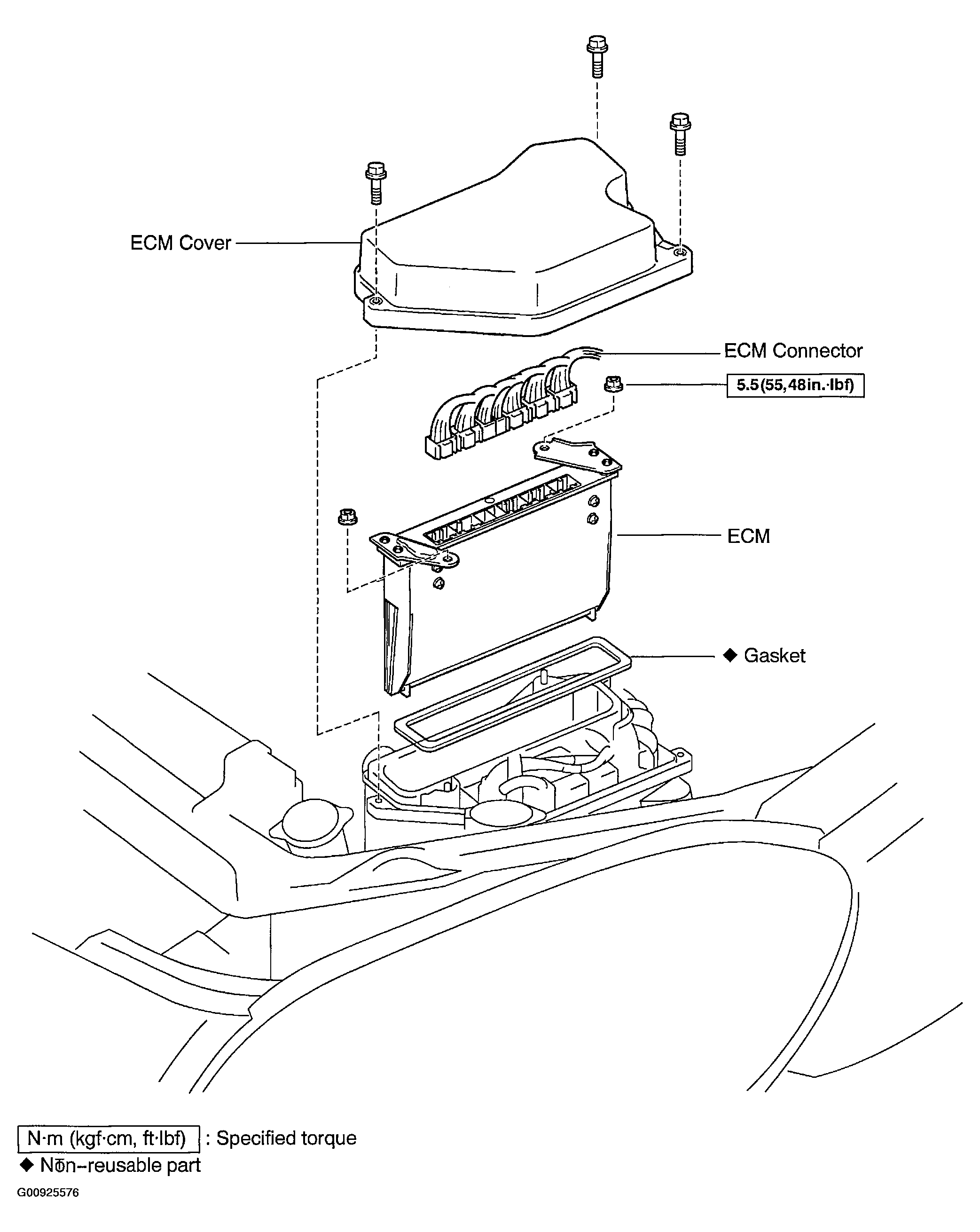

Fig 1: Identifying Components Of ECM
G00925576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
