Home >> Lexus >> 2004 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> System >> SFI System - Diagnosis >> Location

SFI System - Diagnosis: Location

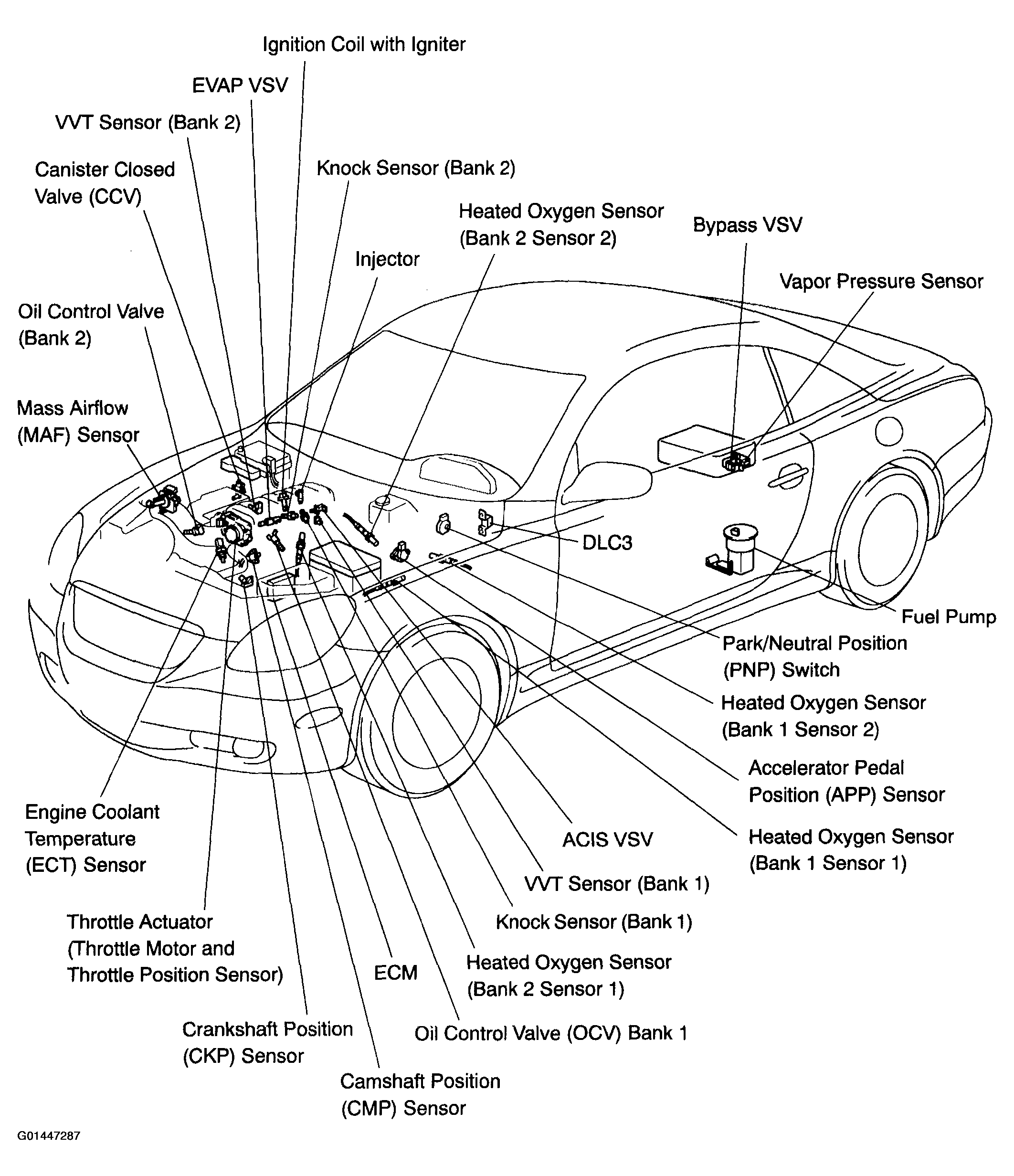

Fig 1: Identifying SFI System Part Location
G01447287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
