Waveform 5

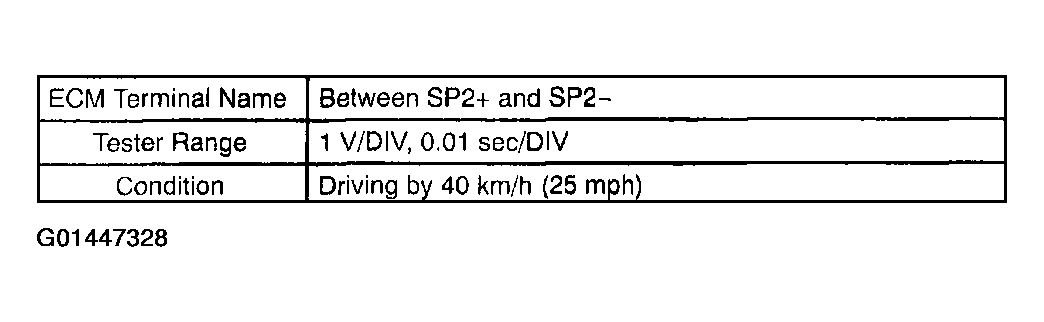

Fig 1: Throttle Actuator Waveform Representation Table 5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

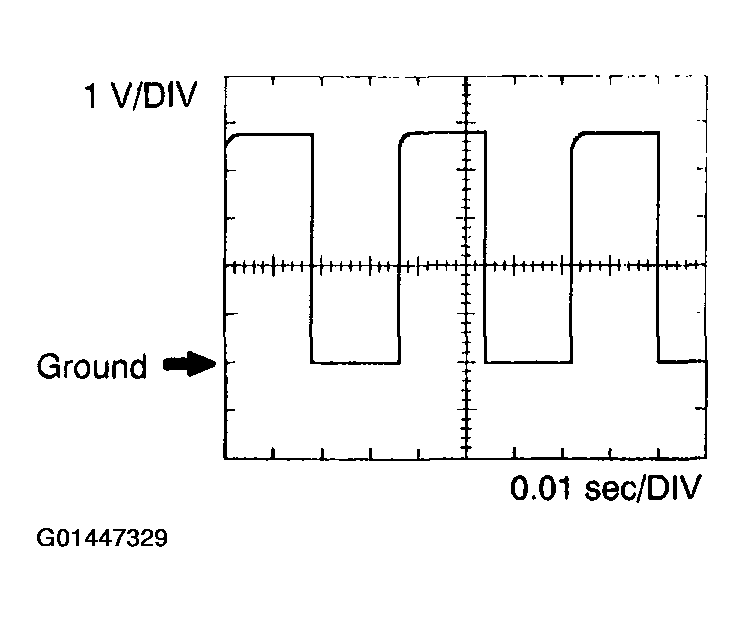

Speed signal

Fig 2: Throttle Actuator Waveform Representation (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as vehicle speed increases.
