Vane Pump ASSY: Components

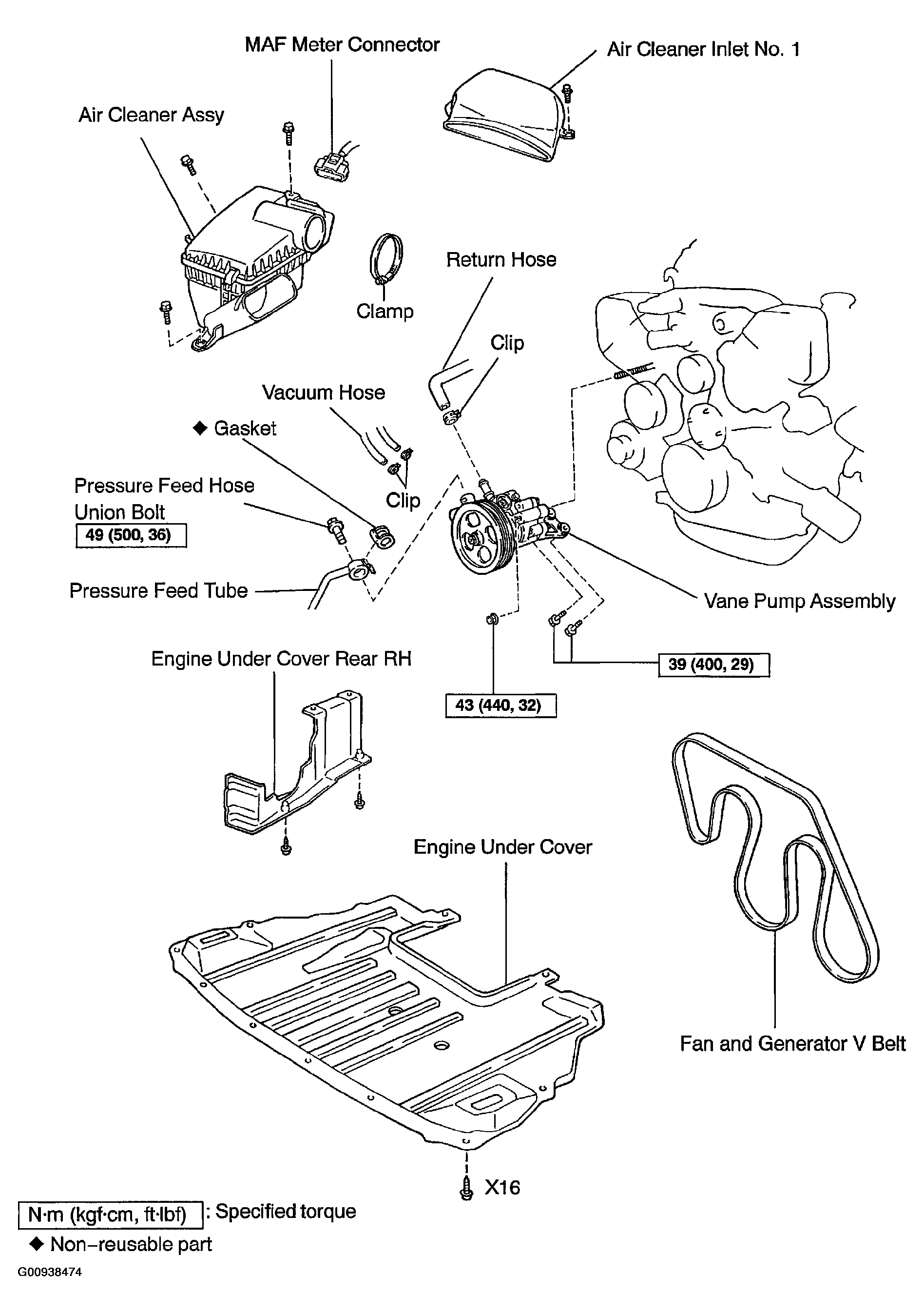

Fig 1: Identifying Components Of Vane Pump Assy (1 Of 2)
G00938474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

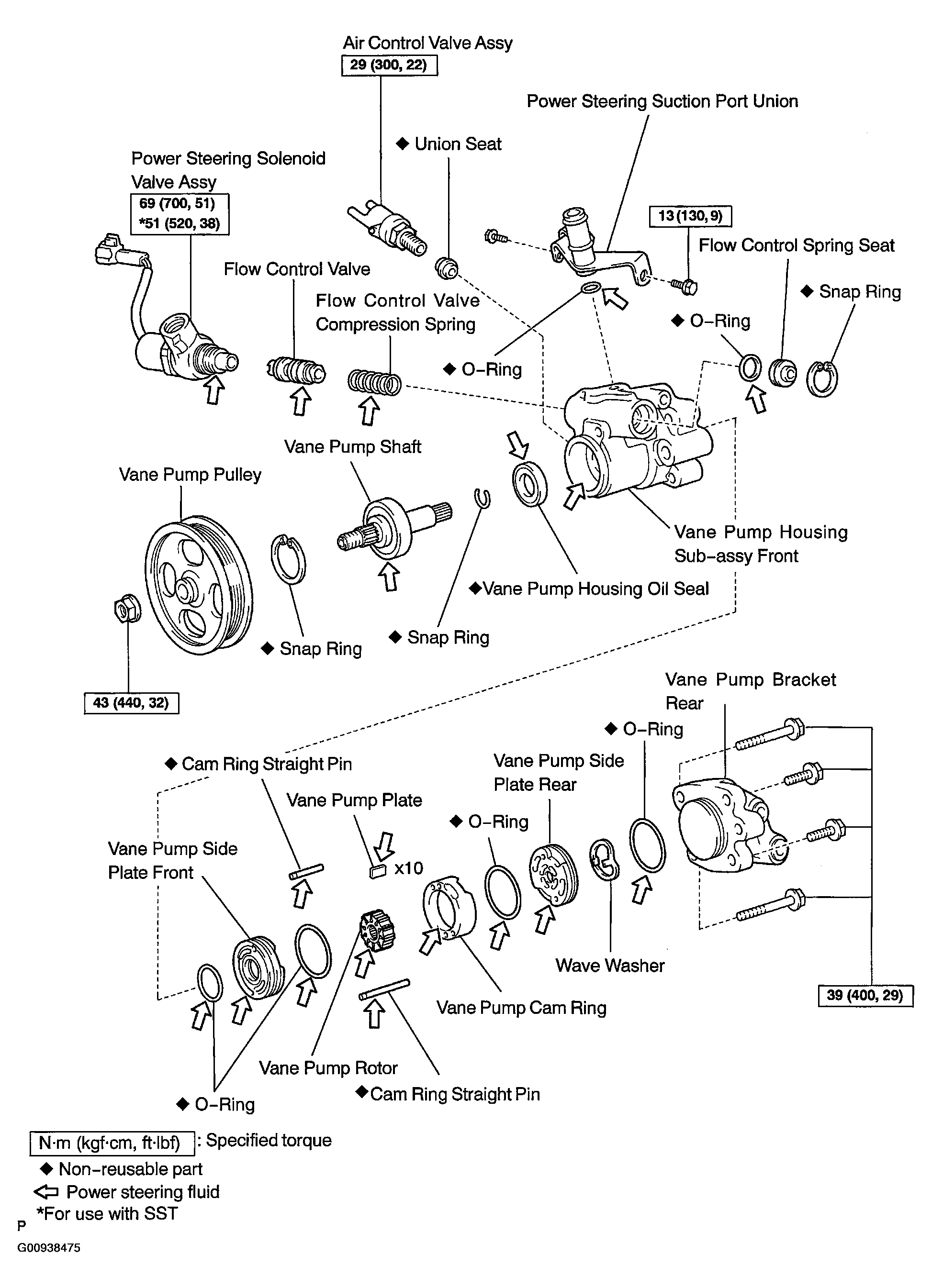

Fig 2: Identifying Components Of Vane Pump Assy (2 Of 2)
G00938475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
