Home >> Lexus >> 2005 >> ES 330 >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS/Mirror >> Back Window Glass >> Components

Back Window Glass: Components

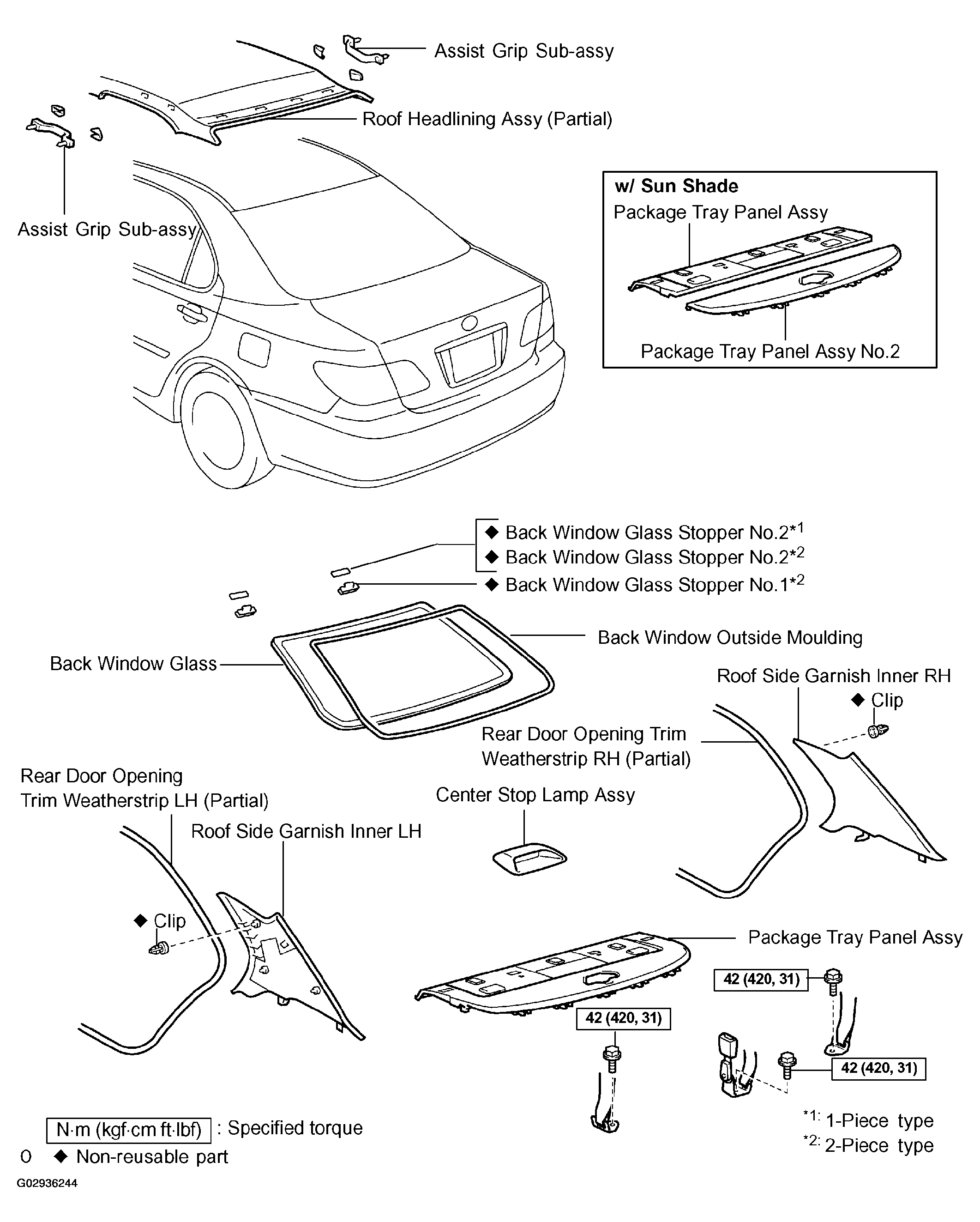

Fig 1: Identifying Back Window Glass Components
G02936244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
