Home >> Lexus >> 2005 >> ES 330 >> Repair and Diagnosis >> Engine Mechanical >> Exhaust >> Engine Exhaust Assembly >> Components

Engine Exhaust Assembly: Components

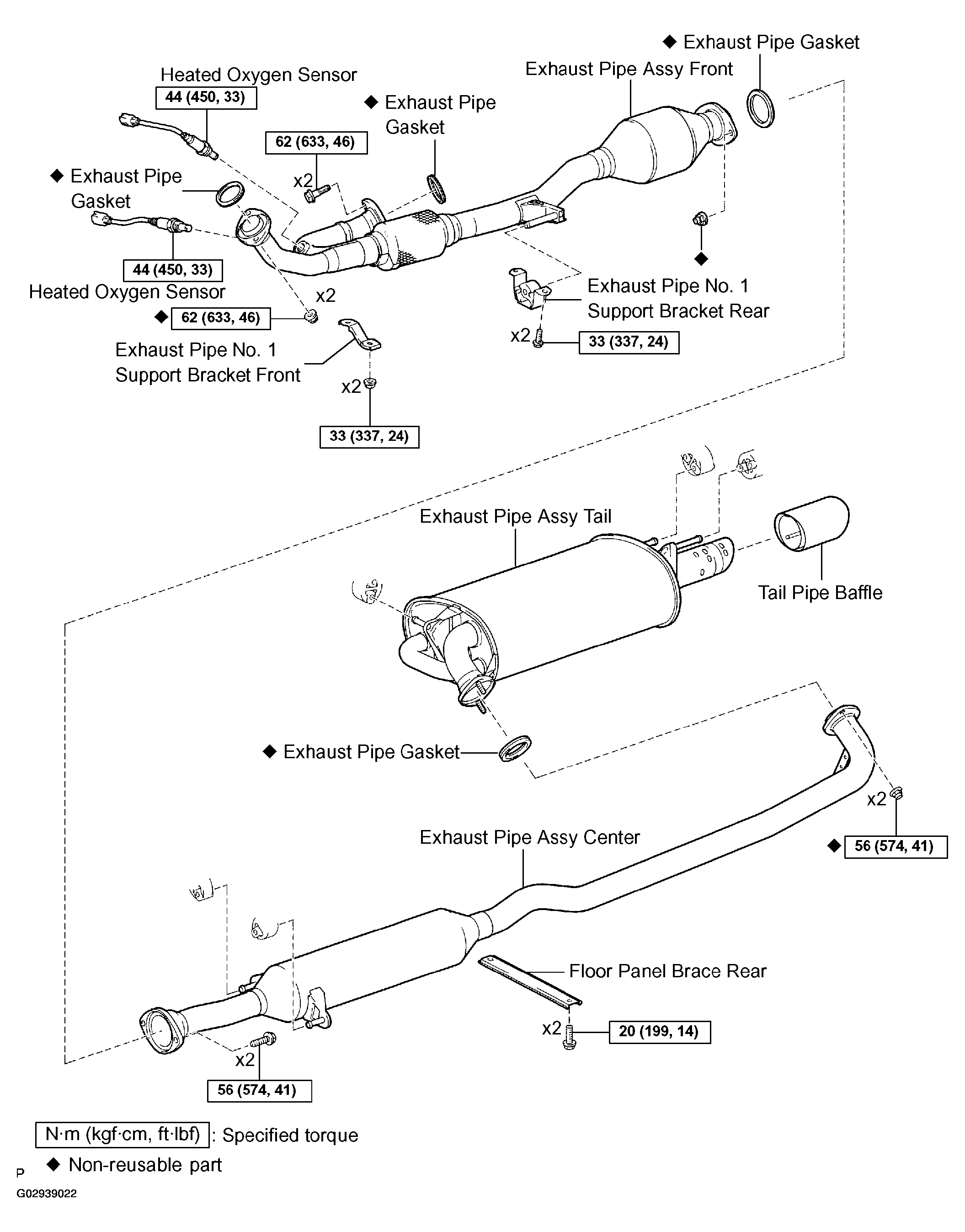

Fig 1: Identifying Exhaust Pipe Assembly Components

G02939022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
