Home >> Lexus >> 2005 >> ES 330 >> Repair and Diagnosis >> Engine Performance >> System >> SFI System - Diagnostics >> Active Control Engine Mount >> Location

Active Control Engine Mount: Location

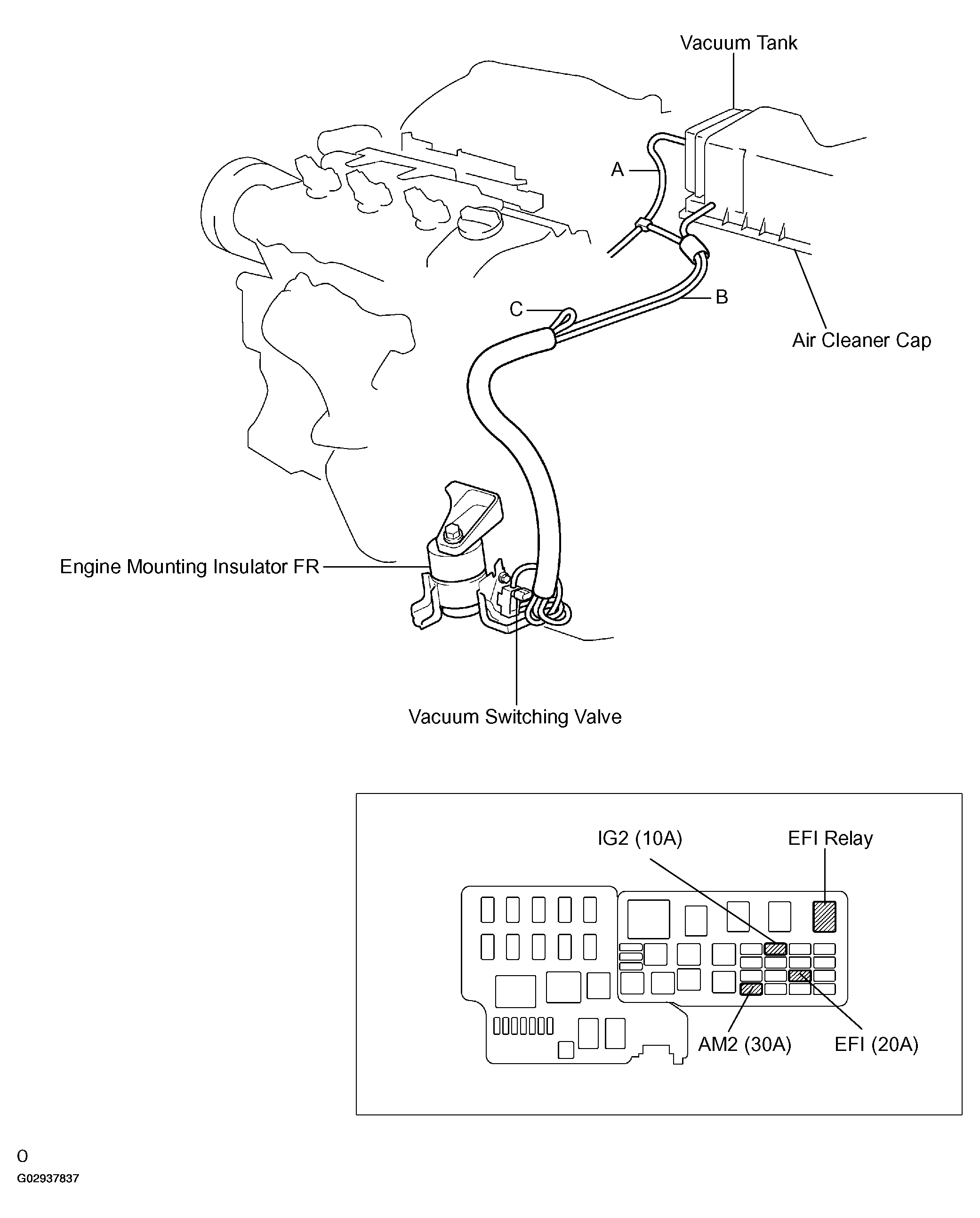

Fig 1: Locating Active Control Engine Mount Components

G02937837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
