Home >> Lexus >> 2005 >> ES 330 >> Repair and Diagnosis >> Engine Performance >> System >> SFI System - Diagnostics >> Active Control Engine Mount >> Wiring Diagram

Active Control Engine Mount: Wiring Diagram

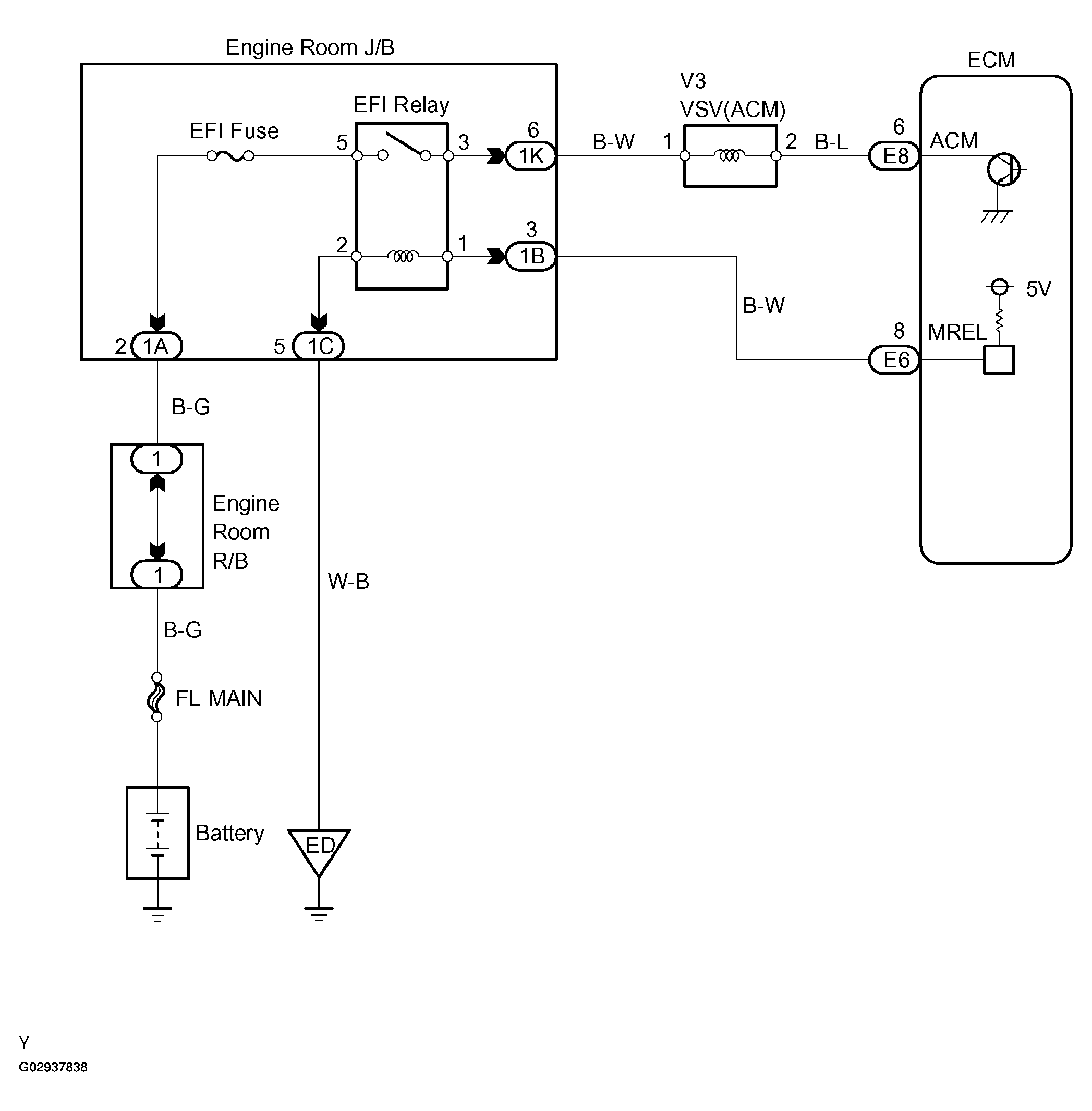

Fig 1: Wiring Diagram - ACM System

G02937838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
