Home >> Lexus >> 2005 >> ES 330 >> Repair and Diagnosis >> General Information >> OEM General Information >> Service Specifications >> Engine Mechanical >> Torque Specifications

Torque Specifications

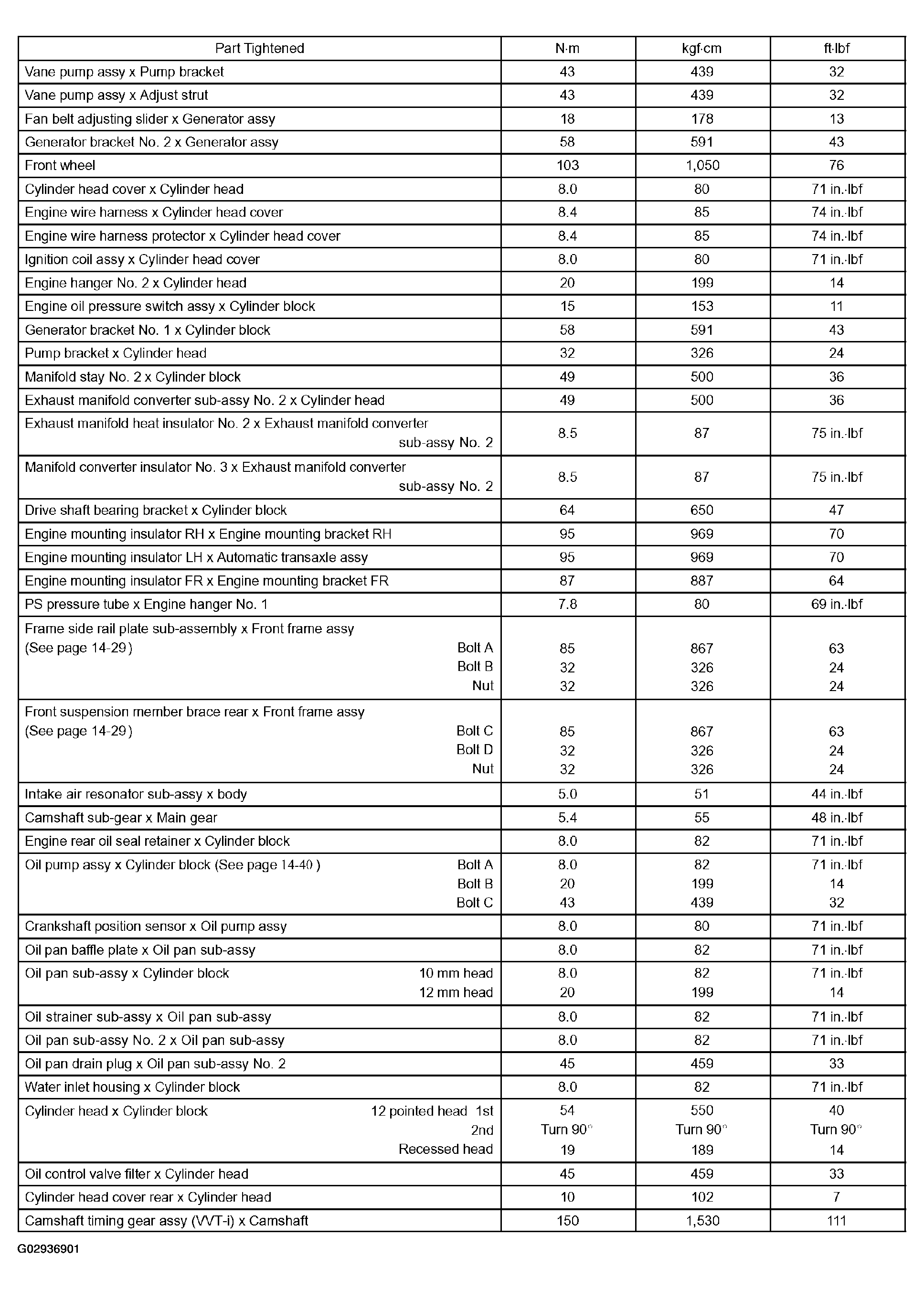

Fig 1: Engine Mechanical Torque Specifications Table
G02936901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

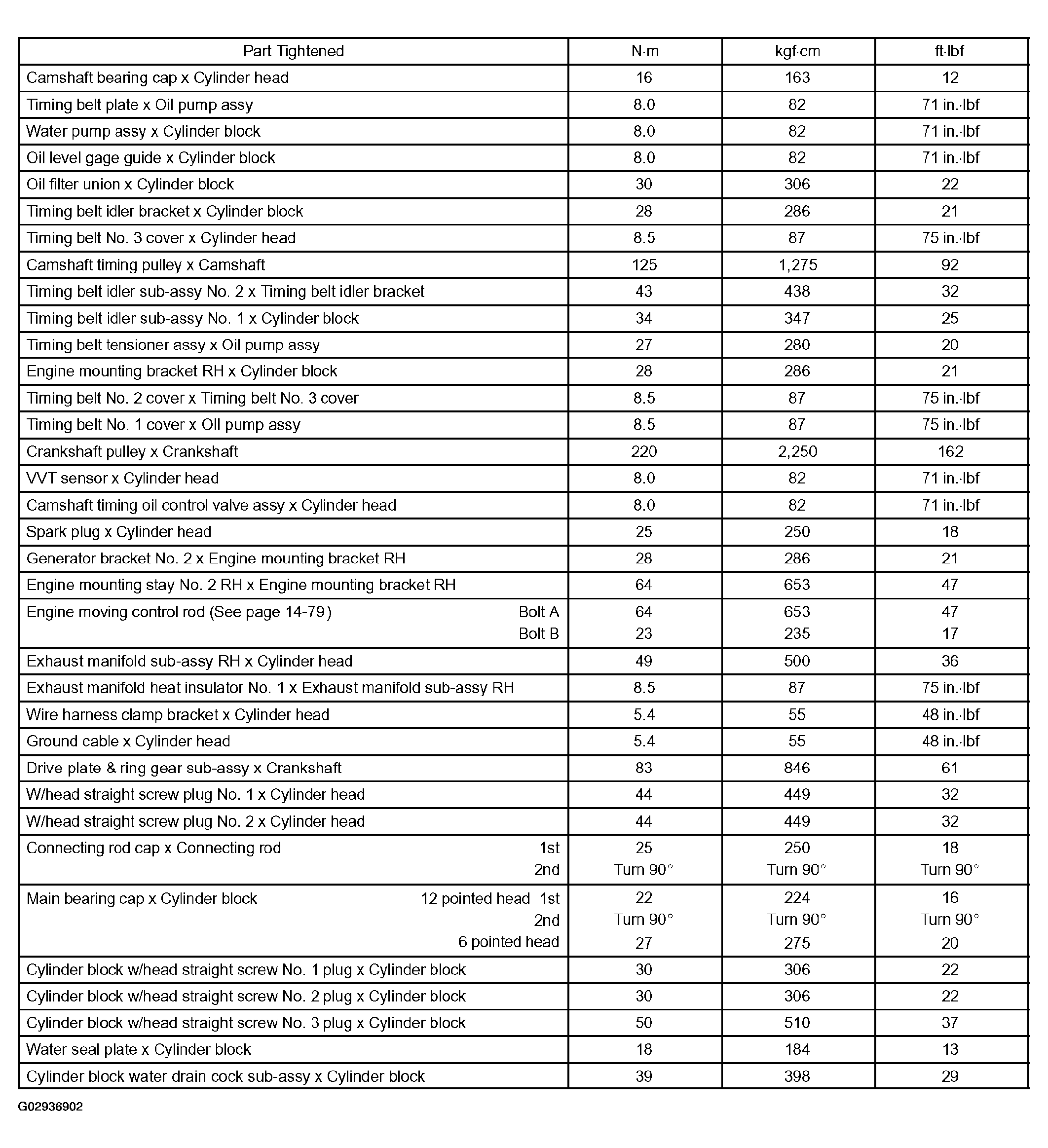

Fig 2: Engine Mechanical Torque Specifications Table
G02936902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
