Home >> Lexus >> 2005 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition (3UZ-FE) >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

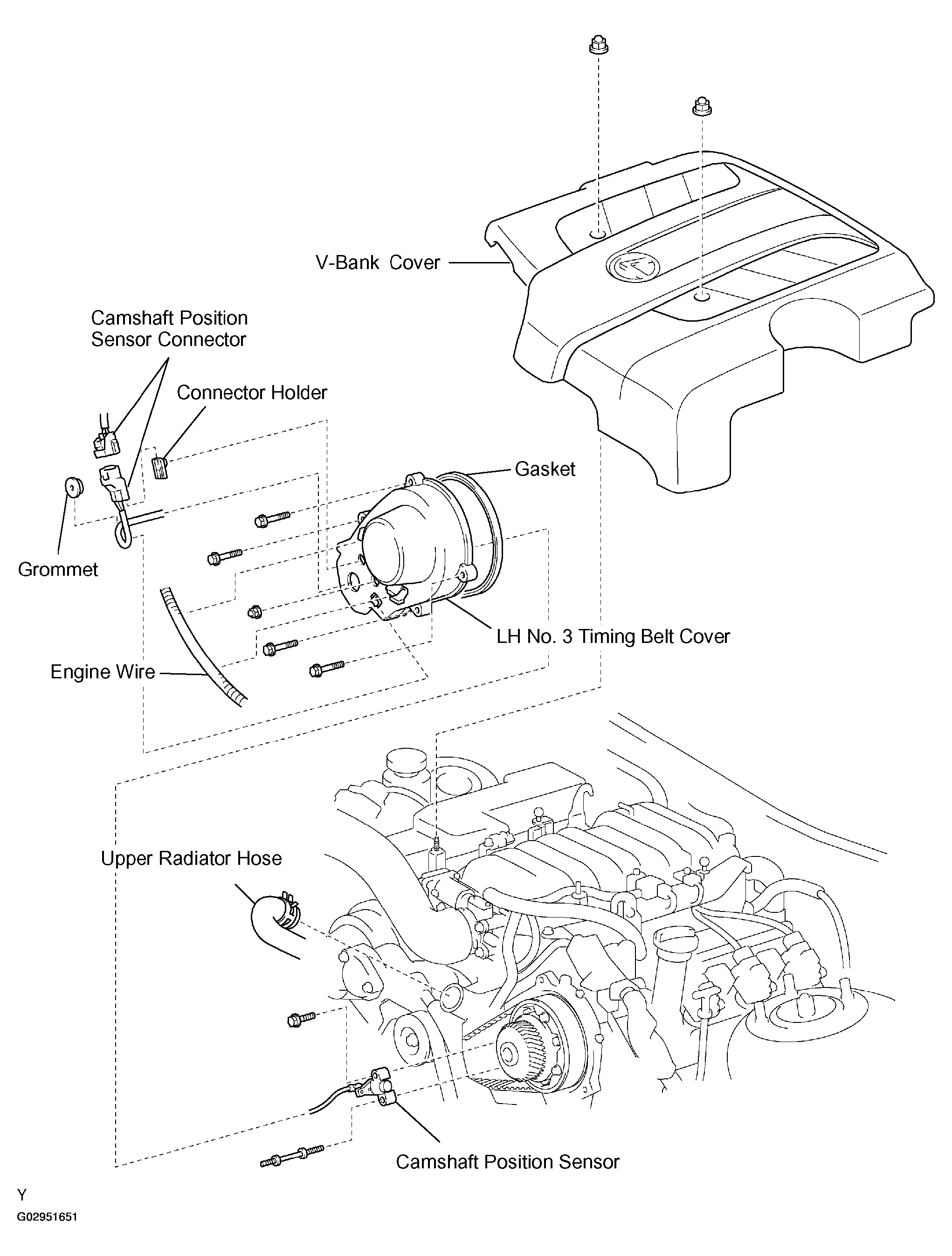

Fig 1: Identifying Camshaft Position Sensor Components

G02951651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
